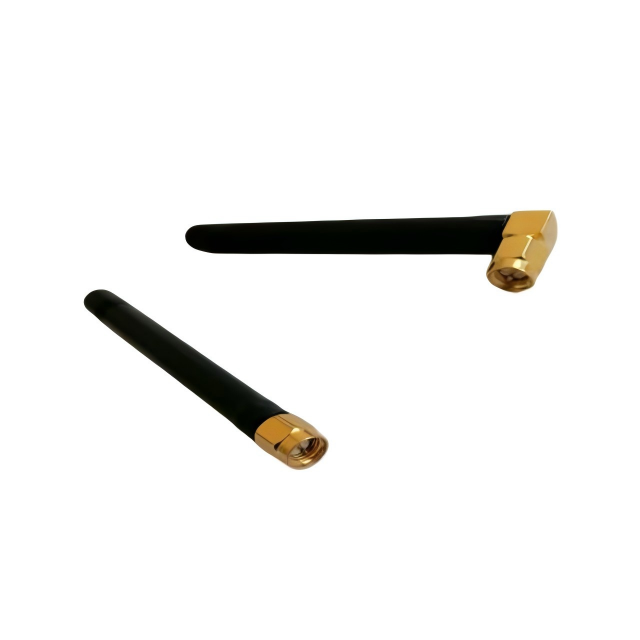

3G Rubber Antenna | |
GL-DY416 | |
Electrical Index | |
Frequency-MHz | 868-2170 |
Gain-dBi | 2.5 |
VSWR | ＜2.0 |
Normal Impedance-Ω | 50 |
Polarization | Linear |
Mechanical Index | |
Connector | SMA R/A male |
Antenna Dimension-mm | 8*85 |
Environmentally Friendly | ROHS Compliant |
Temperature-℃ | -40～＋88 |
Humidity-﹪ | 5～95 |
Differences between similar antennas
P/N | GL868M | GL86803A | GL8681 |
Gain | 5 | 3 | 3 |
V.S.W.R. | 2.0 | 1.5 | 2.0 |
Product Introduction
1. Wide Frequency Band Coverage, Compatible with Multiple Networks
Supports a wide frequency range of 868-2170MHz, perfectly adaptable to 3G networks and some 4G LTE bands, suitable for various communication standards and regions.
2. Durable and Easy-to-Install Rubber Structure
Made of high-quality rubber, flexible and drop-resistant, easy to adjust direction; with standard SMA R/A male connector, plug and play, convenient installation.
3. Stable Electrical Performance, More Reliable Signal
Gain 2.5dBi, VSWR < 2.0, impedance 50Ω, ensuring stable signal transmission, reducing loss, and improving communication quality.
4. Wide Temperature and Humidity Range, Suitable for Harsh Environments
Operating temperature -40℃ to +85℃, humidity range 5%-95%, fearless of outdoor and industrial environment challenges, ensuring long-term stable operation.
5. Environmentally Certified, Worry-Free Export
Complies with RoHS environmental standards, meets international market access requirements, and supports sustainable production and procurement.
Application Scenarios
3G/4LTE routers, CPEs, and modems
M2M communication devices (e.g., vending machines, POS machines)
Vehicle tracking systems and telematics
Industrial IoT gateways and data acquisition terminals
Smart meters, security monitoring, and other outdoor wireless devices
FAQ
Q: What frequency bands does this antenna support?
A: It operates in the 868-2170MHz range, making it suitable for 3G and some 4G LTE applications.
Q: What type of connector is used?
A: It features an SMA Reverse Polarity (R/A) male connector.
Q: Can it be used for 4G devices?
A: Yes, if the 4G device operates within the 868-2170MHz frequency range, this antenna is compatible.
Q: Is the antenna suitable for outdoor use?
A: Absolutely. Its wide operating temperature (-40℃ to +85℃) and humidity resistance make it ideal for outdoor applications.
Q: What is the gain of the antenna?
A: The gain is 2.5dBi, providing a balanced coverage for most communication needs.
Q: Does it comply with environmental standards?
A: Yes, it is ROHS compliant, meaning it is free from hazardous substances.
Q: What are the antenna's dimensions?
A: The antenna measures 8mm in diameter and 85mm in length.
