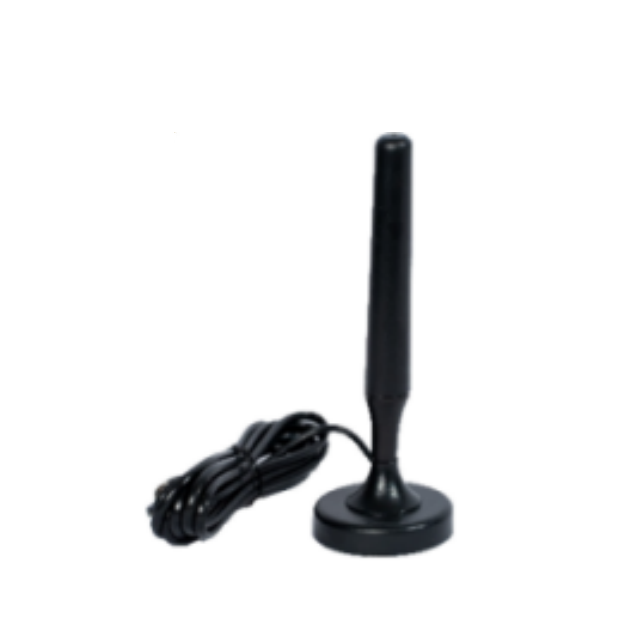

GL-DYT011
asialeren
8517710000
50pcs
Accepted
10000pc/day
| Quantity: | |
|---|---|
| PDF Export | |
Frequency Range (MHz) | 174-862 |
Bandwidth (MHz) | 70 |
Input Impedence (Ω) | 75 |
V.S.W.R | ≤1.5 |
Gain (dBi) | 7-9 |
Polarization | Vertical |
Power Capacity (w) | 50 |
Mechanical Specifications | |
Cable Length-m | 3m or Customizable |
Connect Type | F/USB |
Working Temp(℃) | -40~85 |
Radome Color | Black |
Dimensions-mm | Φ63*127 |
Product Introduction
1. Full-Band Coverage, Locking in Every Channel
Exclusively supports the 174-862MHz ultra-wide band, perfectly compatible with all VHF (low frequency) and UHF (high frequency) channels. Unlike ordinary antennas that only support UHF, it ensures you won't miss any important local stations on the VHF band (such as channels 7, 9, and 13), truly receiving all free-to-air programming.
2. Optimized Gain, Stable Reception of Near and Far Signals
Provides optimized gain of 7-9dBi, effectively enhancing signal strength. While receiving distant UHF channels, it can also stably capture the more penetrating VHF signals, ensuring stable and clear picture quality in both urban and suburban environments.
3. Convenient USB Power, Plug and Play
Utilizes a universal USB power supply, drawing power directly from your TV or charger to drive the built-in low-noise amplifier. No complicated wiring is required; installation can be completed in under a minute, allowing you to immediately start scanning and enjoy more HD channels.
4. Rugged Design and Customizable Cable Options
With a wide operating temperature range of -40℃ to 85℃, it boasts excellent durability. In addition to the standard 3-meter cable, we also offer customized cable length services to meet your flexible installation needs in various locations, from the living room to the bedroom.
5. High Performance Guarantee, Lossless Signal Transmission A voltage standing wave ratio (VSWR) as low as 1.5 and a standard impedance of 75 ohms ensure efficient signal transmission between the antenna and the TV, minimizing signal loss and presenting the received signal to your screen in high quality.
Application Scenarios
Users needing to receive VHF channels: For areas where local core television stations (such as PBS, ABC, CBS, etc.) still broadcast on the VHF band, this antenna is crucial to ensuring reception of these stations.
Channel Scanning Enthusiasts: Users who want to ensure their device can scan for all possible channels, avoiding missing any free content due to incomplete antenna band coverage.
Mixed Signal Areas in Urban and Suburban Areas: In areas with varying signal strength, its full-band and amplification capabilities allow it to simultaneously capture VHF and UHF signals of varying strengths.
Compatible with both older and newer smart TVs: Works perfectly with all TVs with a coaxial interface, from older models to the latest 4K smart TVs.
For renters and those with limited space: Its compact design and easy installation make it ideal for renters or those living in cramped conditions, providing near-outdoor antenna reception without the need for outdoor installation.
FAQ
Q: What is the difference between VHF and UHF, and why does it matter?
A: VHF (channels 2-13) are lower frequency signals that travel farther but need a different antenna design to receive. UHF (channels 14-51) are higher frequency. Many indoor antennas are optimized only for UHF. Our GL-DYT011 receives both, so you get ALL available channels.
Q: How many more channels can I get with this full-band antenna?
A: It depends on your area, but you may discover several key channels (often major networks like ABC, CBS, FOX, or PBS) that were missing with a UHF-only antenna. We recommend checking a site like AntennaWeb.org to see which VHF and UHF channels are available near you.
Q: Do I need to plug it into power?
A: Yes, the USB cable powers the built-in signal amplifier, which is essential for boosting both VHF and UHF signals to watchable levels. Plug it into your TV's USB port or a wall adapter.
Q: Where is the best place to put this antenna?
A: For best VHF reception, try placing it near a window, higher up, and away from large metal objects. VHF signals can be trickier to receive indoors, so you may need to experiment with a few locations.
Q: Can I request a longer cable?
A: Yes, we offer customizable cable lengths. Please contact our customer service team after placing your order or via our contact page to arrange this.
Q: Will this work in a rural area?
A: Yes, its amplified design and full-band capability are beneficial in rural areas. However, reception is always subject to distance from broadcast towers. For extreme distances, a large outdoor antenna might be necessary.
Frequency Range (MHz) | 174-862 |
Bandwidth (MHz) | 70 |
Input Impedence (Ω) | 75 |
V.S.W.R | ≤1.5 |
Gain (dBi) | 7-9 |
Polarization | Vertical |
Power Capacity (w) | 50 |
Mechanical Specifications | |
Cable Length-m | 3m or Customizable |
Connect Type | F/USB |
Working Temp(℃) | -40~85 |
Radome Color | Black |
Dimensions-mm | Φ63*127 |
Product Introduction
1. Full-Band Coverage, Locking in Every Channel
Exclusively supports the 174-862MHz ultra-wide band, perfectly compatible with all VHF (low frequency) and UHF (high frequency) channels. Unlike ordinary antennas that only support UHF, it ensures you won't miss any important local stations on the VHF band (such as channels 7, 9, and 13), truly receiving all free-to-air programming.
2. Optimized Gain, Stable Reception of Near and Far Signals
Provides optimized gain of 7-9dBi, effectively enhancing signal strength. While receiving distant UHF channels, it can also stably capture the more penetrating VHF signals, ensuring stable and clear picture quality in both urban and suburban environments.
3. Convenient USB Power, Plug and Play
Utilizes a universal USB power supply, drawing power directly from your TV or charger to drive the built-in low-noise amplifier. No complicated wiring is required; installation can be completed in under a minute, allowing you to immediately start scanning and enjoy more HD channels.
4. Rugged Design and Customizable Cable Options
With a wide operating temperature range of -40℃ to 85℃, it boasts excellent durability. In addition to the standard 3-meter cable, we also offer customized cable length services to meet your flexible installation needs in various locations, from the living room to the bedroom.
5. High Performance Guarantee, Lossless Signal Transmission A voltage standing wave ratio (VSWR) as low as 1.5 and a standard impedance of 75 ohms ensure efficient signal transmission between the antenna and the TV, minimizing signal loss and presenting the received signal to your screen in high quality.
Application Scenarios
Users needing to receive VHF channels: For areas where local core television stations (such as PBS, ABC, CBS, etc.) still broadcast on the VHF band, this antenna is crucial to ensuring reception of these stations.
Channel Scanning Enthusiasts: Users who want to ensure their device can scan for all possible channels, avoiding missing any free content due to incomplete antenna band coverage.
Mixed Signal Areas in Urban and Suburban Areas: In areas with varying signal strength, its full-band and amplification capabilities allow it to simultaneously capture VHF and UHF signals of varying strengths.
Compatible with both older and newer smart TVs: Works perfectly with all TVs with a coaxial interface, from older models to the latest 4K smart TVs.
For renters and those with limited space: Its compact design and easy installation make it ideal for renters or those living in cramped conditions, providing near-outdoor antenna reception without the need for outdoor installation.
FAQ
Q: What is the difference between VHF and UHF, and why does it matter?
A: VHF (channels 2-13) are lower frequency signals that travel farther but need a different antenna design to receive. UHF (channels 14-51) are higher frequency. Many indoor antennas are optimized only for UHF. Our GL-DYT011 receives both, so you get ALL available channels.
Q: How many more channels can I get with this full-band antenna?
A: It depends on your area, but you may discover several key channels (often major networks like ABC, CBS, FOX, or PBS) that were missing with a UHF-only antenna. We recommend checking a site like AntennaWeb.org to see which VHF and UHF channels are available near you.
Q: Do I need to plug it into power?
A: Yes, the USB cable powers the built-in signal amplifier, which is essential for boosting both VHF and UHF signals to watchable levels. Plug it into your TV's USB port or a wall adapter.
Q: Where is the best place to put this antenna?
A: For best VHF reception, try placing it near a window, higher up, and away from large metal objects. VHF signals can be trickier to receive indoors, so you may need to experiment with a few locations.
Q: Can I request a longer cable?
A: Yes, we offer customizable cable lengths. Please contact our customer service team after placing your order or via our contact page to arrange this.
Q: Will this work in a rural area?
A: Yes, its amplified design and full-band capability are beneficial in rural areas. However, reception is always subject to distance from broadcast towers. For extreme distances, a large outdoor antenna might be necessary.
