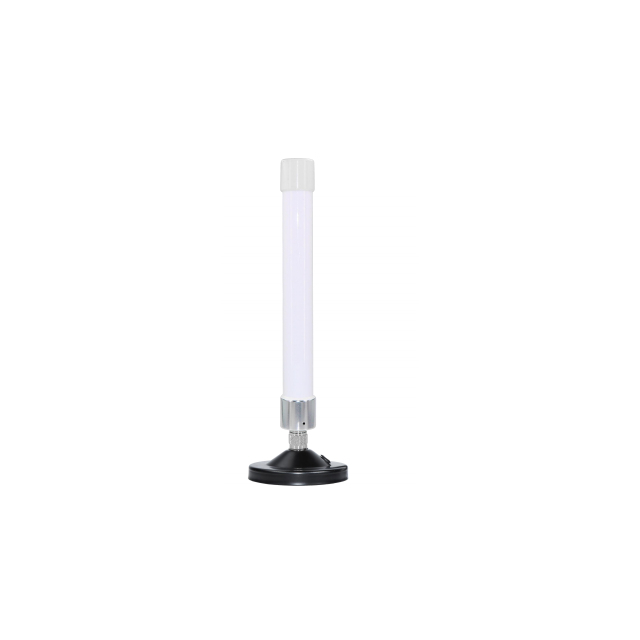

4dBi 698-2700MHz High Gain Magnet Antenna

Product introduction

1. Wide Frequency Coverage (698-2700MHz)

Supports 4G LTE, 5G sub-6GHz, and legacy 2G/3G bands across the entire 698-2700MHz range, ensuring universal compatibility with global cellular networks.

2. Strong Magnetic Mount

The integrated high-strength magnet base provides secure attachment to metal surfaces such as vehicle roofs, equipment cabinets, and steel structures, enabling instant installation without drilling.

3. Compact Yet High-Performance

With 4.0dBi gain and vertical polarization, this antenna delivers excellent signal reception and transmission for both mobile and stationary applications.

4. Robust Power Handling

Supports up to 100W maximum input power, making it suitable for high-power transmitters, boosters, and repeater systems without risk of damage.

5. Durable & Weather-Resistant Construction

Measuring ⌀92×560mm and weighing only 500g, it is lightweight yet rugged enough for outdoor use, with a whip design that withstands wind and vibration.

Application scenarios

Vehicle-Mounted Mobile Networks

Temporary & Event Connectivity

Cellular Signal Boosters

Industrial IoT & Fleet Management

Base Station & Backup Links

FAQ

Q:What frequency bands does this antenna cover?

A:It covers 698MHz to 2700MHz, including all major 4G LTE bands (B1/B2/B3/B4/B5/B7/B8/B12/B13/B17/B20/B25/B26/B28/B29/B30/B40/B41/B66) and many 5G sub-6GHz bands (n1/n2/n3/n5/n7/n8/n12/n20/n28/n40/n41/n66/n71).

Q:Is the antenna magnetic?

A:Yes, it has a built-in magnetic base (⌀92mm) that securely attaches to any ferrous metal surface.

Q: Can I use this antenna on a non-metal surface?

A:The magnetic mount requires a metal surface for attachment. For non-metal surfaces, you would need an adhesive metal plate (not included) or a different mounting method.

Q: What is the gain of this antenna?

A:The antenna provides 4.0dBi gain, which improves signal strength compared to standard rubber duck antennas.

Q: Is it suitable for 5G?

A:Yes, it covers frequencies up to 2700MHz, making it compatible with 5G sub-6GHz bands in that range. It is not for mmWave.

Q: What is the maximum power? input?

A:can handle up to 100W of input power, suitable for cellular routers, boosters, and two-way radios
