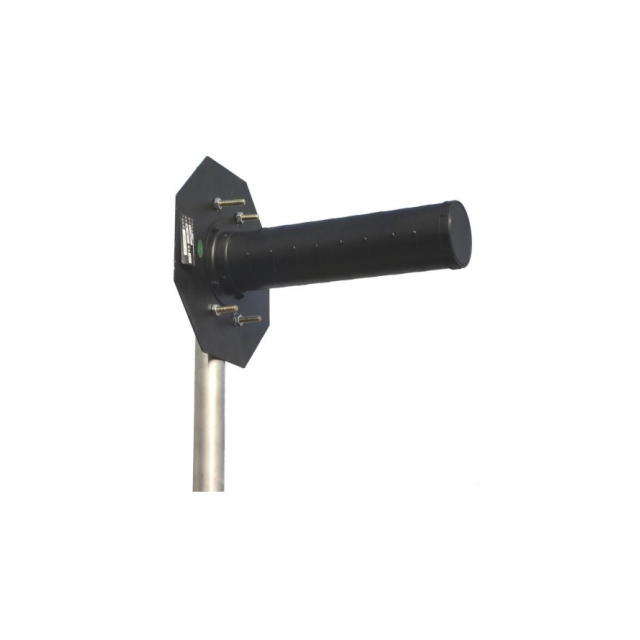

GL-1500AHL
GLOBAL
8517710000
100PC
Accepted
10000PC/Day
| Quantity: | |
|---|---|
| PDF Export | |
Item | Index |
PN | GL-1500AHL |
Frequency Range (MHz) | 1400-1550 |
Bandwidth (MHz) | 150 |
Gain (dBi) | 14 |
V.S.W.R | ≤1.5 |
Vertical Beamwidth (⁰) | 35 |
Nominal Impedance (Ω) | 50 |
Polarization | Circle Polarization |
Max power input（W） | 100 |
Length (mm) | 410 |
Weight (kg) | 1 |
Connector | N female |
Remarks | Poles mounting |
Item | Index |
PN | GL-1500AHL |
Frequency Range (MHz) | 1400-1550 |
Bandwidth (MHz) | 150 |
Gain (dBi) | 14 |
V.S.W.R | ≤1.5 |
Vertical Beamwidth (⁰) | 35 |
Nominal Impedance (Ω) | 50 |
Polarization | Circle Polarization |
Max power input（W） | 100 |
Length (mm) | 410 |
Weight (kg) | 1 |
Connector | N female |
Remarks | Poles mounting |
