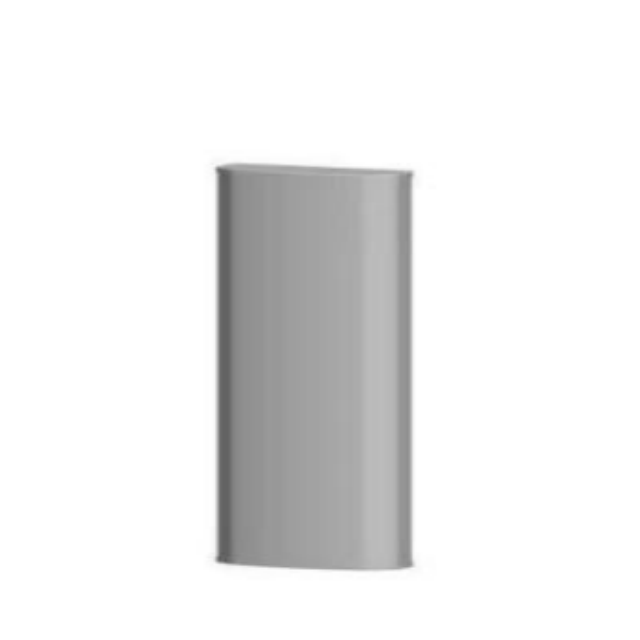

1695-2690MHz single band-2 ports Panel Antenna | |
GL1726VH20-36 | |
Electrical Specifications | |
Frequency range(MHz) | B1B2B31710-26901710-26901710-2690
|
Polarization | ±45° |
| Middle tilt gain (dBi)Gain(dBi)
| 2021.021.521±221±221±2
|
Horizontal 3dB Beamwidth (°) | 22±2 |
Vertical 3dB Beamwidth (°) | 22±2 |
Front-to-back ratio(dB) | ≥25 |
Cross-polarization ratio(dB) | >15(±60°≥8) |
Electrical down tilt(°) | 2-10 |
Sidelobe Suppression(dB) The first side lobe above the main lobe) |
≥15 |
V.S.W.R | <1.5 |
Isolation : In the system(dB) | ≥25 |
Third-order intermodulation (dBm) (2×43dBm Carrier Input power) | ≤-105 |
Port impedance(Ω) | 50 |
Maximum input power per port(W) @50°C | 300 |
ESC Type | TRCU-TM10P1V01(built-in ,Built-in) |
ESC interface | AISG 2.0 SRET |
Lighting Protection | DC grounding |
Mechanical Specifications | |
Connectors | 4.3-10 Female*6 |
Connector location | bottom |
Size(long×Width×High) (mm) | 1195*448*200 |
Packing size(mm) | Subject to actual situation |
Antenna weight(kg) | 25 |
Mounting weight(kg) | 3 |
Packed weight(kg) | 28 |
Wind load (N, exist 150km/h)Front/Side/Back | 949/326/1127 |
Maximum headwind speed(km/h) | 216 |
Radome Material | High quality fiberglass |
Radome Color | White |
Mechanical tilt(°) | 0-15 |
Operating temperature(℃) | -50~65 |
Pole diameter(mm) | Ф50~Ф115 |
Mounting Parts Model | 51AA |
Product Introduction
① Wideband Coverage and Multi-Band Compatibility
Supports the full 1710-2690MHz frequency band, including B1/B2/B3, making it suitable for 4G/LTE and 5G networks. This single device offers multiple uses, reducing deployment costs.
② High Gain and Precise Beam Control
Gain reaches 21±2 dBi, with both horizontal and vertical beamwidths of 22±2° and a front-to-back ratio of ≥25 dB, ensuring focused signal transmission and longer, more stable coverage.
③ Electrically Adjustable Downtilt + Mechanical Downtilt
Supports 2-10° electrical downtilt and 0-15° mechanical downtilt, allowing for flexible coverage adjustment, optimizing network performance, and reducing interference.
④ Highly Protective and Durable Design
Equipped with a high-quality fiberglass radome, it operates in a temperature range of -50°C to 65°C and withstands wind loads of up to 216 km/h, making it suitable for extreme outdoor environments.
⑤ Intelligent Interface and High Compatibility
Built-in AISG 2.0 SRET interface supports remote electrical adjustment; six 4.3-10 female ports with ≥25 dB isolation are compatible with mainstream base station equipment.
Application Scenarios
Urban and Suburban Base Station Deployment: Suitable for signal coverage and capacity enhancement in high-density user areas.
Rural and Remote Area Communications: High gain ensures long-distance signal transmission.
Indoor Distribution System (DAS): Serves as a signal source antenna in large venues such as shopping malls, airports, and stadiums.
Network Expansion and Upgrade: Supports multiple frequency bands, facilitating a smooth transition from 4G to 5G.
Temporary Communication Site: Ideal for emergency communications, temporary coverage during events, and other scenarios.
FAQ
Q: What network bands does this antenna support?
A: It supports the full 1710-2690 MHz frequency band, covering 4G/LTE and select 5G bands, and is compatible with multiple communication bands such as B1/B2/B3.
Q: What is the antenna gain? Is it adjustable?
A: The gain is 21±2 dBi and is not adjustable. However, the downtilt angle can be electrically adjusted (2-10°) to optimize the signal coverage angle.
Q: Does the antenna support remote control?
A: Yes, it has a built-in AISG 2.0 SRET interface, which supports remote electrical adjustment and monitoring.
Q: How is the antenna mounted?
A: It can be mounted on a 50-115 mm Φ pole using the included mounting hardware (model 51AA). The downtilt angle is mechanically adjustable from 0-15°.
Q: Is the antenna lightning-proof?
A: Yes, it has DC grounding for lightning protection, enhancing safety for outdoor use.
Q: What are the connector types and quantity?
A: There are six 4.3-10 female connectors located on the bottom of the antenna.
