GL-TGPS-1500×2
GLOBAL
8517710000
10pc
Accepted
1000PC/Day
| Quantity: | |
|---|---|
| PDF Export | |
Model | GL-TGPS-1500×2 |
Frequency Range (MHz) | 1575±4 2500-2700 |
Gain (dB) | 5±0.5 ≥ 5 |
VSWR | ≤ 1.5 ≤2.0 |
LNA Gain (dB) | ≥ 28 |
Operating Voltage (DC V) | 3 ~ 5 |
Polarization | RHCP |
Nominal Impedance (Ω) | 50 |
Dimensions (mm) | 435 |
Weight (g) | 500 |
Connector | SMA male/TNC male |
Mounting Method | Fixed with nut |

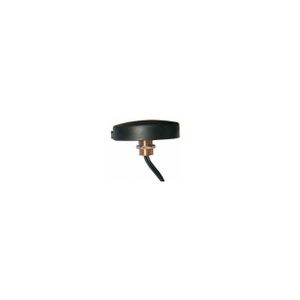

Product Introduction
1.Dual-band integrated design, integrating GPS and communication bands.
The antenna integrates the 1575MHz GPS L1 band and the 2500-2700MHz high-frequency band, suitable for both navigation and communication needs, reducing equipment installation complexity.
2.High-gain LNA, strong and stable signal reception.
Built-in low-noise amplifier with a gain ≥28dB, significantly improving signal reception sensitivity, suitable for weak signal or long-distance positioning scenarios.
3.Low VSWR, high transmission efficiency.
GPS band VSWR≤1.5, high-frequency band VSWR≤2.0, ensuring low signal transmission loss and high efficiency, suitable for high-precision positioning systems.
4.Compact and robust structure, easy installation.
The antenna size is Φ43mm, weighing only 500g, supports nut-mounted installation, and comes standard with SMA or TNC male connectors, adaptable to various installation environments.
5.Wide voltage power supply, strong compatibility.
Supports 3~5V DC wide voltage input, compatible with most GPS receivers and communication modules, suitable for vehicle-mounted, fixed-station, and mobile devices.
Application Scenarios
●High-precision positioning and remote communication integrated system for unmanned aerial vehicles (UAVs)
●Vehicle navigation and fleet management communication integrated unit
●Fixed station dual-frequency receiving system for base station timing, weather monitoring, etc.
●Autonomous driving and remote data transmission for agricultural machinery
●Navigation and communication equipment for mobile platforms such as ships and aircraft
FAQ
Q: Which frequency bands does this antenna support?
A: Supports GPS L1 band (1575±4MHz) and communication band (2500-2700MHz), suitable for navigation and data transmission.
Q: Can the two frequency bands work simultaneously?
A: Yes, the antenna design supports independent or simultaneous operation of the two frequency bands, suitable for integrated navigation and communication systems.
Q: Does it support BeiDou or GLONASS?
A: The standard version supports the GPS L1 band. Custom designs are available for compatibility with multiple systems such as BeiDou and GLONASS.
Q: Is the installation method flexible?
A: Supports nut-fixed installation, suitable for flat or bracket installation. SMA or TNC male connectors are available.
Q: Is the LNA gain adjustable?
A: The LNA is a fixed gain design (≥28dB). Customization is available for different gains.
Q: Does it include a cable?
A: The product is the antenna itself; cables can be selected or customized according to requirements.
Model | GL-TGPS-1500×2 |
Frequency Range (MHz) | 1575±4 2500-2700 |
Gain (dB) | 5±0.5 ≥ 5 |
VSWR | ≤ 1.5 ≤2.0 |
LNA Gain (dB) | ≥ 28 |
Operating Voltage (DC V) | 3 ~ 5 |
Polarization | RHCP |
Nominal Impedance (Ω) | 50 |
Dimensions (mm) | 435 |
Weight (g) | 500 |
Connector | SMA male/TNC male |
Mounting Method | Fixed with nut |
Product Introduction
1.Dual-band integrated design, integrating GPS and communication bands.
The antenna integrates the 1575MHz GPS L1 band and the 2500-2700MHz high-frequency band, suitable for both navigation and communication needs, reducing equipment installation complexity.
2.High-gain LNA, strong and stable signal reception.
Built-in low-noise amplifier with a gain ≥28dB, significantly improving signal reception sensitivity, suitable for weak signal or long-distance positioning scenarios.
3.Low VSWR, high transmission efficiency.
GPS band VSWR≤1.5, high-frequency band VSWR≤2.0, ensuring low signal transmission loss and high efficiency, suitable for high-precision positioning systems.
4.Compact and robust structure, easy installation.
The antenna size is Φ43mm, weighing only 500g, supports nut-mounted installation, and comes standard with SMA or TNC male connectors, adaptable to various installation environments.
5.Wide voltage power supply, strong compatibility.
Supports 3~5V DC wide voltage input, compatible with most GPS receivers and communication modules, suitable for vehicle-mounted, fixed-station, and mobile devices.
Application Scenarios
●High-precision positioning and remote communication integrated system for unmanned aerial vehicles (UAVs)
●Vehicle navigation and fleet management communication integrated unit
●Fixed station dual-frequency receiving system for base station timing, weather monitoring, etc.
●Autonomous driving and remote data transmission for agricultural machinery
●Navigation and communication equipment for mobile platforms such as ships and aircraft
FAQ
Q: Which frequency bands does this antenna support?
A: Supports GPS L1 band (1575±4MHz) and communication band (2500-2700MHz), suitable for navigation and data transmission.
Q: Can the two frequency bands work simultaneously?
A: Yes, the antenna design supports independent or simultaneous operation of the two frequency bands, suitable for integrated navigation and communication systems.
Q: Does it support BeiDou or GLONASS?
A: The standard version supports the GPS L1 band. Custom designs are available for compatibility with multiple systems such as BeiDou and GLONASS.
Q: Is the installation method flexible?
A: Supports nut-fixed installation, suitable for flat or bracket installation. SMA or TNC male connectors are available.
Q: Is the LNA gain adjustable?
A: The LNA is a fixed gain design (≥28dB). Customization is available for different gains.
Q: Does it include a cable?
A: The product is the antenna itself; cables can be selected or customized according to requirements.
