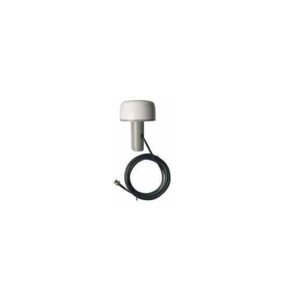

GL-TGPS-1500×2C
GLOBAL
8517710000
10pc
Accepted
1000PC/Day
| Quantity: | |
|---|---|
| PDF Export | |
Model | GL-TGPS-1500×2C |
Frequency Range (MHz) | 1575.42±2 824～960/1710～2170 |
Gain (dB) | 4.5/2 |
VSWR | ≤2.5 |
LNA Gain (dB) | ≥ 25 |
Operating Voltage (DC V) | 3 ~ 5.5 |
Nominal Impedance (Ω) | 50 |
Dimensions (mm) | Φ 72×22 |
Weight (g) | 170 |
Connector | SMA male or customization |
Mounting Method | Fixed with screw |
Product Introduction
●Dual-band operation: Supports 1575.42±2824MHz and 960/1710～2170MHz frequency bands, suitable for multiple systems and regions.
●High gain performance: 4.5dB/2dB dual-band gain ensures strong signal reception and improves positioning stability.
●Low VSWR: ≤2.5 voltage standing wave ratio optimizes power transmission efficiency and reduces signal loss.
●Built-in LNA amplifier: ≥25dB low-noise amplifier gain enhances weak signal reception capability.
●Compact and durable design: Φ72×22mm size and 170g weight, suitable for stable installation in space-constrained scenarios.
Application Scenarios
Vehicle navigation systems: Improves positioning accuracy in complex road conditions.
Ships: Reliable signal reception in open waters.
Aircraft positioning and tracking: Supports precise altitude and position monitoring.
Outdoor adventure equipment: Ensures safe navigation in hiking/mountain climbing scenarios.
Precision agriculture equipment: High-precision support for agricultural machinery positioning and soil mapping.
FAQ
Q: Which frequency bands does this antenna support?
A: Supports dual-band operation of 1575.42±2824MHz and 960/1710～2170MHz.
Q: What are the antenna gain parameters?
A: Dual-band gains are 4.5dB and 2dB respectively.
Q: Does it have a built-in low-noise amplifier?
A: Built-in LNA module with ≥25dB gain.
Q: What is the antenna's voltage standing wave ratio (VSWR)?
A: VSWR≤2.5, ensuring efficient signal transmission.
Q: Can the connector type be customized?
A: Uses SMA male connectors, supporting customization needs.
Q: What is the installation method?
A: Screw-mounted installation, providing a stable installation solution.
