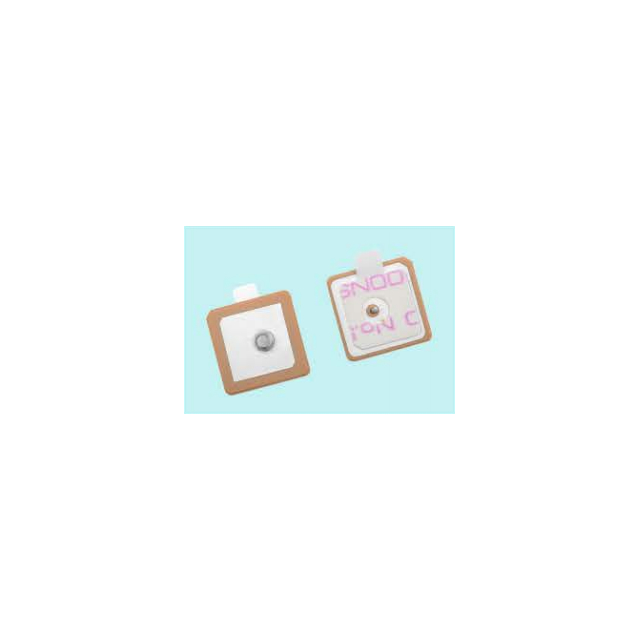

Ceramic Antenna for Marine Positioning

The GLS2509 ceramic GPS antenna operates at 1575.42MHz, with ≥4.5MHz bandwidth, -0.5/2.5dBic typical peak gain, and axial ratio ≤7.0/5.0dB. Supporting 30x30/50x50mm ground planes, its 13x13x4mm design is suitable for marine and vehicle fleet positioning.

  • GLS2509

  • GLOBAL

  • 8517710000

  • 100PC

  • Accepted

  • 1000PC/Day

Availability:
Quantity:
Inquiry Add to Basket

PDF Export
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

Frequency(MHz) 1575.42 Bandwidth(MHz) ≥4,5 Peak Gain -0.5,2.5dBic Typ. Axial Ratio ≤7.0,5.0dB Ground Plane(mm)  30x30,50x50 Polarization RHCP Impedance(Ω) 50 Dimension(mm) 13x13x4

marine positioning ceramic antenna 1575.42MHz vehicle fleet GPS antenna
