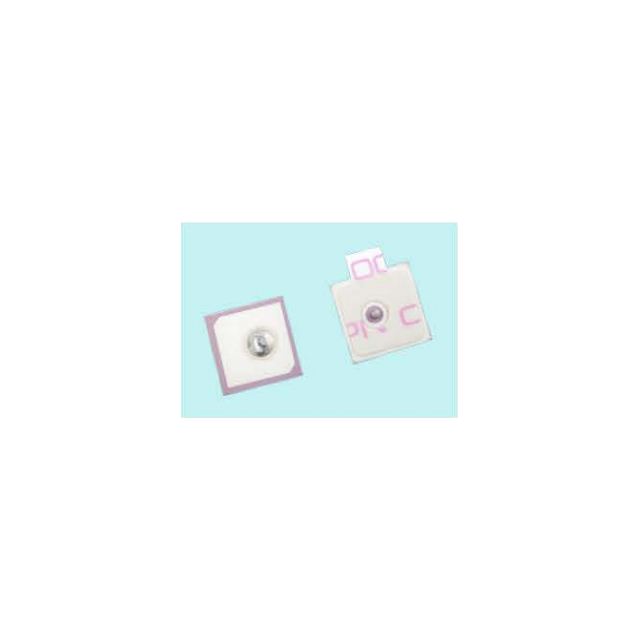

1575.42MHz Ceramic Antenna

The GLS2505 ceramic antenna is designed for GPS applications, operating at 1575.42MHz with RHCP polarization and 50Ω impedance. It features ≥4.6MHz bandwidth, typical peak gain of -6.0/-3.0dBic, axial ratio ≤7.0/5.0dB, supports 20x20/50x50mm ground planes, and has a compact 9x9x4mm dimension.

  • GLS2505

  • GLOBAL

  • 8517710000

  • 100PC

  • Accepted

  • 1000PC/Day

Availability:
Quantity:
Inquiry Add to Basket

PDF Export
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

Frequency(MHz)  1575.42 Bandwidth(MHz) ≥4,6MHz Peak Gain -6.0,-3.0dBic Typ. Axial Ratio ≤7.0,5.0dB Ground Plane (mm) 20x20,50x50 Polarization RHCP Impedance(Ω) 50 Dimension(mm) 9x9x4

1575.42MHz ceramic antenna 50Ω impedance ceramic antenna
