GL-DY130
Asialeren
8517710000
100pcs
Accepted
10000pcs/day
| Quantity: | |
|---|---|
| PDF Export | |
WiFi Patch Antenna | |
GL-DY130 | |
Electrical Index | |
Frequency-MHz | 2400-2500 |
VSWR | ＜1.5 |
Nominal Impedance -Ω | 50 |
Polarization | Vertical |
Gain -dBi | 2.5 |
Mechanical Index | |
Cable Length | RG1.13 |
Connector | UFL |
Antenna Dimension-mm | 48*7.3*0.6 |
Installation Way | 3M sticky |
Vibration | 10 to 55Hz with 1.5mm amplitude 2hours |
Environmentally Friendly | ROHS Compliant |
Temperature-℃ | -40～＋85 |
Humidity-﹪ | 5～95 |
Differences between similar products

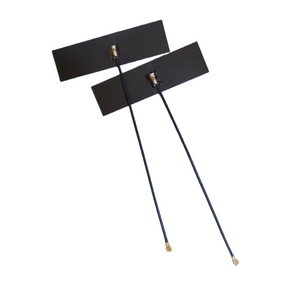

P/N | GL-DY130 | GL-DY127 | GL-DY128 |
Frequency-Mhz | 2400~2500 | 2400~2500 | 2400~2500/4900~5900 |
Gain-dBi | 2.5 | 3 | 3 |
Antenna Dimension-mm | 48*7.3*0.6 | 50x15 | 42x12 |
Product Introduction
① World’s Thinnest Profile
At just 0.6mm thickness (48×7.3×0.6mm), it enables seamless integration into ultra-slim devices like wearables, tablets, and compact IoT hardware.
② Industrial-Grade Resilience
Survives extreme conditions: -40°C to +85°C temperatures, 5–95% humidity, and rigorous vibration (10–55Hz/1.5mm amplitude). ROHS compliance ensures eco-safety.
③ Plug-and-Play Installation
3M adhesive backing allows tool-free mounting in seconds – perfect for rapid deployments in tight spaces or curved surfaces.
④ Premium Signal Stability
VSWR <1.5 and 2.5dBi gain minimize interference for reliable 2.4GHz WiFi/Bluetooth/Zigbee connections in crowded RF environments.
⑤ UFL Flexibility
RG1.13 cable + UFL connector simplifies routing to embedded systems, drones, or robotics without signal degradation.

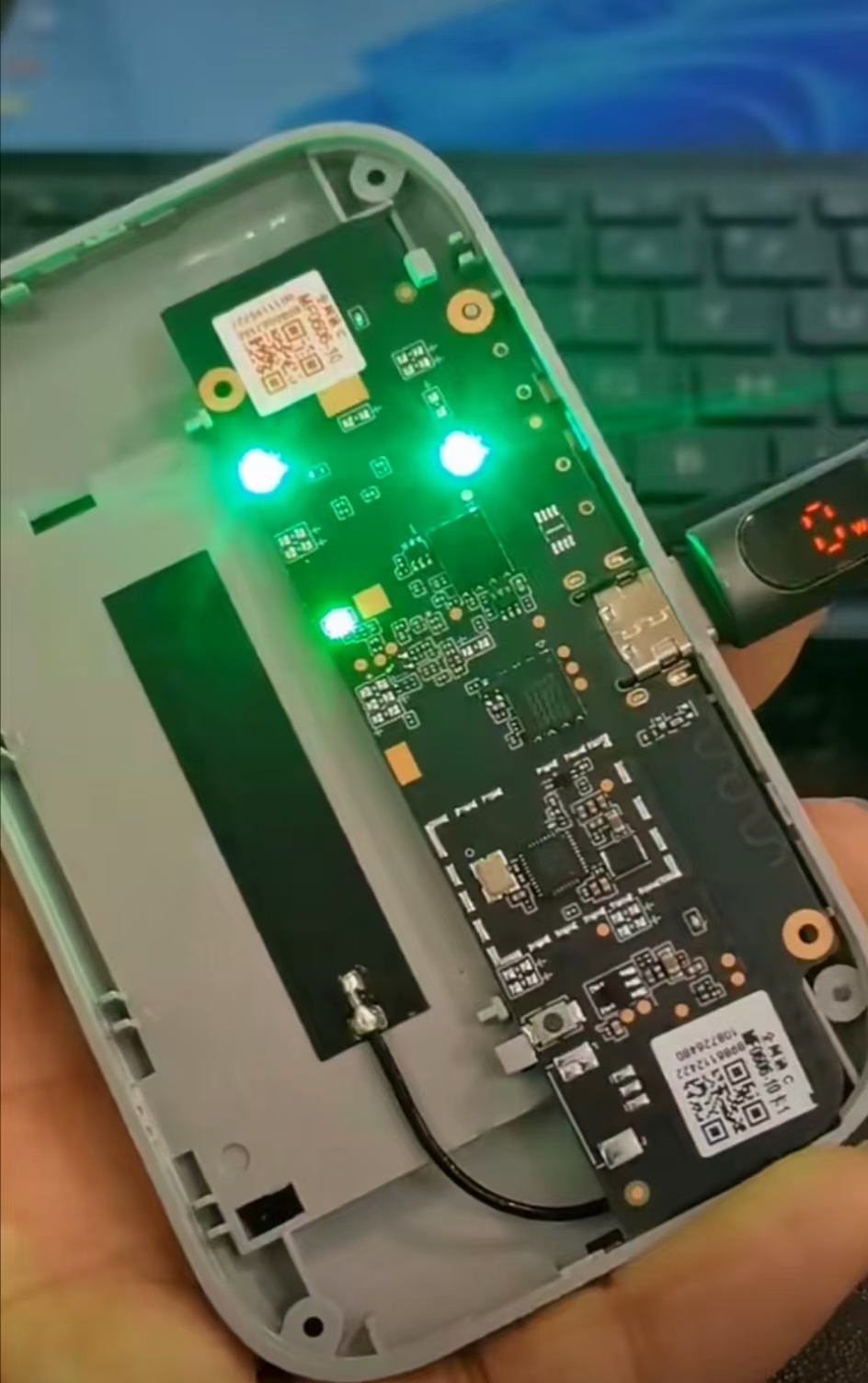

Smart Home: Hidden behind smart displays, thermostats, or security panels.
Industrial IoT: Machine controllers, AGV robots, vibration-heavy equipment.
Medical Devices: Wearable health monitors, portable diagnostic tools.
Retail & Logistics: Inventory scanners, handheld POS terminals.
Transportation: In-car infotainment, fleet telematics systems.
FAQ
Q: Will the adhesive work on curved surfaces?
A: Yes! The flexible 0.6mm design and industrial 3M adhesive conform to gentle curves (e.g., device housings).
Q: What devices use UFL connectors?
A: Raspberry Pi, ESP32, Quectel modules, drones, and embedded systems requiring low-profile antenna solutions.
Q: Is it compatible with 5GHz networks?
A: No – optimized exclusively for 2.4GHz (2400–2500MHz) WiFi 4/5/6, Bluetooth 5.0, and Zigbee.
Q: Can it withstand outdoor conditions?
A: Yes! Temperature/humidity ratings make it suitable for covered outdoor use .
Q: How durable is the adhesive in heat/cold?
A: 3M adhesive maintains bond strength from -40°C to +85°C – ideal for automotive/industrial applications.
Q: Does the thin design sacrifice performance?
A: No – VSWR <1.5 ensures >90% power efficiency, outperforming thicker antennas at this frequency.
Q: What’s the cable length?
A: Standard RG1.13 cable (diameter: 1.13mm). Custom lengths available for bulk orders.
Q: Why choose vertical polarization?
A: Maximizes signal consistency for ground-level devices (routers, sensors) and reduces multipath interference.
WiFi Patch Antenna | |
GL-DY130 | |
Electrical Index | |
Frequency-MHz | 2400-2500 |
VSWR | ＜1.5 |
Nominal Impedance -Ω | 50 |
Polarization | Vertical |
Gain -dBi | 2.5 |
Mechanical Index | |
Cable Length | RG1.13 |
Connector | UFL |
Antenna Dimension-mm | 48*7.3*0.6 |
Installation Way | 3M sticky |
Vibration | 10 to 55Hz with 1.5mm amplitude 2hours |
Environmentally Friendly | ROHS Compliant |
Temperature-℃ | -40～＋85 |
Humidity-﹪ | 5～95 |
Differences between similar products
P/N | GL-DY130 | GL-DY127 | GL-DY128 |
Frequency-Mhz | 2400~2500 | 2400~2500 | 2400~2500/4900~5900 |
Gain-dBi | 2.5 | 3 | 3 |
Antenna Dimension-mm | 48*7.3*0.6 | 50x15 | 42x12 |
Product Introduction
① World’s Thinnest Profile
At just 0.6mm thickness (48×7.3×0.6mm), it enables seamless integration into ultra-slim devices like wearables, tablets, and compact IoT hardware.
② Industrial-Grade Resilience
Survives extreme conditions: -40°C to +85°C temperatures, 5–95% humidity, and rigorous vibration (10–55Hz/1.5mm amplitude). ROHS compliance ensures eco-safety.
③ Plug-and-Play Installation
3M adhesive backing allows tool-free mounting in seconds – perfect for rapid deployments in tight spaces or curved surfaces.
④ Premium Signal Stability
VSWR <1.5 and 2.5dBi gain minimize interference for reliable 2.4GHz WiFi/Bluetooth/Zigbee connections in crowded RF environments.
⑤ UFL Flexibility
RG1.13 cable + UFL connector simplifies routing to embedded systems, drones, or robotics without signal degradation.
Smart Home: Hidden behind smart displays, thermostats, or security panels.
Industrial IoT: Machine controllers, AGV robots, vibration-heavy equipment.
Medical Devices: Wearable health monitors, portable diagnostic tools.
Retail & Logistics: Inventory scanners, handheld POS terminals.
Transportation: In-car infotainment, fleet telematics systems.
FAQ
Q: Will the adhesive work on curved surfaces?
A: Yes! The flexible 0.6mm design and industrial 3M adhesive conform to gentle curves (e.g., device housings).
Q: What devices use UFL connectors?
A: Raspberry Pi, ESP32, Quectel modules, drones, and embedded systems requiring low-profile antenna solutions.
Q: Is it compatible with 5GHz networks?
A: No – optimized exclusively for 2.4GHz (2400–2500MHz) WiFi 4/5/6, Bluetooth 5.0, and Zigbee.
Q: Can it withstand outdoor conditions?
A: Yes! Temperature/humidity ratings make it suitable for covered outdoor use .
Q: How durable is the adhesive in heat/cold?
A: 3M adhesive maintains bond strength from -40°C to +85°C – ideal for automotive/industrial applications.
Q: Does the thin design sacrifice performance?
A: No – VSWR <1.5 ensures >90% power efficiency, outperforming thicker antennas at this frequency.
Q: What’s the cable length?
A: Standard RG1.13 cable (diameter: 1.13mm). Custom lengths available for bulk orders.
Q: Why choose vertical polarization?
A: Maximizes signal consistency for ground-level devices (routers, sensors) and reduces multipath interference.
