GL-DY128
Asialeren
8517710000
| Quantity: | |
|---|---|
| PDF Export | |
Frequency range（MHz） | 2400~2500/4900~5900 |
Gain（dBi） | 3 |
Polarization |
|
Impedance (Ω) | 50 |
Max Power (W) | 50 |
VSWR | ≤2.0 |
2 Mechanical specifications
Connector | IPEX |
Dimensions(mm) | 42x12 |
Cable | RG1.13/RG1.37 |
Temperature (℃) | -30~60 |
Humidity (%) | 5~95 |

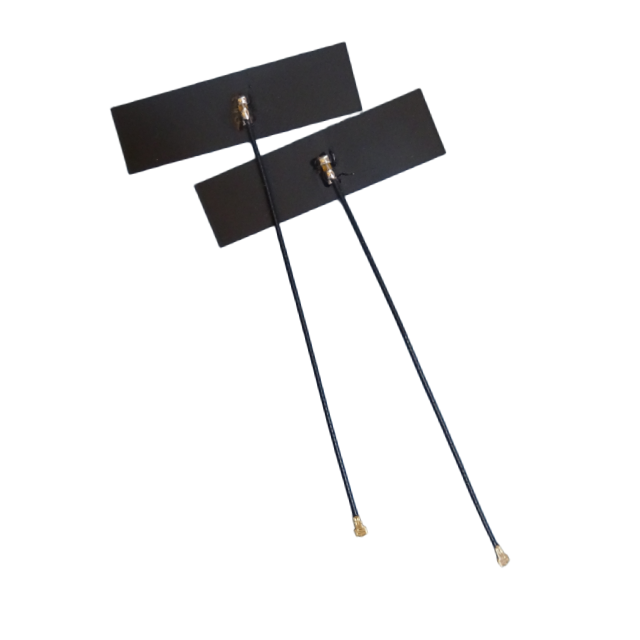

Product Introduction
Dual-Band Efficiency: Covers both 2.4GHz (2400-2500MHz) and 5GHz (4900-5900MHz) bands for WiFi 5/6 compatibility, eliminating the need for separate antennas.
Compact Powerhouse: Tiny 42x12mm size with 50W max power handling – ideal for space-constrained devices like drones or medical wearables.
Industrial Resilience: Operates in extreme conditions (-30°C to 60°C, 5-95% humidity), ensuring reliability in factories, outdoor sensors, or automotive systems.
Plug-and-Play Integration: Pre-attached 100mm RG1.13 cable + IPEX connector enables quick installation for routers, gateways, or embedded hardware.
Optimized Signal Integrity: Low VSWR (≤2.0) and 50Ω impedance minimize signal loss, while vertical polarization enhances compatibility with standard WiFi devices.
IoT Sensors: Humidity/temperature monitors in agriculture/warehouses.
Portable Routers: Travel WiFi hotspots and mobile broadband devices.
Robotics: Control systems for drones or automated guided vehicles (AGVs).
Medical Devices: Wireless patient monitors and handheld diagnostics.
Smart Home Hubs: Miniaturized controllers for lighting/security systems.
Q: Does this support WiFi 6?
A: Yes! The 5GHz band (4900-5900MHz) fully covers WiFi 6 channels.
Q: Can I use this for outdoor applications?
A: Limited to -30°C~60°C – suitable for sheltered outdoor use but not exposed environments.
Q: Is the IPEX connector compatible with U.FL?
A: Yes, IPEX and U.FL are interchangeable terms for the same connector type.
Q: What’s the radiation pattern?
A: Omnidirectional vertical polarization – ideal for horizontal device mounting.
Q: Can I extend the 100mm cable?
A: Not recommended – longer cables increase signal loss. Use RF adapters for routing.
Q: Why choose 3dBi gain?
A: Balances coverage and size – higher gain requires larger antennas. Perfect for compact devices.
Q: Is it ROHS compliant?
A: Documentation doesn’t specify, but confirm with manufacturer before industrial deployment.
Q: What devices use RG1.13 cable?
A: Common in embedded systems, drones, and mini-PCs due to its thin diameter (1.13mm).
