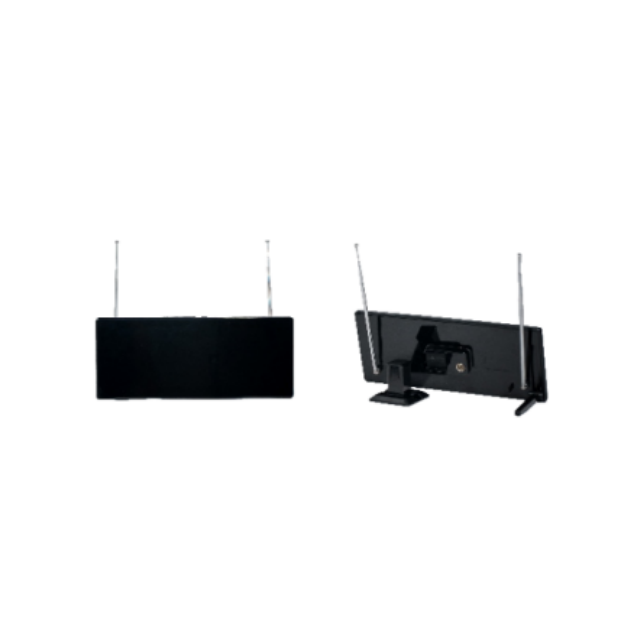

GL-DTV100A
Asialeren
8517710000
100pcs
Accepted
10000pcs/day
| Quantity: | |
|---|---|
| PDF Export | |
Frequency Range (MHz) | 47-862 |
Bandwidth (MHz) | 70 |
Input Impedence (Ω) | 75 |
V.S.W.R | ≤ 1.5 |
Gain (dBi) | 25-28 |
Polarization | Vertical |
Power Capacity (w) | 50 |
Mechanical Specifications | |
Cable Length-m | 3 |
Connect Type | IEC |
Color | Black |
material | ABS |
Working Temp(℃) | -40~85 |
Operation Voltage | AC/110/220V |
Product Introduction
Full-Band High-Gain Coverage, One Unit Receives All Channels
Fully supports the 47-862MHz VHF/UHF full-band, providing an ultra-high gain of 25-28dBi. Stable reception of both local and long-distance signals eliminates signal dead zones.
Professional-Grade Signal Amplification, Dedicated for Weak Signal Areas
Equipped with a high-performance, low-noise amplifier, effectively amplifies weak signals, providing a professional solution for signal reception challenges in remote areas and densely populated areas.
High-Quality ABS Material, Lightweight and Durable
Made of high-strength ABS engineering plastic, lightweight, impact-resistant, and anti-aging. The minimalist black design blends easily into various home environments, combining aesthetics and practicality.
Intelligent Gain Control, Always Clear Picture
Built-in Automatic Gain Control (AGC) circuitry monitors signal strength in real time and automatically adjusts the amplification factor to prevent signal overload and ensure a stable, snow-free picture.
Global Voltage Compatibility, Safe and Reliable
Supports AC 110V/220V global voltage standards and comes with a safety-certified power adapter. Comprehensive overvoltage and overcurrent protection ensures safe use.
Application Scenarios
●Full-band Signal Reception Area: Suitable for areas requiring simultaneous VHF and UHF channel reception, solving all channel reception needs with a single unit.
●Urban High-Rise Residential Buildings: Solves signal obstruction issues in densely built-up areas; high-gain design ensures stable reception of all available channels.
●Suburban and Rural Homes: Provides professional-grade signal enhancement for remote areas with insufficient signal coverage, extending the reception range.
●Commercial Applications: Multi-room TV systems in hotels, offices, and shops, supporting full-band signal distribution.
●Temporary Event Venues: Temporary TV installations for exhibitions, sporting events, etc., quickly establishing a professional full-band TV reception system.
FAQ
Q: Which TV channels does this antenna support?
A: Supports the 47-862MHz full-band, covering all VHF and UHF digital TV channels, including 4K ultra-high-definition channels.
Q: How well does it perform in cities with strong signals?
A: The product features automatic gain control, automatically reducing the amplification factor in areas with strong signals to prevent signal overload and image distortion.
Q: What precautions should be taken during installation?
A: We recommend placing it near a window or exterior wall, away from metal objects and electronic devices. After installation, please perform a channel scan to optimize reception.
Q: How durable is the ABS material?
A: Made of high-strength ABS engineering plastic, it has passed operating temperature tests from -40℃ to 85℃, is impact-resistant and anti-aging, ensuring long-term stable use.
Q: Is professional installation required?
A: No professional installation is required. The standard IEC interface is plug-and-play, and a 3-meter cable is included, allowing users to easily install it themselves.
Q: What is the product's power consumption?
A: Extremely low power consumption, approximately 3-5W under normal operating conditions. Energy-saving and environmentally friendly, it can be used continuously.
Frequency Range (MHz) | 47-862 |
Bandwidth (MHz) | 70 |
Input Impedence (Ω) | 75 |
V.S.W.R | ≤ 1.5 |
Gain (dBi) | 25-28 |
Polarization | Vertical |
Power Capacity (w) | 50 |
Mechanical Specifications | |
Cable Length-m | 3 |
Connect Type | IEC |
Color | Black |
material | ABS |
Working Temp(℃) | -40~85 |
Operation Voltage | AC/110/220V |
Product Introduction
Full-Band High-Gain Coverage, One Unit Receives All Channels
Fully supports the 47-862MHz VHF/UHF full-band, providing an ultra-high gain of 25-28dBi. Stable reception of both local and long-distance signals eliminates signal dead zones.
Professional-Grade Signal Amplification, Dedicated for Weak Signal Areas
Equipped with a high-performance, low-noise amplifier, effectively amplifies weak signals, providing a professional solution for signal reception challenges in remote areas and densely populated areas.
High-Quality ABS Material, Lightweight and Durable
Made of high-strength ABS engineering plastic, lightweight, impact-resistant, and anti-aging. The minimalist black design blends easily into various home environments, combining aesthetics and practicality.
Intelligent Gain Control, Always Clear Picture
Built-in Automatic Gain Control (AGC) circuitry monitors signal strength in real time and automatically adjusts the amplification factor to prevent signal overload and ensure a stable, snow-free picture.
Global Voltage Compatibility, Safe and Reliable
Supports AC 110V/220V global voltage standards and comes with a safety-certified power adapter. Comprehensive overvoltage and overcurrent protection ensures safe use.
Application Scenarios
●Full-band Signal Reception Area: Suitable for areas requiring simultaneous VHF and UHF channel reception, solving all channel reception needs with a single unit.
●Urban High-Rise Residential Buildings: Solves signal obstruction issues in densely built-up areas; high-gain design ensures stable reception of all available channels.
●Suburban and Rural Homes: Provides professional-grade signal enhancement for remote areas with insufficient signal coverage, extending the reception range.
●Commercial Applications: Multi-room TV systems in hotels, offices, and shops, supporting full-band signal distribution.
●Temporary Event Venues: Temporary TV installations for exhibitions, sporting events, etc., quickly establishing a professional full-band TV reception system.
FAQ
Q: Which TV channels does this antenna support?
A: Supports the 47-862MHz full-band, covering all VHF and UHF digital TV channels, including 4K ultra-high-definition channels.
Q: How well does it perform in cities with strong signals?
A: The product features automatic gain control, automatically reducing the amplification factor in areas with strong signals to prevent signal overload and image distortion.
Q: What precautions should be taken during installation?
A: We recommend placing it near a window or exterior wall, away from metal objects and electronic devices. After installation, please perform a channel scan to optimize reception.
Q: How durable is the ABS material?
A: Made of high-strength ABS engineering plastic, it has passed operating temperature tests from -40℃ to 85℃, is impact-resistant and anti-aging, ensuring long-term stable use.
Q: Is professional installation required?
A: No professional installation is required. The standard IEC interface is plug-and-play, and a 3-meter cable is included, allowing users to easily install it themselves.
Q: What is the product's power consumption?
A: Extremely low power consumption, approximately 3-5W under normal operating conditions. Energy-saving and environmentally friendly, it can be used continuously.
