English

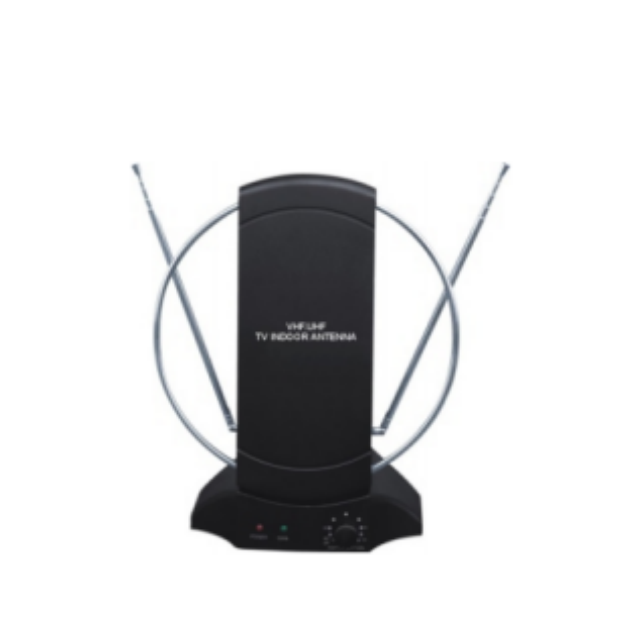

GL6454
Asialeren
8517710000
100pcs
Accepted
10000pcs/day
| Quantity: | |
|---|---|
| PDF Export | |
Frequency Range (MHz) | 47-862 |
Bandwidth (MHz) | 70 |
Input Impedence (Ω) | 75 |
V.S.W.R | ≤ 1.5 |
Gain (dBi) | 23-26 |
Polarization | Vertical |
Power Capacity (w) | 50 |
Mechanical Specifications | |
Cable Length-m | 3 |
Connect Type | IEC |
Color | Black |
material | ABS+steel |
Working Temp(℃) | -40~85 |
Operation Voltage | AC/110/220V |
Product Introduction
1.Professional-grade high-gain amplification, seamless signal reception
Provides 23-26dBi ultra-high gain, equipped with an enhanced low-noise signal amplifier, effectively capturing weak signals, specifically designed for extreme signal environments.
2.Full-band coverage, one unit receives all channels
Fully supports the 47-862MHz VHF/UHF bands, compatible with all digital TV formats including 4K Ultra HD, ensuring no free channels are missed.
3.Reinforced structural design, stable and durable
Utilizes an ABS+steel composite structure, guaranteeing both signal reception performance and superior structural strength and stability, resulting in a longer service life.
4.Active amplification technology, breaking reception limits
Built-in professional-grade signal amplifier actively amplifies the input signal, effectively overcoming signal attenuation issues caused by building obstructions and long-distance transmission.
5.Global voltage compatibility, safe and reliable
Supports AC 110V/220V global voltage standards, equipped with a high-quality power adapter, ensuring safe and stable operation in different countries and regions.
Application Scenarios
●Extremely Weak Signal Environments: Specifically designed for remote rural areas, valleys, and forests with extremely weak signals, solving the problem of traditional antennas being unable to receive signals.
●High-Rise Building Signal Dead Zones: Targets lower-floor residents surrounded by dense high-rise buildings, penetrating multiple concrete obstacles to receive stable signals.
●Professional Audio-Visual Applications: Home theater systems, professional monitoring displays, game streaming, and other professional applications with extremely high signal quality requirements.
●Commercial Multi-Room Distribution: Core signal source for large venues such as hotels, hospitals, and schools that need to distribute TV signals to multiple rooms.
●Emergency Communication Backup: As a backup TV signal reception solution in natural disasters or emergencies, ensuring uninterrupted information acquisition.
FAQ
Q: What is the difference between the GL069 and ordinary active antennas?
A: The GL069 uses enhanced amplifier circuitry and an ABS+steel structure, providing higher gain (26dBi) and better durability, suitable for harsher reception environments.
Q: How to achieve the best results during installation?
A: It is recommended to connect the power supply first but not fix the position. While scanning channels, slowly move the antenna to find the strongest signal point before fixing it in place.
Q: Is it suitable for use in cities with strong signal?
A: The product features automatic gain control, which automatically adjusts in areas with strong signal to avoid overload. However, if the signal is already good, such a high-performance antenna may not be necessary.
Q: Does the steel structure affect signal reception?
A: The steel parts are only for structural support. Key receiving components still use specialized materials to ensure optimal signal reception performance.
Q: How to clean and maintain the product?
A: Simply wipe the surface with a dry, soft cloth. Avoid using chemical cleaners. Ensure the power connector is dry and clean, and regularly check the cable for damage.
Q: Is the product noisy during operation?
A: Utilizing high-quality electronic components and a well-shielded design, it operates with virtually no noise and will not affect your viewing experience.
