GL1307
Asialeren
8517710000
100pc
accepted
10000PC/days
| Quantity: | |
|---|---|
| PDF Export | |
Product NO | GL1307 |
Electric Specifications | |
Frequency rang-MHz | 315 |
Gain -dBi | 2.0 |
VSWR | ≤1.9 |
Input Impedance-Ω | 50 |
Polarization | Vertical |
Max power -W | 50 |
Lightning protection | DC ground |
Connector model | — |
Mechanical Specification | |

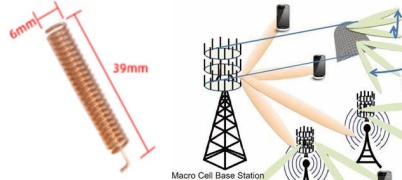

Size -mm | 6*39 |
Antenna weight-g | 1 |
Material | phosphor copper |
Differences between similar antennas
P/N | GL-DY1307 | GL-DY1301 | GL-DY1303 |
Gain | 2.0 | 3.0 | 1.0 |
V.S.W.R. | 1.9 | 1.9 | 1.9 |
Product Introduction
Ultra-Compact Design
6mm x 39mm size and 1g weight make it ideal for space-constrained applications like wearables or compact IoT devices.
High Power Handling (50W)
Supports high-power transmission for industrial wireless controls, ensuring stable communication in noisy environments.
Low VSWR (≤1.9)
Minimizes signal reflection and maximizes efficiency, critical for reliable data transmission in remote control systems.
Robust DC Ground Lightning Protection
Built-in grounding protects against electrical surges, extending lifespan in outdoor or industrial settings.
Premium Phosphor Copper Construction
Offers superior conductivity and corrosion resistance, ensuring long-term durability in humid or harsh conditions.
Smart Home: Integrates with remote controls for garage doors, lighting systems, or security alarms.
Industrial Automation: Wireless communication for machinery controls, sensors, or RFID readers.
Automotive: Keyless entry systems, tire pressure monitoring (TPMS), or vehicle tracking devices.
Agriculture: Soil moisture sensors or livestock tracking in rural environments.
Consumer Electronics: Miniaturized antennas for drones, toys, or wearable tech.
Q:Is this antenna compatible with 433MHz devices?
A:No, it’s optimized for 315MHz frequency only.
Q:Can it be used outdoors without a housing?
A:Yes, the phosphor copper material and DC ground protection resist humidity and mild weather, but avoid direct rain exposure.
Q:Does it require a separate connector?
A:No connector is pre-installed, allowing flexible soldering or integration into custom PCB designs.
Q:What’s the maximum transmission distance?
A:Depends on environment and receiver sensitivity, but typically up to 100-300 meters in open areas.
Q:Is it suitable for high-vibration environments?
A:Yes, the spring design absorbs vibrations, ideal for automotive or machinery applications.
Q:Can it handle continuous 50W power?
A:Yes, but ensure proper heat dissipation for prolonged high-power usage.
Q:Does vertical polarization affect signal range?
A:Vertical polarization enhances line-of-sight communication, ideal for ground-level devices.
Q:Is the antenna RoHS-compliant?
A:Yes, phosphor copper meets RoHS standards for environmental safety.
Product NO | GL1307 |
Electric Specifications | |
Frequency rang-MHz | 315 |
Gain -dBi | 2.0 |
VSWR | ≤1.9 |
Input Impedance-Ω | 50 |
Polarization | Vertical |
Max power -W | 50 |
Lightning protection | DC ground |
Connector model | — |
Mechanical Specification | |
Size -mm | 6*39 |
Antenna weight-g | 1 |
Material | phosphor copper |
Differences between similar antennas
P/N | GL-DY1307 | GL-DY1301 | GL-DY1303 |
Gain | 2.0 | 3.0 | 1.0 |
V.S.W.R. | 1.9 | 1.9 | 1.9 |
Product Introduction
Ultra-Compact Design
6mm x 39mm size and 1g weight make it ideal for space-constrained applications like wearables or compact IoT devices.
High Power Handling (50W)
Supports high-power transmission for industrial wireless controls, ensuring stable communication in noisy environments.
Low VSWR (≤1.9)
Minimizes signal reflection and maximizes efficiency, critical for reliable data transmission in remote control systems.
Robust DC Ground Lightning Protection
Built-in grounding protects against electrical surges, extending lifespan in outdoor or industrial settings.
Premium Phosphor Copper Construction
Offers superior conductivity and corrosion resistance, ensuring long-term durability in humid or harsh conditions.
Smart Home: Integrates with remote controls for garage doors, lighting systems, or security alarms.
Industrial Automation: Wireless communication for machinery controls, sensors, or RFID readers.
Automotive: Keyless entry systems, tire pressure monitoring (TPMS), or vehicle tracking devices.
Agriculture: Soil moisture sensors or livestock tracking in rural environments.
Consumer Electronics: Miniaturized antennas for drones, toys, or wearable tech.
Q:Is this antenna compatible with 433MHz devices?
A:No, it’s optimized for 315MHz frequency only.
Q:Can it be used outdoors without a housing?
A:Yes, the phosphor copper material and DC ground protection resist humidity and mild weather, but avoid direct rain exposure.
Q:Does it require a separate connector?
A:No connector is pre-installed, allowing flexible soldering or integration into custom PCB designs.
Q:What’s the maximum transmission distance?
A:Depends on environment and receiver sensitivity, but typically up to 100-300 meters in open areas.
Q:Is it suitable for high-vibration environments?
A:Yes, the spring design absorbs vibrations, ideal for automotive or machinery applications.
Q:Can it handle continuous 50W power?
A:Yes, but ensure proper heat dissipation for prolonged high-power usage.
Q:Does vertical polarization affect signal range?
A:Vertical polarization enhances line-of-sight communication, ideal for ground-level devices.
Q:Is the antenna RoHS-compliant?
A:Yes, phosphor copper meets RoHS standards for environmental safety.
