GL1309
Asialeren
8517710000
| Quantity: | |
|---|---|
| PDF Export | |
Product NO | GL1309 |
Electric Specifications | |
Frequency rang-MHz | 433 |
Gain -dBi | 2.0 |
VSWR | ≤1.9 |
Input Impedance-Ω | 50 |
Polarization | Vertical |
Max power -W | 50 |
Lightning protection | DC ground |
Connector model | — |
Mechanical Specification | |
Size -mm | 5*21 |
Antenna weight-g | 1 |
Material | phosphor copper |
Product Introduction

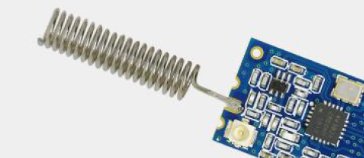

Compact and Lightweight
With dimensions of 5×21mm and a weight of just 1g, this antenna is extremely compact. It can be easily integrated into small - sized devices such as wireless sensors and remote controls without adding significant bulk.
Optimal Gain and Frequency
Operating at 433MHz with a 2.0dBi gain, it provides a good balance between signal strength and coverage. This makes it suitable for short - to - medium range wireless communication applications, ensuring stable signal transmission.
High - Quality Material
Made of phosphor copper, the antenna offers excellent electrical conductivity and durability. It can maintain stable performance over a long service life, even in harsh environments.
Vertical Polarization
Vertical polarization helps in reducing signal interference in many common environments, especially in areas with a lot of horizontal obstructions. It ensures more reliable signal reception and transmission for vertical - oriented communication systems.
Good Power Handling and Protection
With a maximum power handling capacity of 50W and DC ground lightning protection, it can withstand relatively high power inputs and is protected from lightning - induced surges, enhancing the reliability of the overall system.
Application scenarios
Smart Metering: AMR/AMI data collection units
Industrial Sensors: Tank level monitoring in chemical plants
Medical Devices: Wireless patient monitors (IEC 60601-compliant)
Vehicle Telematics: Fleet tracking OBD modules
Home Automation: Garage door controllers / Smart irrigation
Q: Connector installation method?
A: Direct PCB solder (no connector) – provide pad dimensions upon request.
Q: Maximum range in urban areas?
A: 100-300m (depends on receiver sensitivity and obstacles).
Q: Customizable cable attachment?
A: Yes. Specify cable length/type (e.g., RG174) for OEM orders.
Q: Grounding wire specification?
A: 18AWG min. copper wire to earth rod (DC ground terminal provided).
Q: ROHS compliance?
A: Yes. Phosphor copper meets ROHS 2.0/REACH standards.
Q: Operating humidity limit?
A: 95% non-condensing (conformal coating recommended for wet environments).
Q: Gain pattern type?
A: Omnidirectional vertical (radiation pattern diagram available).
