GL136UV15
Asialeren
8517710000
100pc
Accepted
10000pc/day
| Quantity: | |
|---|---|
| PDF Export | |

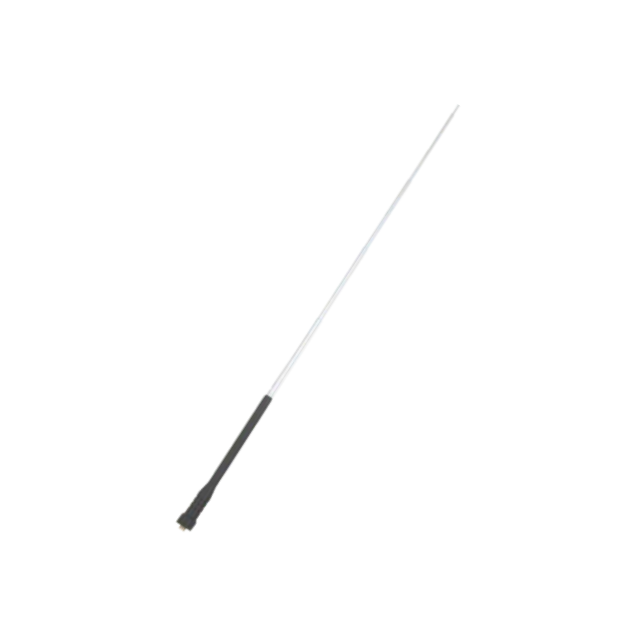

Item | Hand Held Antenna |
PN | GL136UV15 |
Frequency Range (MHz) | 136-173/400-470 |
Impedance (Ω) | 50 |
V.S.W.R | <1.5 |
Gain (dBi) | 3 |
Connector | SMA-K |
Length-mm | 145 |
Weight | 21g |
Product Introduction
Dual-Band Enhanced Design (136-173MHz/400-470MHz)
Utilizing advanced tuning technology, it precisely covers the VHF (136-173MHz) and UHF (400-470MHz) bands, ensuring stable and clear communication in both bands and meeting the requirements of various communication standards.
3dBi High Gain Performance
Compared to the commonly seen 2dBi antennas on the market, the GL136UV15 offers 3dBi gain, effectively enhancing signal transmission and reception capabilities, maintaining longer communication distances and more stable connection quality even in complex environments.
Precision Impedance Matching (VSWR < 1.5)
Through precise circuit design and impedance tuning, the voltage standing wave ratio is strictly controlled within 1.5, minimizing signal reflection and energy loss, ensuring efficient power transmission and clear call quality.
Compact and Rugged Design (145mm/21g)
A high-performance antenna design is achieved within a compact 145mm length, weighing only 21 grams. This ensures both portability and sufficient structural strength, making it suitable for high-intensity outdoor environments.
Universal SMA-K Interface
Equipped with a standard SMA-K (male) interface, it is compatible with most handheld radios and walkie-talkies on the market, offering easy installation, reliable connection, and suitability for rapid deployment and replacement.
Application Scenarios
●Outdoor Adventure and Self-Driving Tours: Provides reliable long-distance communication for mountaineering, hiking, and self-driving tour teams, especially excelling in areas without public network signal.
●Construction Sites and Industrial Inspections: Ensures clear communication for construction teams and inspection personnel in complex industrial environments, improving work efficiency and safety.
●Large-Scale Event Security and Dispatch: Provides stable communication support for event security personnel and staff, ensuring accurate transmission of instructions and on-site coordination.
●Forestry and Agriculture Applications: Helps work teams maintain contact and improve work efficiency in vast forests or farmlands.
●Emergency Rescue and Disaster Response: Provides reliable communication support for rescue teams at disaster sites, ensuring timely transmission of critical information.
FAQ
Q: What frequency bands does the GL136UV15 antenna support?
A: It supports dual bands: 136-173MHz (VHF) and 400-470MHz (UHF).
Q: What is the gain of this antenna?
A: It provides 3 dBi gain, offering better signal performance than standard 2 dBi antennas.
Q: What type of connector does it use?
A: It features an SMA-K (male) connector.
Q: Is this antenna compatible with my Baofeng UV-82 radio?
A: Yes, if your radio has a female SMA connector, the GL136UV15 with SMA-K connector is fully compatible.
Q: How long is the antenna and what does it weigh?
A: It measures 145mm in length and weighs 21 grams.
Q: What is the V.S.W.R specification?
A: The V.S.W.R is less than 1.5, ensuring efficient signal transmission.
