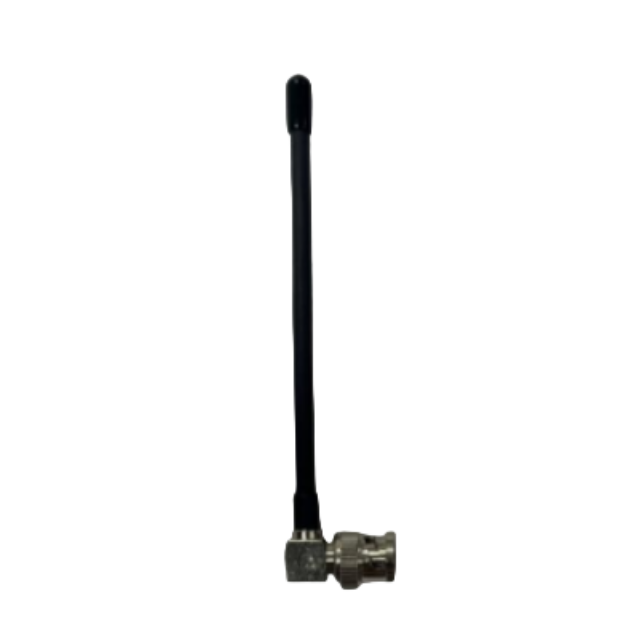

GL-DY547
Asialeren
8517710000
100
Accepted
1000/day
| Quantity: | |
|---|---|
| PDF Export | |
Main Technical Specifications | |
Frequency Range（MHz） | 547-614MHz |
Bandwidth（MHz） | 67MHz |
Gain(dbi) | 3dBi |
VSWR | ≤ 1.5 |
radioactivity | Omni-Direction |
Polarization Type | Vertical |
Input maximum power | 50W |
Input Impedance（Ω） | 50Ώ |
Connector | BNC Male |
Product Material | Copper&PVC |
Antenna dimension | Φ 13x130mm |
weight | 15g |
Operation temperature | -40℃ to+70℃ |
Product Introduction
1. Precise Frequency Optimization, Designed for Dedicated Frequency Bands
Precisely covers the 547-614MHz frequency band, with a 67MHz bandwidth optimized for professional applications such as smart metering and industrial IoT, ensuring optimal performance within the dedicated frequency band.
2. Omnidirectional Radiation Mode, No Dead Zone Signal Coverage
Utilizing an omnidirectional radiation design combined with vertical polarization, it provides 360° uniform signal coverage, ensuring stable connection in any direction.
3. Ultra-Compact and Lightweight Design, Easy Installation
Measuring only Φ13×130mm and weighing 15g, it employs a classic rubber antenna structure, saving space and simplifying installation, making it particularly suitable for space-constrained mobile terminal devices.
4. High-Quality Material Construction, Ensuring Durability
Using a copper core and PVC shell combination, it provides excellent signal conduction performance and physical protection, with an operating temperature range of -40°C to +70°C, adapting to various harsh environments.
5. Superior Electrical Performance, High-Efficiency Signal Transmission
VSWR≤1.5, 50Ω standard impedance matching, 3dBi gain, maximum 5W power input, providing reliable and stable signal transmission and reception performance in a compact size.
Application Scenarios
Smart Metering Systems: Wireless data acquisition terminals for smart water meters, electricity meters, and gas meters
Industrial IoT Monitoring: Factory equipment status monitoring and environmental sensor data transmission
Remote Monitoring Equipment: Signal enhancement for security cameras and remote data acquisition devices
Mobile Terminal Devices: Communication antenna replacement for handheld terminals and inspection equipment
Dedicated Communication Systems: Dedicated wireless communication equipment suitable for the 547-614MHz frequency band
FAQ
Q: What is the specific frequency range of this antenna?
A: It operates in the 547-614MHz range, ideal for specialized industrial and IoT applications.
Q: What connector type does it use?
A: It features a BNC male connector, providing secure and reliable connections.
Q: Is this antenna suitable for outdoor use?
A: Yes, with an operating temperature range of -40°C to +70°C, it performs reliably in both indoor and outdoor environments.
Q: What is the practical benefit of the omnidirectional pattern?
A: The omnidirectional pattern ensures consistent signal coverage in all directions, eliminating the need for precise antenna orientation.
Q:How does the compact size benefit installation?
A: The small Φ13×130mm size and lightweight 15g design make it ideal for space-constrained applications and mobile devices.
Q:What makes this antenna suitable for industrial environments?
A: The copper core construction and wide temperature tolerance ensure reliable performance in demanding industrial settings.
