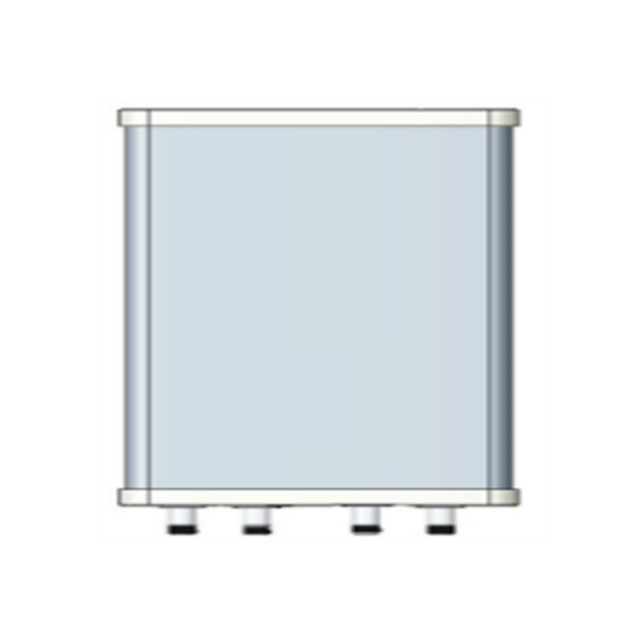

PVC radome 12dBi directional 5G Panel Antenna for outdoor

5G panel antenna

Differences between similar products

Product introduction

1.High 12dBi Gain – Delivers exceptional directional coverage and signal strength for 5G CPE and base station connections.

2.±45° Dual Polarization – Supports 4×4 MIMO, significantly improving spectral efficiency and data throughput.

3.Ultra-Low VSWR ≤1.5 – Minimizes signal loss and ensures excellent impedance matching for 5G bands.

4. 4× 4.3-10 Female Connectors – Enables easy integration with modern 5G radios and low-loss cable assemblies.

5. Robust Outdoor Design – PVC radome, DC ground lightning protection, and -40°C to +65°C operation ensure reliability in harsh environments.

Application Scenarios

●5G NR Outdoor CPE – Provides high-gain directional link to 5G macro cells for fixed wireless access (FWA).

●Private 5G Networks – Ideal for industrial campuses, ports, and mining sites requiring reliable high-bandwidth connectivity.

●Small Cell Backhaul – Used as a donor antenna for millimeter-wave or sub-6 GHz backhaul links.

●Live Broadcasting & Events – Delivers low-latency 5G connectivity for video transmission and stadium applications.

●Remote Area Coverage – Extends 5G signal to rural or hard-to-reach locations where tower signals are weak.

FAQ

Q:What frequency bands does this antenna support?

A:It covers 3300–3800 MHz, which includes 5G n77, n78, and some C-band deployments.

Q: What is the antenna gain?

A:The gain is 12dBi, providing focused directional coverage for long-range or weak-signal environments.

Q: What connectors are used?

A:It has four 4.3-10 female connectors – a standard for low PIM and high-power 5G applications.

Q: Is this antenna suitable for 4x4? MIMO?

A:Yes, the ±45° dual polarization design with 4 ports fully supports 4×4 MIMO to double data rates.

Q: What is the beamwidth?

A:Both horizontal and vertical beamwidths are 30°±6°, offering a narrow, highly directional pattern.

Q: Is the antenna weatherproof?

A:The PVC radome provides UV resistance and protects against rain, dust, and snow. It is designed for outdoor use.
