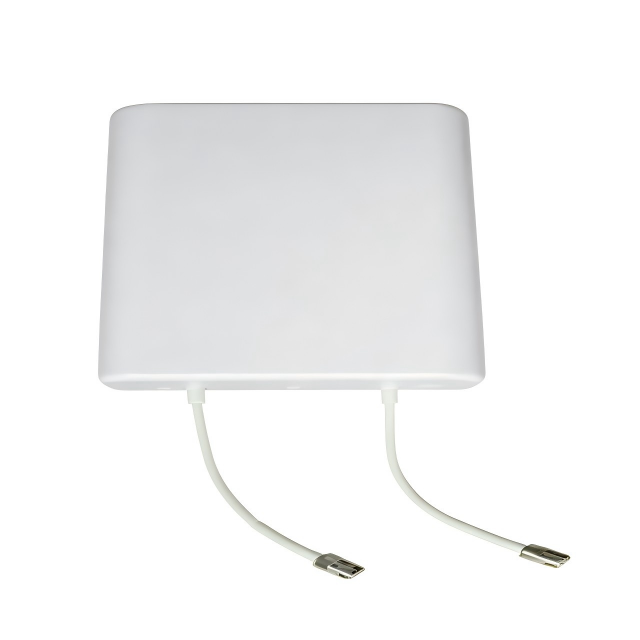

Wall-mount MIMO Panel Antenna for 5G Applications GL0738BJA-M

Differences between similar antennas

Product Introduction

① Tri-band 5G Full Compatibility

698-960MHz + 1710-2700MHz + 3300-3800MHz tri-band coverage, covering the entire 4G/5G Sub-6GHz band (compatible with n78/n1/n3, etc.), allowing a single device to adapt to future network upgrades.

② Directional High-Gain Anti-Interference

7dBi peak gain + 85° horizontal beam angle precisely focuses the signal, coupled with ≥15dB front-to-back ratio to isolate back-scattered interference, improving concrete wall penetration by 40%.

③ ±45° Dual Polarization Advanced Technology

Dual polarization design enhances multipath signal reception, with ultra-low intermodulation distortion (IM3) ≤ -150dBC, ensuring zero packet loss in high-density scenarios (such as factories and hospitals).

④ Industrial-grade Reliable Design

50W power handling + wide operating temperature range from -40°C to 60°C, ABS radiation-proof housing with RoHS certification, and a lifespan exceeding 10 years for 24/7 continuous operation.

⑤ Simplified Integrated Deployment

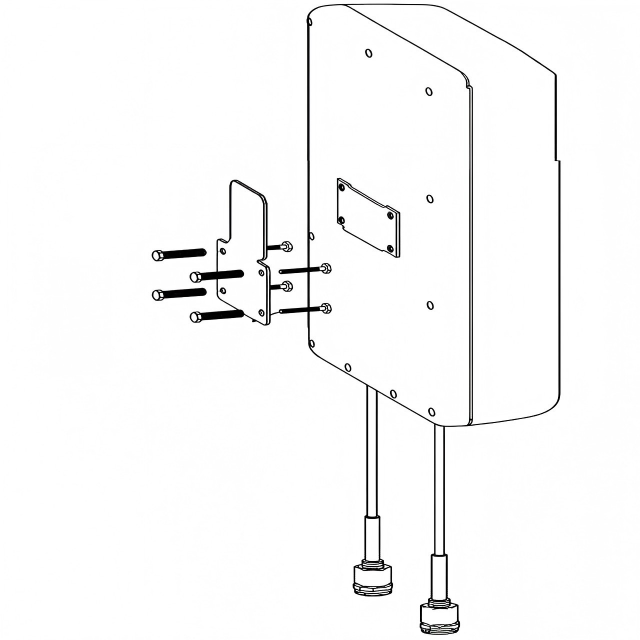

A slim 320×210×73mm design with dual wall-mount and rack-mount options, supports dual 4.3-10 and N-type interfaces, and completes 5G CPE/gateway docking in 5 minutes.

Application Scenarios

Smart Factory: Signal enhancement for AGV real-time dispatch systems

Telemedicine: Zero-latency 4K image transmission in operating rooms

Smart Warehousing: Stable network connectivity for barcode scanners in high-bay rack areas

Digital Education: Seamless coverage for VR equipment in lecture halls

Enterprise Office: Latency-free video conferencing in conference rooms

Underground Facilities: Emergency communication relay for parking lots and subway stations

FAQ

Q: Can it be used outdoors?

A: The housing is only IP30 rated (not waterproof) and has a maximum operating temperature of 60°C. It is intended for indoor use only. For outdoor use, select the GL-Outdoor series.

Q: How should I choose between a 4.3-10 or N-type interface?

A: The 4.3-10 interface is smaller and suitable for dense deployments, while the N-type interface offers greater power handling. The default interface can be specified before shipment; if not specified, the 4.3-10 interface will be shipped.

Q: Does it need to be paired?

A: A single antenna will work, but it's recommended to pair them with the same model to form a MIMO system (2×2 or 4×4), which can increase data rates by 200%.

Q: Will metal ceilings affect performance?

A: They must be installed at least 30cm away from any metal surface, or elevated using our MA-01 magnetic mount to avoid signal attenuation.

Q: Why is it labeled "directional" but the specifications say ±45° polarization?

A: Directional refers to the focused radiation direction, while ±45° polarization refers to the direction of signal vibration. These two work together to improve multi-device concurrency.
