Product Introduction
1. Wide-Spectrum Multi-Band Signal Coverage

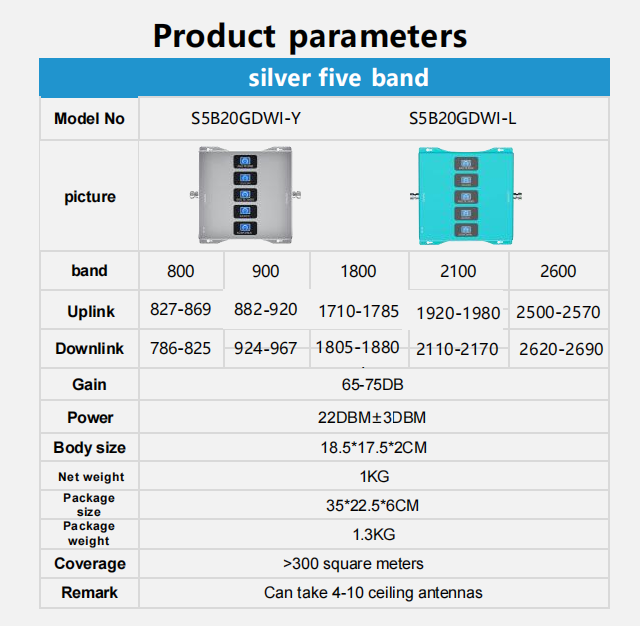

The device supports multiple core frequency bands including 800MHz, 900MHz, 1800MHz, 2100MHz, and 2600MHz, fully compatible with 2G, 3G, 4G, and even some 5G signals, ensuring stable and powerful signal enhancement across different operator networks.
2. Ultra-High Gain, Powerful Amplification
The amplifier offers an impressive gain of up to 65-75dBi, effectively capturing and amplifying extremely weak outdoor signals, specifically designed to solve communication challenges in environments with extremely weak signals, such as signal dead zones, remote areas, or deep within buildings.
3. Professional-Grade Components, Guaranteed Signal Quality

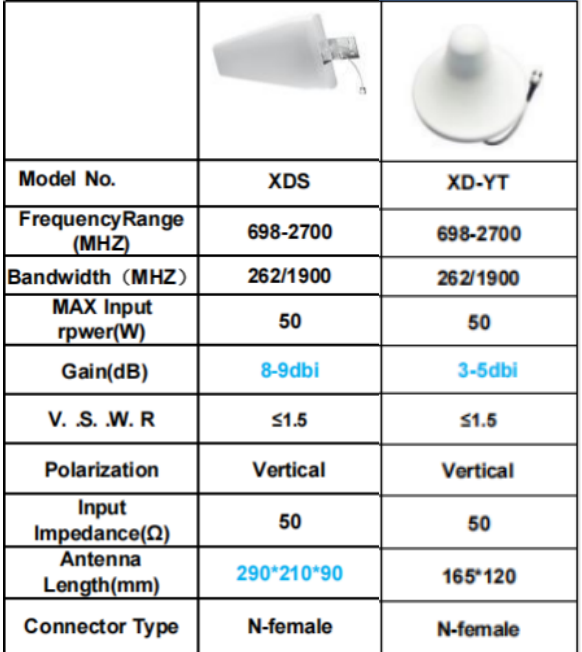

The kit includes a high-gain (8-9dBi) outdoor patch antenna and an omnidirectional (3-5dBi) indoor ceiling antenna, and comes standard with a 60-meter ultra-low-loss LMR400 cable and an N-type connector, minimizing signal attenuation during transmission and ensuring lossless signal strength transmission.
4. All-in-one kit, ready to use: The product provides a complete solution including amplifier, internal and external antennas, all cables, mounting hardware, and power plug. Users do not need to purchase any additional accessories; installation can be completed directly from the box by following the manual, saving time and effort.
5. Flexible deployment, suitable for various scenarios: The outdoor antenna provides directional reception of high-quality signals, while the indoor antenna provides uniform coverage. This combination can flexibly adapt to various complex building structures such as residences, offices, shops, and warehouses, achieving precise indoor signal coverage.
Application Scenarios:
Rural and remote residential areas: Solves problems such as weak mobile signal, intermittent calls, and inability to access the internet caused by distance from base stations.
Large urban office buildings/hotels: Penetrates building walls to provide stable voice and data signals for conference rooms, underground garages, and deep within rooms.
Suburban villas and ground-floor apartments: Enhances cellular signals blocked by the surrounding environment or building structure, ensuring quality home communication.
Small businesses, shops, and warehouses: Ensures uninterrupted mobile communication in office areas, business premises, and large warehouse spaces, without affecting business contacts and mobile payments.
Temporary event venues: Quickly establish a reliable mobile communication environment for temporary event venues such as exhibitions and celebrations.
FAQ
Q: Which mobile operators and frequency bands is this booster compatible with?
A: It supports major bands between 698-2700MHz, covering services from most operators like 2G (GSM), 3G, and 4G LTE. Please check your local operator's bands for compatibility.
Q: What is the total coverage area of this kit?
A: The coverage depends on the incoming signal strength and building materials. Typically, this high-gain kit is suitable for medium to large areas such as entire homes, offices, or small warehouses.
Q: Is professional installation required?
A: No, it's designed for user installation. The kit includes a manual and all necessary components. The key is to place the outdoor antenna in a location with the best possible signal.
Q: Why does the kit include two different types of antennas?
A: The high-gain Patch Antenna is for outdoor use to optimally capture the weak signal. The Ceiling Antenna is for indoor use to broadcast the amplified signal evenly throughout the area.
Q: What is the total length of the cable provided?
A: The kit includes two 30-meter sections of high-quality LMR400 cable, one for connecting the outdoor antenna to the amplifier, and another for connecting the amplifier to the indoor antenna.
Q: Are the cables and connectors included?
A: Yes, the package is complete. It includes all required LMR400 cables, N-type connectors, and even mounting screws for a ready-to-install experience.
