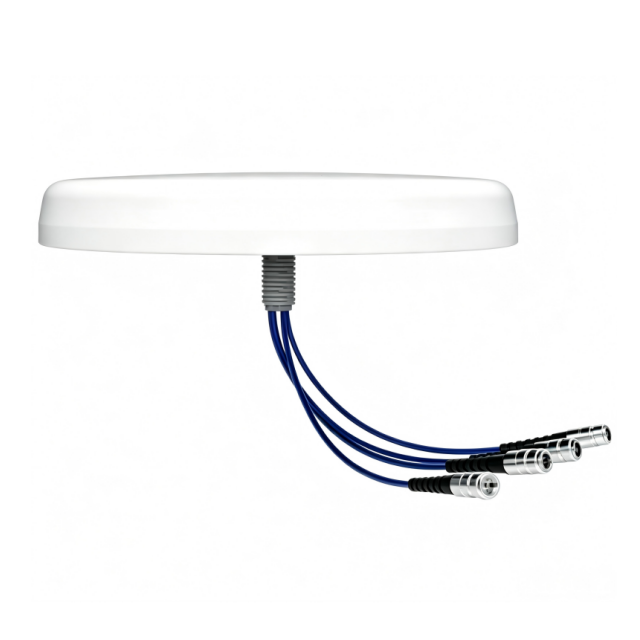

GL-DY7040V4-3
asialeren
85177100000
50pc
Accepted
10000pc/day
| Quantity: | |
|---|---|
| PDF Export | |
Electrical Specifications | |||
Frequency Range-0MHz | 698-960 | 1710-2700 | 3400-4000 |
VSWR | ≤2.0 | ≤2.0 | ≤2.0 |
Gain- dBi | 2.5 | 3 | 4d |
Horizontal beam width | 360° | 360° | 360° |
Vertical beam width | 65° | 55° | 50° |
Polarization | Horizontal | ||
Input Impedance-Ω | 50 | ||
Isolation between ports- dB | ≥18 | ≥15 | ≥25 |
Intermodulation IM3 (2x33dBm)- dBc | ≤-150 | ||
Maximum input power- W | 50 | ||
Lightning protection | DC Ground | ||
Mechanical Specifications | |||
Input connector type | 4×N-K | ||
Dimensions- mm | Φ350×40 | ||
Antenna weight- kg | 1.2 | ||
Radiating Element Material | PCB | ||
Radome material | ABS | ||
Radome color | White | ||
Operating temperature | -40°C to +65 °C | ||
Supports multiple communication bands including 700MHz, 800MHz, 900MHz, 1800MHz, 2100MHz, 2600MHz, 3500MHz, and 5G NR bands, reducing the need for multiple antennas.
Equipped with four N-Female connectors to support MIMO communication systems, enhancing network capacity, throughput, and signal reliability for modern LTE and 5G deployments.
Provides uniform horizontal coverage with a full 360-degree radiation pattern, ensuring stable signal reception throughout indoor environments.
Features IM3 ≤ -150dBc and excellent port isolation performance, minimizing interference and improving overall network quality in dense wireless systems.
Constructed with a UV-resistant ABS radome and lightweight structure, offering long-term durability, easy installation, and an aesthetically pleasing appearance for indoor ceilings.
Enhances wireless coverage in commercial buildings, offices, and enterprise environments.
Provides reliable LTE and 5G signal distribution for customers and smart retail applications.
Ensures continuous mobile connectivity in large public indoor areas.
Improves indoor cellular signal quality for guests, staff, and critical communication services.
Supports industrial campuses, smart factories, warehouses, and enterprise wireless infrastructure.
Differences between similar antennas
P/N | GL-DY7040v43 | GL-DY6030v3 | GL-DY6070v3 |
Gain | 2.5-4 | 2.5-5 | 2.5-4 |
V.S.W.R. | 2.0 | 1.8 | 1.8 |
FAQ
Q:What frequency bands does this antenna support?
A:The antenna covers a wide frequency range of 698MHz to 4000MHz, supporting multiple LTE and 5G bands.
Q:Is this antenna suitable for 5G applications?
A:Yes. It supports the 3400-4000MHz band commonly used for 5G NR deployments.
Q:What type of antenna is it?
A:It is an omnidirectional ceiling-mounted indoor DAS antenna designed for distributed signal coverage.
Q:How many antenna ports does it have?
A:The antenna features 4 N-Female (N-K) ports, enabling MIMO configurations.
Q:Can it be used in commercial buildings?
A:Yes. It is widely used in offices, shopping malls, hotels, airports, hospitals, and other indoor venues.
Q:What is the maximum input power?
A:The maximum input power is 50W.
