Multi-Band 2G/3G/4G/5G 5dBi 4T4R MIMO Omnidirectional Antenna

1. Multi-band Coverage: Supports 617–960MHz, 1710–2700MHz, 3300–4200MHz, and 4900–6000MHz, compatible with 2G/3G/4G/5G and WLAN networks.

2. High Gain and Omnidirectional Radiation: 360° horizontal coverage and 85°~28° vertical coverage, ensuring uniform signal distribution and stable connection.

3. Rugged and Durable Design: ABS protective shell, IP65 waterproof and dustproof, resistant to temperatures from -40 to 60℃ and wind speeds up to 40 m/s in outdoor environments.

4. Flexible Installation: Bottom N-type connector, customizable cable length up to 50cm, compatible with mounting poles from 30 to 50mm in diameter.

5. Lightweight and Convenient: The antenna weighs only 1.1kg, facilitating transportation and installation, and also supports customized needs.

Application Scenarios

●Rural 5G/LTE Broadband Coverage – Mount on towers or poles to provide 360° 4x4 MIMO connectivity for remote homes and farms.

●Outdoor Public Wi-Fi Hotspots – Deploy in parks, stadiums, or plazas for high-capacity WLAN backhaul with omnidirectional reach.

●Industrial IoT & Smart Grid – Reliable multi-band communication for sensors, monitors, and automation devices in factories or power substations.

●Temporary Emergency Communication – Fast-deploy on portable masts for disaster relief or event coverage requiring 2G/3G/4G/5G interoperability.

●Small Cell Backhaul Enhancement – Supplement macro cells in dense urban canyons or underground passages where 360° coverage is critical.

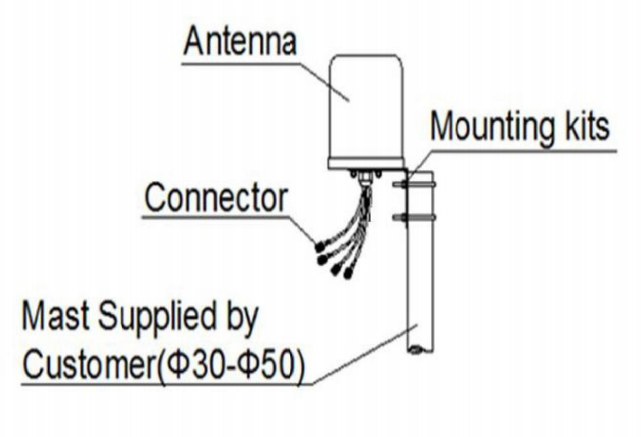

Installation Sketch

FAQ

Q:What frequency bands does this antenna support?

A:It covers 617–960MHz, 1710–2700MHz, 3300–4200MHz, and 4900–6000MHz, compatible with 2G/3G/4G/5G and WLAN (including 5GHz).

Q:Is it truly omnidirectional?

A:Yes, the horizontal beamwidth is 360° with typical vertical beamwidth varying per band (85°/70°/55°/28°), ensuring uniform coverage in all directions.

Q:What is the maximum gain?

A:Gain is 3dBi (617-960MHz) and 5dBi for the other three bands (based on 30cm cable length).

Q:Can I use it outdoors in heavy rain?

A:Yes, it is rated IP65 (after blocking the water outlet hole). It withstands water jets and dust, operating from -40°C to +60°C.

Q: What connectors are included?

A:Standard configuration: 4x N Female connectors with 50cm custom cables. Other connector types or cable lengths are available upon request.

Q:What pole size fits this antenna?

A:The included bracket suits pole diameters from Φ30mm to Φ50mm.
