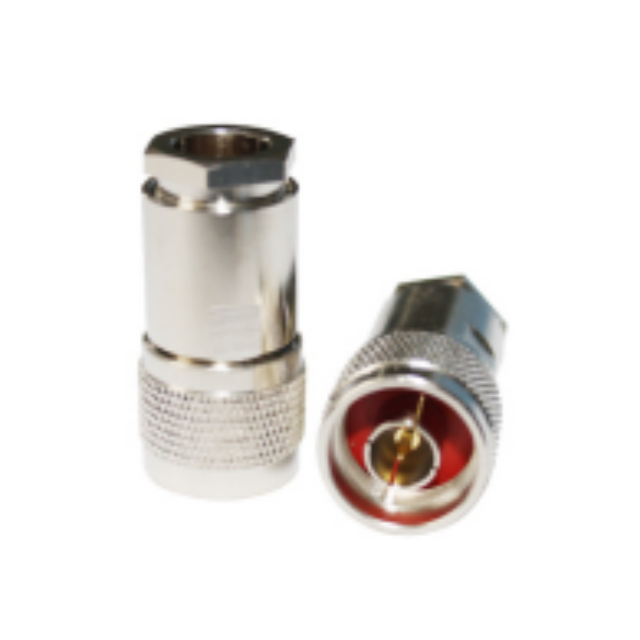

GL-NJ7D
Asialeren
8517710000
100pc
Accepted
10000pc/day
| Quantity: | |
|---|---|
| PDF Export | |
Frequency Range(GHz) | 10 |
Impedance(ohm) | 50 |
VSWR | 1.10 |
Test voltage(max) | 2500 V |
PIM(3rd order) | ≤-160 dBc @ 2 x 20 W |
Mating Cycles | ≥ 500 |
Coupling Torque | Max 1.7 Nm |
Recommended Coupling Torque | 0.7-1.1 Nm |
Temperature Range | -55℃-+155℃ |
Outer Contact | Brass CuSnZn Plating |
Center Contact | Brass Ag Plating |
Cable Group | N/A |
Plating | CuSnZn |
Length(mm) | Ф20*35.5*10.6 |
1. Features 10GHz frequency bandwidth and 50Ω standard impedance, realizing seamless and high-fidelity high-frequency signal transmission.
2. Equipped with ultra-low VSWR (1.10) and 3rd-order PIM ≤-160dBc @ 2x20W, effectively suppressing signal distortion and cross-interference.
3. Premium material selection: Outer contact with Brass CuSnZn plating and center contact with Brass Ag plating, ensuring strong conductivity and long-term anti-corrosion.
4. Boasts ≥500 mating cycles, paired with 0.7-1.1Nm recommended coupling torque (max 1.7Nm) for stable connection in frequent use scenarios.
5. Excels in extreme environment adaptability, withstanding -55℃ to +155℃ temperature range and 2500V max test voltage for industrial reliability.
Application Scenarios
1. 5G macro base stations and telecom backhaul systems for high-speed signal relay and transmission.
2. Microwave communication equipment requiring stable 10GHz band signal connections in outdoor harsh conditions.
3. Precision electronic test benches (spectrum analyzers, vector network analyzers) for accurate signal measurement.
4. Naval and airborne military communication devices operating in extreme temperature and high-voltage environments.
5. Industrial IoT infrastructure and smart factory wireless communication modules needing anti-interference signal links.
FAQ
Q: What frequency range does the GL-NJ7D connector support?
A: It covers up to 10GHz frequency range, perfect for high-performance high-frequency applications.
Q: What makes this N Type connector stand out in signal quality?
A: With VSWR 1.10 and ≤-160dBc PIM, it minimizes signal loss and interference for clear transmission.
Q: How durable is the GL-NJ7D in repeated connections?
A: It supports ≥500 mating cycles, maintaining reliable performance even with frequent plugging and unplugging.
Q: What torque should be used when installing this connector?
A: The recommended coupling torque is 0.7-1.1Nm, with a maximum limit of 1.7Nm for secure installation.
Q: Is the GL-NJ7D suitable for outdoor industrial use?
A: Yes, its -55℃ to +155℃ temperature tolerance and 2500V voltage resistance make it ideal for outdoor harsh industrial environments.
Q: What plating materials are used for the connector’s contacts?
A: The outer contact uses Brass CuSnZn plating, and the center contact uses Brass Ag plating to ensure optimal conductivity.
