GL400V-2
Asialeren
8517710000
5pc
Accepted
10000pc/day
| Quantity: | |
|---|---|
| PDF Export | |
| |
Frequency Range | 150-400MHz |
VSWR | ≤3.0 |
Gain | 2dBi |
Horizontal beam width | 360° |
Vertical beam width | 30° |
Polarization | Vertical |
Input Impedance | 50Ω |
Maximum input power | 50W |
Lightning protection | DC Ground |
Mechanical Specifications | |
Input connector type | N female |
Connector location | bottom |
Dimensions | Ф35×600mm |
Antenna weight | 0.5kg |
Radome material | fiberglass |
Radome color | Gray |
Operating temperature | -40°c～60°c |
Rated Wind Velocity | 60 m/s |
Installation | Use with suction cups and other mounting bases |

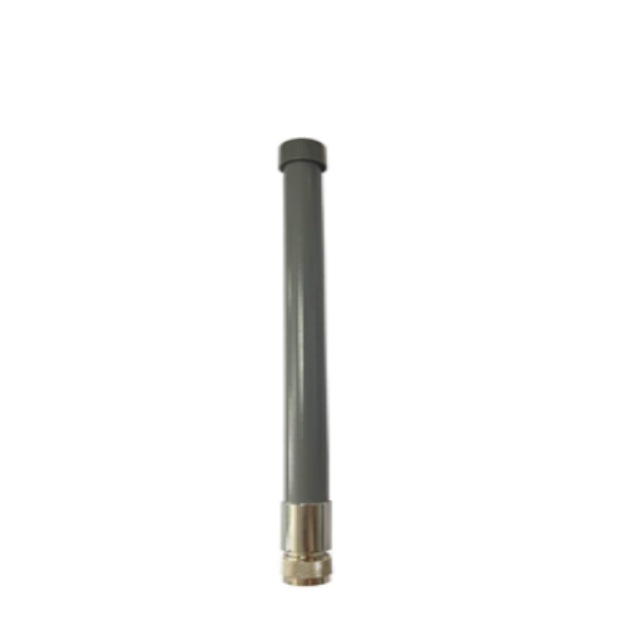

Product Introduction
① Wideband Omnidirectional Coverage
Supporting the 150–400MHz frequency band, it features a 360° horizontal beamwidth, providing signal coverage without blind spots and suitable for a variety of VHF/UHF communication systems.
② Rugged and Durable for Harsh Environments
Featuring a fiberglass antenna cover with a gray, UV-resistant exterior, it operates in temperatures from -40°C to 60°C and withstands wind speeds up to 60m/s, making it suitable for long-term outdoor use.
③ Flexible Installation, Ready to Install
An N-type female connector on the bottom and a standard mounting base such as a suction cup allow for quick deployment on vehicles, vessels, or fixed platforms, making it suitable for a variety of scenarios.
④ Efficient Lightning Protection and Stable Transmission
Built-in DC grounding lightning protection, a maximum input power of 50W, and a voltage standing wave ratio of ≤3.0 ensure device safety and signal integrity.
⑤ Lightweight Design and Excellent Electrical Performance
Weighing only 0.5kg and measuring Φ35×600mm, the antenna is easy to carry and install. Vertical polarization and 2dBi gain ensure clear and stable communication over short and medium distances.
Application Scenarios
Ship and Maritime Communications: As a shipboard antenna, it is used for VHF communication and monitoring at sea.
Farm and Mining Communications: Covers a wide area and supports intercommunication between mobile terminals.
Emergency Communications and Public Safety: Suitable for mobile vehicle systems such as fire and police vehicles.
Industrial Remote Control and Data Acquisition: Used for remote SCADA and IoT sensor backhaul.
Amateur Radio and Repeater Station: As an omnidirectional antenna for fixed stations, it improves signal coverage.
FAQ
Q: What is the frequency range supported by this antenna?
A: It supports 150–400 MHz, covering VHF and parts of the UHF band, making it suitable for a variety of professional communication systems.
Q: Is the antenna omnidirectional or directional?
A: It is an omnidirectional antenna with a 360° horizontal beamwidth, providing uniform coverage.
Q: What is the gain? Is it suitable for long-distance communications?
A: With a gain of 2 dBi, it is suitable for full coverage of short and medium-range communications, but not for ultra-long-range point-to-point transmission.
Q: What is the interface type? Is an adapter required?
A: The connector is N-type female. If your device's connector doesn't match, you'll need to use the appropriate adapter.
Q: Is it lightning-proof?
A: It supports DC grounding for lightning protection, effectively preventing damage from induced lightning strikes.
Q: What is the operating temperature range of the antenna?
A: The operating temperature is -40°C to 60°C, making it suitable for most outdoor environments.
| |
