GL-DY127
Asialeren
8517710000
100pcs
Accepted
10000pcs/day
| Quantity: | |
|---|---|
| PDF Export | |
Frequency range（MHz） |
|
Gain（dBi） | 3 |
Polarization | Vertical |
Impedance (Ω) | 50 |
Max Power (W) | 50 |
VSWR | ≤2.0 |
2 Mechanical specifications
Connector | IPEX |
Dimensions(mm) | 50x15 |
| install way | adhesive |
Cable | RG1.13/RG1.37 |
Temperature (℃) | -30~60 |
Humidity (%) | 5~95 |
3 pattern
Differences between similar products
P/N | GL-DY130 | GL-DY127 | GL-DY128 |
Frequency-Mhz | 2400~2500 | 2400~2500 | 2400~2500/4900~5900 |
Gain-dBi | 2.5 | 3 | 3 |
Antenna Dimension-mm | 48*7.3*0.6 | 50x15 | 42x12 |
Product Introduction
Dedicated 2.4GHz Performance: Optimized for 2400-2500MHz band (WiFi 4/5, Bluetooth, Zigbee) with ≤2.0 VSWR for minimal signal loss in crowded RF environments.
High-Power Handling: Supports up to 50W transmission – ideal for data-intensive devices like industrial routers or remote sensors.
Space-Saving Design: Compact 50x15mm form factor fits confined spaces in wearables, handheld scanners, and mini-PCs.
Industrial-Grade Reliability: Operates in -30°C to 60°C and 5-95% humidity for harsh factory/outdoor environments.

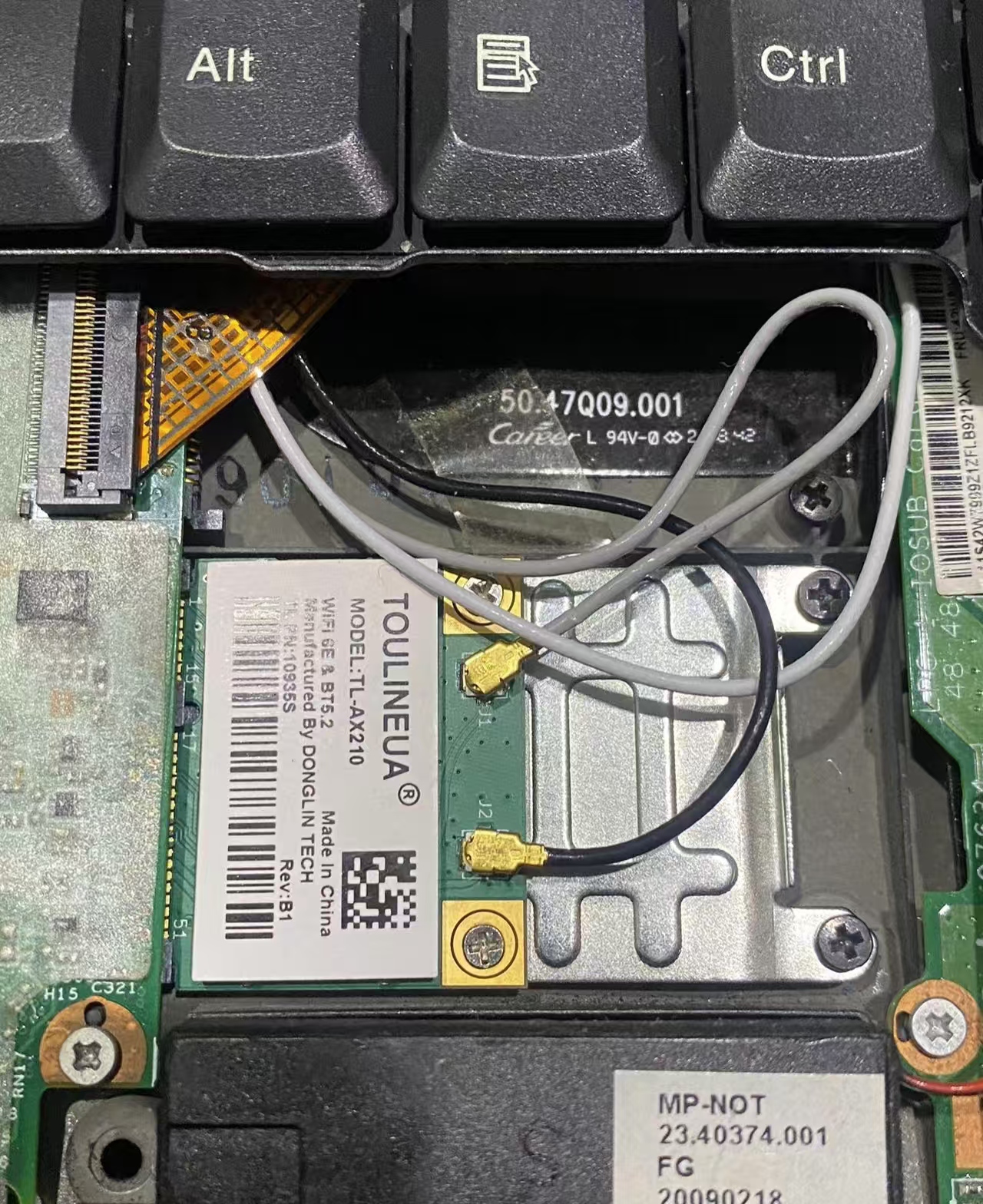

Easy Integration: Pre-terminated RG1.13/RG1.37 cables with IPEX connector enable plug-and-play installation for rapid prototyping.
Application scenarios
Smart Factory: Machine sensors, AGV communication.
Retail: Barcode scanners, wireless POS systems.
Medical: Portable patient monitors, infusion pumps.
Smart Agriculture: Soil moisture sensors, livestock trackers.
Consumer Electronics: Wireless toys, smart home remotes.
Q: Does this support Bluetooth/Zigbee?
A: Yes! The 2.4GHz band covers Bluetooth 5.0, Zigbee 3.0, and Thread.
Q: Why choose single-band over dual-band?
A: Lower cost/power consumption for devices only needing 2.4GHz .
Q:Is the IPEX connector compatible with U.FL?
A: Yes – IPEX/U.FL are identical connectors.
Q: What’s the radiation pattern?
A: Omnidirectional vertical polarization for 360° coverage.
Q:Can I use RG1.37 instead of RG1.13?
A: Yes – specify when ordering. RG1.37 has thicker shielding for slightly better durability.
Q: Why 3dBi gain?
A: Ideal balance for compact devices – higher gains require larger antenna sizes.
Q: Is it waterproof?
A: Not IP-rated. For outdoor use, add external protection.
Q: Maximum cable extension length?
A: Keep ≤30cm to avoid signal degradation. Use RF amplifiers for longer runs.
Frequency range（MHz） |
|
Gain（dBi） | 3 |
Polarization | Vertical |
Impedance (Ω) | 50 |
Max Power (W) | 50 |
VSWR | ≤2.0 |
2 Mechanical specifications
Connector | IPEX |
Dimensions(mm) | 50x15 |
| install way | adhesive |
Cable | RG1.13/RG1.37 |
Temperature (℃) | -30~60 |
Humidity (%) | 5~95 |
3 pattern
Differences between similar products
P/N | GL-DY130 | GL-DY127 | GL-DY128 |
Frequency-Mhz | 2400~2500 | 2400~2500 | 2400~2500/4900~5900 |
Gain-dBi | 2.5 | 3 | 3 |
Antenna Dimension-mm | 48*7.3*0.6 | 50x15 | 42x12 |
Product Introduction
Dedicated 2.4GHz Performance: Optimized for 2400-2500MHz band (WiFi 4/5, Bluetooth, Zigbee) with ≤2.0 VSWR for minimal signal loss in crowded RF environments.
High-Power Handling: Supports up to 50W transmission – ideal for data-intensive devices like industrial routers or remote sensors.
Space-Saving Design: Compact 50x15mm form factor fits confined spaces in wearables, handheld scanners, and mini-PCs.
Industrial-Grade Reliability: Operates in -30°C to 60°C and 5-95% humidity for harsh factory/outdoor environments.
Easy Integration: Pre-terminated RG1.13/RG1.37 cables with IPEX connector enable plug-and-play installation for rapid prototyping.
Application scenarios
Smart Factory: Machine sensors, AGV communication.
Retail: Barcode scanners, wireless POS systems.
Medical: Portable patient monitors, infusion pumps.
Smart Agriculture: Soil moisture sensors, livestock trackers.
Consumer Electronics: Wireless toys, smart home remotes.
Q: Does this support Bluetooth/Zigbee?
A: Yes! The 2.4GHz band covers Bluetooth 5.0, Zigbee 3.0, and Thread.
Q: Why choose single-band over dual-band?
A: Lower cost/power consumption for devices only needing 2.4GHz .
Q:Is the IPEX connector compatible with U.FL?
A: Yes – IPEX/U.FL are identical connectors.
Q: What’s the radiation pattern?
A: Omnidirectional vertical polarization for 360° coverage.
Q:Can I use RG1.37 instead of RG1.13?
A: Yes – specify when ordering. RG1.37 has thicker shielding for slightly better durability.
Q: Why 3dBi gain?
A: Ideal balance for compact devices – higher gains require larger antenna sizes.
Q: Is it waterproof?
A: Not IP-rated. For outdoor use, add external protection.
Q: Maximum cable extension length?
A: Keep ≤30cm to avoid signal degradation. Use RF amplifiers for longer runs.
