GL1626VH33-20
Asialeren
8517710000
5pc
Accepted
10000pc/day
| Quantity: | |
|---|---|
| PDF Export | |

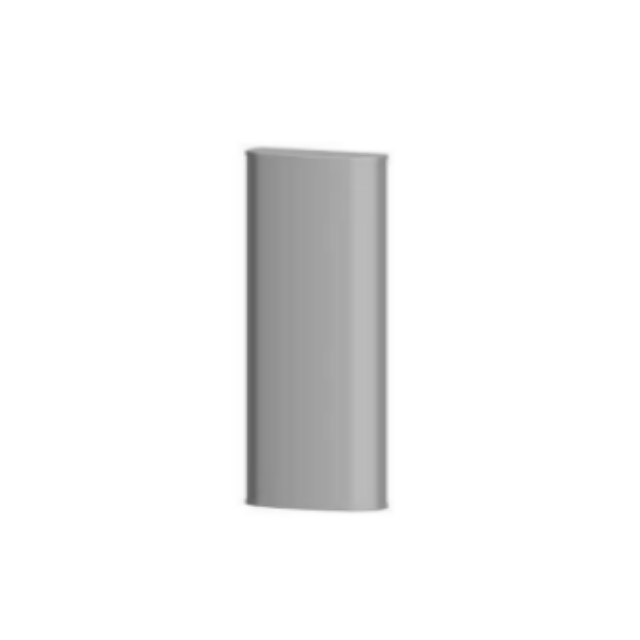

1695-2690MHz single band-2 ports Panel Antenna | |
GL1626VH33-20 | |
Electrical Specifications | |
Frequency Range-MHz | 1695-2690 |
Polarization | ±45° |
Intermediate inclination gain | 20 |
Gain-dBi | 20.3±0.3 |
Horizontal 3dB beam width | 33±5 |
Vertical 3dB beam width | 33±5 |
Front-to-back ratio-dB | ≥25 |
Cross polarization | >15(±60°≥8) |
Electrical Down-tilt | / |
Sidelobe suppression for first sidelobe above horizon | ≥15 |
VSWR | <1.5 |
Isolation | ≥28 |
Third order intercept | ≤-105 |
Port impedance | 50 |
Maximum output power per port | 300 |
Type of electric modulation | / |
Electrically modulated interface | / |
Lightning protection | DC Ground |
Mechanical Specifications | |
Input connector type | 4.3-10Female*2 |
Connector place | Bottom |
Dimensions-mm | 1450*280*90 |
Packing size-mm | The actual situation shall prevail. |
Antenna weight-kg | 30 |
wind load Front/side/back | 949/326/1127 |
Mounting piece Weight | 3 |
Weight after packing | 33 |
Radome material | High quality FRP |
Radome color | White |
Mechanical tilt | 0～15° |
Operating temperature | -50°C~65°C |
Rated Wind Velocity-m/s | 60 |
Mounting hardware -mm | ￠50～￠115 |
Mounting part type | 51AA |
Product Introduction
1. High-band, high-gain performance meets high-capacity coverage requirements.
The operating frequency band covers 1695-2690 MHz, perfectly supporting 4G/LTE and future mobile communication technologies. Up to 20.3 dBi gain ensures long-range signal transmission and effective obstacle penetration, providing strong signal energy for macro base stations and sector coverage.
2. Dual-port ±45° polarization improves network capacity and stability.
The dual-port design and ±45° dual polarization technology support MIMO (Multiple Input, Multiple Output) applications. Inter-port isolation ≥28 dB effectively reduces interference, significantly improving channel capacity and data rates, and optimizing user experience.
3. Precise beam steering for precise coverage of the target area.
The horizontal and vertical 3dB beamwidths are both 33°±5°, forming a precise sector beam that, like a "spotlight," concentrates signal energy within the target service area, reducing interference with neighboring cells and improving frequency reuse efficiency.
4. Industrial-grade rugged design, resistant to harsh outdoor environments.
Featuring a high-quality fiberglass reinforced plastic (FRP) radome and a robust 30kg body, it operates stably in extreme temperatures ranging from -50°C to +65°C and can withstand wind speeds up to 60m/s (approximately 216km/h), making it ideal for demanding outdoor environments.
5. High-performance electrical specifications ensure reliable system operation.
A voltage standing wave ratio (VSWR) as low as <1.5 and a front-to-back ratio ≥25dB ensure efficient signal transmission and effectively suppress backward interference. Built-in DC grounding lightning protection and supporting up to 300W input power per port meet stringent carrier-grade standards.
Application Scenarios
4G/LTE macro base station sector coverage: Serves as the core coverage antenna for base stations in urban, suburban, and rural areas, providing high-quality mobile network services to users within a specific sector.
Wireless network capacity expansion and optimization: Used to increase network capacity in high-traffic areas or replace older antennas to optimize coverage gaps and improve signal quality.
Dedicated Mobile Communication Networks: Deployed in dedicated mobile communication systems in industries such as railways, ports, power generation, and oil, providing reliable, wide-range wireless connectivity.
MIMO Network Deployment: Leveraging its dual-port capabilities, MIMO technology can be implemented in scenarios requiring improved data throughput and link stability.
Harsh Terrain and Climate Regions: With its rugged structure and wide operating temperature range, it is suitable for communication sites in harsh environments such as coastal areas, high mountains, and high-altitude areas.
FAQ
Q: What are the main applications of this antenna?
A: It is primarily designed for outdoor macro base stations in 4G/LTE mobile communication systems, providing high-performance wireless signal coverage for specific areas (sectors).
Q: What are the benefits of "dual-port" and "±45° polarization"?
A: The dual-port antenna allows for the connection of two independent RF links. Combined with ±45° dual polarization, it supports MIMO technology, thereby exponentially increasing network capacity and data transmission stability without increasing frequency bandwidth.
Q: What are the dimensions and weight of the antenna? A: The antenna measures 1450mm x 280mm x 90mm and weighs approximately 30kg. Ensure the mast and supporting structure are sufficiently strong during installation.
Q: What type of connector does it use?
A: The antenna is equipped with two 4.3-10 female connectors on the bottom. This type of connector is widely used in new base station equipment and offers excellent performance and a compact size.
Q: Are there any requirements for the mast diameter during installation?
A: Yes. The mounting bracket is suitable for masts with diameters between 50mm and 115mm.
Q: What is its operating temperature range?
A: The antenna can operate in extreme ambient temperatures ranging from -50°C to +65°C, making it suitable for outdoor climates in most regions of the world.
