GL405-30
Asialeren
8517710000
100pc
Accepted
10000pc/day
| Quantity: | |
|---|---|
| PDF Export | |

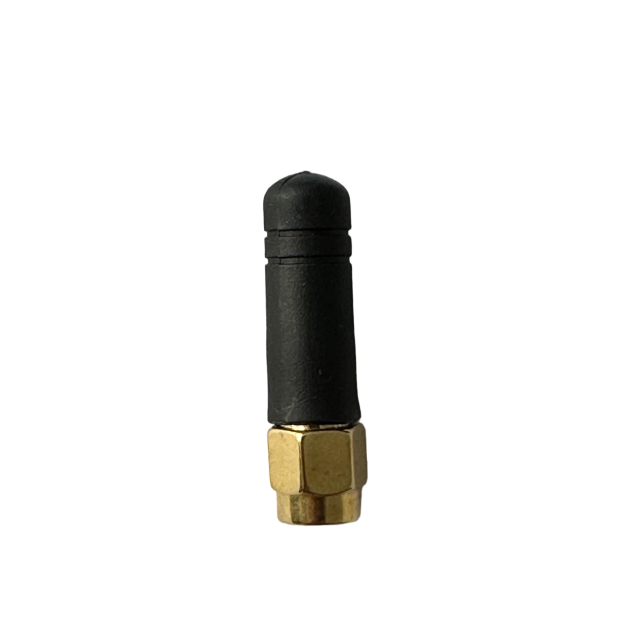

2.4G Rubber Antenna | |
GL405-4G | |
Electrical Index | |
Frequency-MHz | 2400-2500 |
Gain-dBi | 2.5 |
VSWR | ＜2.0 |
Normal Impedance-Ω | 50 |
Polarization | Linear |
Mechanical Index | |
Connector | SMA male |
Antenna Dimension-mm | Ø7.8*30 |
Environmentally Friendly | ROHS Compliant |
Temperature-℃ | -40～＋85 |
Humidity-﹪ | 5～95 |
Stable Performance
Offers a gain of 2.5dBi and VSWR <2.0, ensuring reliable signal transmission and reception in the 2.4GHz band.
Compact & Durable Design
Measures only Ø7.8mm × 30mm, made from robust rubber material, suitable for space-constrained and mobile applications.
Wide Compatibility
Equipped with an SMA male connector, compatible with a wide range of wireless devices such as routers, IoT modules, and industrial equipment.
Broad Operating Range
Functions reliably in temperatures from -40°C to +85°C and humidity levels from 5% to 95%, ideal for harsh environments.
Environmentally Friendly
Compliant with ROHS standards, ensuring the antenna is free from hazardous substances and safe for various applications.
WiFi routers and access points
IoT devices and smart home systems
Wireless surveillance systems
Industrial wireless communication modules
Drone and remote control systems
Q: What is the frequency range of this antenna?
A: It operates in the 2400–2500 MHz range, ideal for 2.4GHz applications.
Q: What type of connector does it use?
A: It comes with an SMA male connector.
Q: Is this antenna suitable for outdoor use?
A: Yes, it can operate in temperatures from -40°C to +85°C and humidity from 5% to 95%.
Q: What is the gain of this antenna?
A: The gain is 2.5dBi.
Q: Is it ROHS compliant?
A: Yes, it is environmentally friendly and ROHS compliant.
Q: What is the impedance of the antenna?
A: The impedance is 50Ω.
