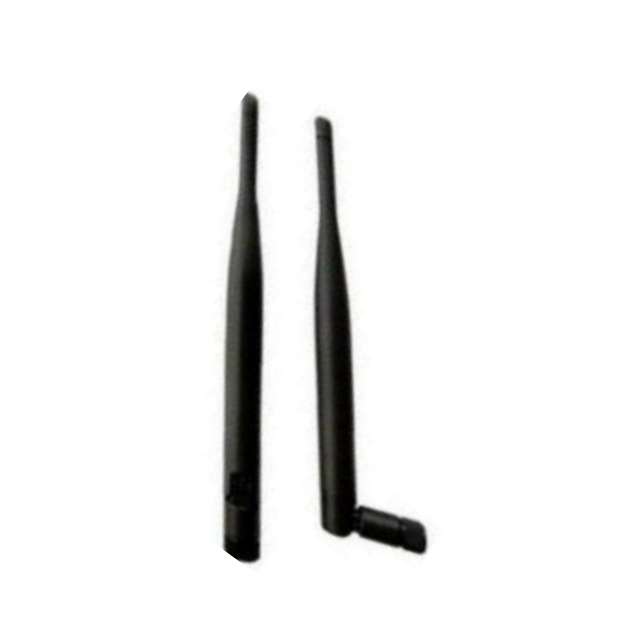

WiFi Rubber Antenna | |
GL2458-5 | |
Electrical Index | |
Frequency-MHz | 2400-2500/4900-5900 |
Gain | 5dBi |
VSWR | <2.5 |
Bandwidth(MHz) | 100 |
Radiation | Omni |
Normal Impedance-Ω | 50 |
Polarization | Vertical |
Mechanical Index | |
Connector | RP-SMA male |
Antenna Dimension-mm | Ø13*195 |
Radome Material | ABS |
Environmentally Friendly | ROHS Compliant |
Temperature-℃ | -40～＋60 |
Product Introduction
1. Dual-Band Coverage, Strong Compatibility
Supports 2400-2500MHz and 4900-5900MHz frequency bands, perfectly compatible with 2.4GHz and 5GHz WiFi standards (such as 802.11a/b/g/n/ac), suitable for most modern routers and wireless devices, ensuring stable and high-speed connections.
2. 5dBi High Gain, Stronger and Longer Signal
5dBi gain effectively enhances signal transmission and reception capabilities, expanding coverage and reducing blind spots, especially suitable for large apartments, offices, or multi-story buildings.
3. Omnidirectional Radiation, 360° Coverage Without Dead Zones
Adopting an omnidirectional radiation design, the signal is evenly distributed, eliminating the need for aiming at a specific direction, easily achieving stable simultaneous connections for multiple devices, suitable for complex environments.
4. Durable Design, Wide Temperature Range
The shell is made of ABS material, sturdy and wear-resistant, with an operating temperature range of -40°C to +60°C, adaptable to various indoor and outdoor environments, RoHS environmentally certified, safe and reliable.
5. Plug and Play, Easy Installation
Standard RP-SMA male interface, compatible with most wireless routers, CPE devices, USB network adapters, etc. on the market. Installation is simple and quick, requiring no additional tools.
Application Scenarios
* Home Network Extension: Install in the living room or study to enhance the whole-house WiFi signal, especially suitable for areas with weak signals after passing through walls.
* Office Wireless Coverage: Paired with an enterprise-grade router, it provides a stable signal, supporting multiple employees working online simultaneously.
* Outdoor Wireless Monitoring: Used for outdoor APs or surveillance cameras, it is weather-resistant and ensures smooth video transmission.
* IoT Smart Devices: Connects to smart home devices such as smart speakers and sensors, improving communication reliability.
* Mobile Hotspot Enhancement: Paired with a portable router, it extends the signal range during travel or temporary events.
FAQ
Q: Which WiFi standards does this antenna support?
A: It supports common WiFi standards such as 802.11a/b/g/n/ac, covering both 2.4GHz and 5GHz dual-band.
Q: How do I install this antenna?
A: Simply screw the RP-SMA male connector into the RP-SMA female port of the device. No configuration is required; it's plug-and-play.
Q: Is the antenna gain fixed? What is its function?
A: Yes, the gain is fixed at 5dBi. It improves signal strength and coverage, enhancing network performance.
Q: What are the antenna dimensions? Is it easy to install?
A: The dimensions are Ø13*195mm, compact and lightweight, making it easy to install on various devices.
Q: Is it environmentally friendly?
A: Yes, the product complies with RoHS environmental standards and contains no hazardous substances.
Q: Which devices is it compatible with?
A: Compatible with all devices with an RP-SMA female connector, such as most wireless routers, CPEs, USB adapters, etc.
