| Quantity: | |
|---|---|
| PDF Export | |

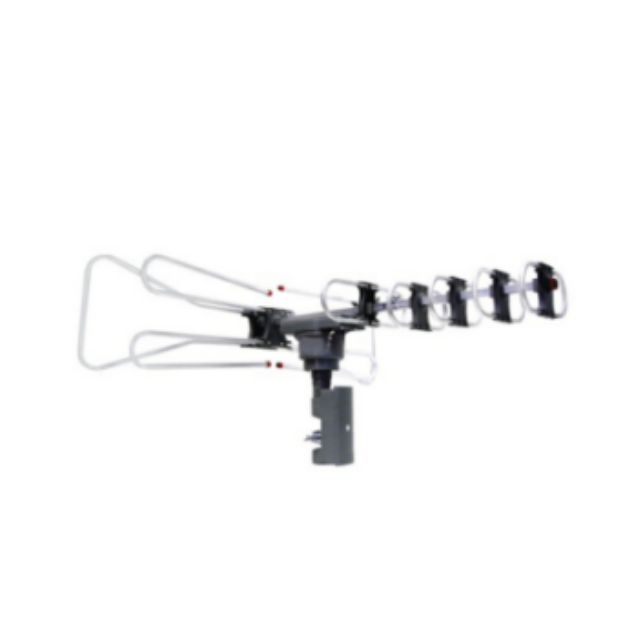

Item | Amplifier Outdoor Antenna
|
PN | GL937 |
Frequency Range (MHz) | 47-862 |
Input Impedence (Ω) | 75 |
V.S.W.R | ≤ 1.5 |
Gain (dBi) | 22-30 |
Polarization | Vertical |
Power Capacity (w) | 50 |
Mechanical Specifications | |
Connect Type | F |
Material | Aluminum and Plastic |
Length-mm | 850 |
| 765*345*530 |
Weight | 8.5kg/carton |
Operation Voltage | AC/110/220v |
Product Introduction
Flagship-Level Ultra-High Gain Performance: Offers industry-leading gain of 22-30dBi, equipped with a high-performance signal amplifier, providing 5 times the reception capability of ordinary outdoor antennas. Optimized for extremely weak signal environments.
Full-Band Coverage:Supports the entire 47-862MHz VHF/UHF band, perfectly compatible with all digital TV formats, covering everything from traditional VHF to modern 4K ultra-high-definition signals.
Professional Outdoor Rugged Structure:850mm aerospace-grade aluminum alloy main structure, IP66 waterproof and dustproof design, professional UV protection treatment, ensuring long-term stable operation in extreme outdoor environments.
Intelligent Signal Processing System:Built-in intelligent gain control chip automatically identifies signal strength and optimizes amplification, avoiding signal overload and ensuring consistently clear and stable picture.
Global Voltage Compatibility:Supports AC 110V/220V global voltage standards, equipped with a professional power adapter, and features comprehensive overvoltage and overcurrent protection, ensuring safe use in different countries and regions.
Application Scenarios
Ultra-long Distance Signal Reception:Specifically designed for extremely remote areas more than 100 kilometers from signal towers.
Professional Broadcast Television Systems:Signal receiving and relay equipment for local television stations and radio stations.
Large Commercial Venues:Front-end for multi-user television systems in hotels, resorts, and residential communities.
Emergency Communication Systems:Professional-grade communication equipment for government emergency command and disaster prevention and mitigation centers.
Special Terrain Applications: Professional solutions for environments with extremely weak signals, such as deep mountains, isolated islands, and border areas.
FAQ
Q:When is the 30dBi gain of the GL937 needed?
A:Suitable for extremely weak signal environments more than 80-100 kilometers from signal towers, where ordinary antennas cannot receive signals normally.
Q: What technical points should be noted during installation?
A:Professional installation is required to ensure secure fixing. Use a signal strength meter for accurate positioning and ensure proper lightning protection and grounding.
Q:How stable is the product in areas with strong winds?
A: Adopting a heavy-duty aluminum alloy structure, it can withstand most severe weather conditions, but in typhoon-prone areas, a professional reinforced bracket must be used.
Q: Is additional surge protection required?
A: A professional-grade surge protector must be installed, and the grounding resistance must be less than 4Ω to protect the expensive amplifier equipment.
Q: Can the amplifier gain be adjusted?
A: It uses intelligent gain control technology to automatically optimize signal strength, achieving optimal results without manual adjustment.
Q: What is the product's power consumption?
A: The maximum power consumption is approximately 15W. It is recommended to use the matching professional power adapter to ensure stable power supply.
Item | Amplifier Outdoor Antenna
|
PN | GL937 |
Frequency Range (MHz) | 47-862 |
Input Impedence (Ω) | 75 |
V.S.W.R | ≤ 1.5 |
Gain (dBi) | 22-30 |
Polarization | Vertical |
Power Capacity (w) | 50 |
Mechanical Specifications | |
Connect Type | F |
Material | Aluminum and Plastic |
Length-mm | 850 |
| 765*345*530 |
Weight | 8.5kg/carton |
Operation Voltage | AC/110/220v |
Product Introduction
Flagship-Level Ultra-High Gain Performance: Offers industry-leading gain of 22-30dBi, equipped with a high-performance signal amplifier, providing 5 times the reception capability of ordinary outdoor antennas. Optimized for extremely weak signal environments.
Full-Band Coverage:Supports the entire 47-862MHz VHF/UHF band, perfectly compatible with all digital TV formats, covering everything from traditional VHF to modern 4K ultra-high-definition signals.
Professional Outdoor Rugged Structure:850mm aerospace-grade aluminum alloy main structure, IP66 waterproof and dustproof design, professional UV protection treatment, ensuring long-term stable operation in extreme outdoor environments.
Intelligent Signal Processing System:Built-in intelligent gain control chip automatically identifies signal strength and optimizes amplification, avoiding signal overload and ensuring consistently clear and stable picture.
Global Voltage Compatibility:Supports AC 110V/220V global voltage standards, equipped with a professional power adapter, and features comprehensive overvoltage and overcurrent protection, ensuring safe use in different countries and regions.
Application Scenarios
Ultra-long Distance Signal Reception:Specifically designed for extremely remote areas more than 100 kilometers from signal towers.
Professional Broadcast Television Systems:Signal receiving and relay equipment for local television stations and radio stations.
Large Commercial Venues:Front-end for multi-user television systems in hotels, resorts, and residential communities.
Emergency Communication Systems:Professional-grade communication equipment for government emergency command and disaster prevention and mitigation centers.
Special Terrain Applications: Professional solutions for environments with extremely weak signals, such as deep mountains, isolated islands, and border areas.
FAQ
Q:When is the 30dBi gain of the GL937 needed?
A:Suitable for extremely weak signal environments more than 80-100 kilometers from signal towers, where ordinary antennas cannot receive signals normally.
Q: What technical points should be noted during installation?
A:Professional installation is required to ensure secure fixing. Use a signal strength meter for accurate positioning and ensure proper lightning protection and grounding.
Q:How stable is the product in areas with strong winds?
A: Adopting a heavy-duty aluminum alloy structure, it can withstand most severe weather conditions, but in typhoon-prone areas, a professional reinforced bracket must be used.
Q: Is additional surge protection required?
A: A professional-grade surge protector must be installed, and the grounding resistance must be less than 4Ω to protect the expensive amplifier equipment.
Q: Can the amplifier gain be adjusted?
A: It uses intelligent gain control technology to automatically optimize signal strength, achieving optimal results without manual adjustment.
Q: What is the product's power consumption?
A: The maximum power consumption is approximately 15W. It is recommended to use the matching professional power adapter to ensure stable power supply.
Carton Size-mm
