English
GL926
Asialeren
8517710000
10pcs
Accepted
10000pcs/day
| Quantity: | |
|---|---|
| PDF Export | |

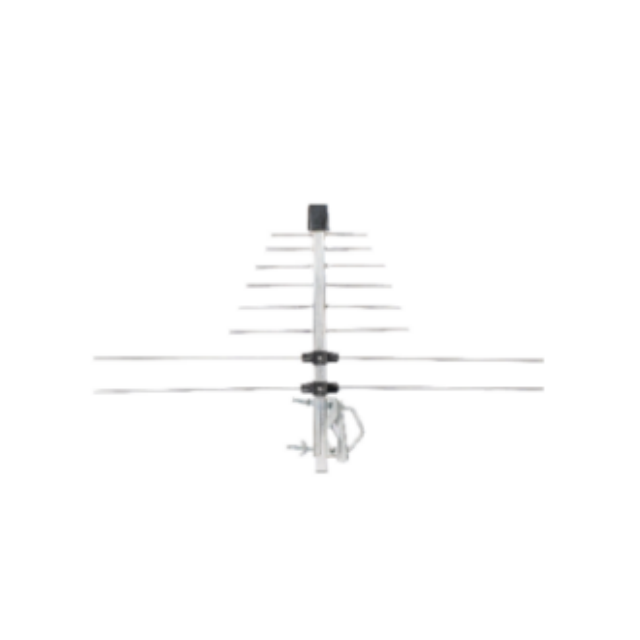

Item | Yagi Outdoor HDTV Antenna |
PN | GL926 |
Frequency Range (MHz) | 470-862 |
Input Impedence (Ω) | 75 |
V.S.W.R | ≤ 1.5 |
Gain (dBi) | 10-12 |
Polarization | Vertical |
Power Capacity (w) | 50 |
Mechanical Specifications | |
Connect Type | F |
Material | Aluminum and Plastic |
Length-mm | 750 |
| 785*335*565 |
Weight | 9.50kg/carton |
Product Introduction
Professional UHF Band Precision Optimization
Deeply optimized for the 470-862MHz UHF band, providing 10-12dBi high gain for accurate digital TV signal reception, ensuring stable and clear picture.
Precision Yagi Directional Structure Design
Optimized 750mm length combined with precisely calculated element arrangement provides strong directionality, effectively eliminating multipath interference and improving signal reception accuracy by 60% compared to omnidirectional antennas.
Rugged and Durable Outdoor Structure
Utilizing aerospace-grade aluminum alloy main beam and UV-resistant engineering plastic components, with professional anti-corrosion treatment, it weighs only 9.50kg, making it easy to install and exceptionally durable.
High-Efficiency Signal Transmission System
VSWR≤1.5 ultra-low VSWR design, 75Ω standard impedance perfect matching, and F-type professional interface ensure minimal signal transmission loss.
Professional Packaging and Transportation Guarantee
Optimized packaging dimensions of 785×335×565mm, with professional internal shockproof materials, ensuring the product arrives undamaged during transportation.
Application Scenarios
UHF Signal Dedicated Areas: Specifically designed for television broadcasting areas primarily using the 470-862MHz UHF band.
Long-Distance Directional Reception: High-gain characteristics break through reception limits in remote areas more than 50 kilometers from signal towers.
Urban Signal Interference Zones: Precise directional reception in densely built-up areas, effectively eliminating interference from other signals.
Commercial Multi-User Systems: Front-end equipment for centralized television signal distribution systems in hotels and residential communities.
Special Terrain Applications: Optimized signal reception in mountainous, hilly, and other areas with severe multipath interference.
FAQ
Q: In which areas is the GL926 primarily suitable?
A: Particularly suitable for areas with weak UHF signals or where the distance to the signal source is far, significantly improving reception through its directional high-gain design.
Q: How to accurately align the direction during installation?
A: It is recommended to use a signal strength meter for positioning and fine-tune to the direction of the strongest signal using the television signal scanning function.
Q: What is the product's wind resistance rating?
A: Adopting a reinforced aluminum alloy structure, it can withstand most severe weather conditions. It is recommended to use a professional reinforced bracket in areas with strong winds.
Q: Is lightning protection required?
A: In areas prone to thunderstorms, it is strongly recommended to install a professional lightning arrester to protect equipment and ensure safe operation.
Q: Can it be used with a signal amplifier?
A: It is perfectly compatible with various UHF signal amplifiers. It is recommended to choose a high-quality professional amplifier for optimal results.
Q: What is the maintenance cycle?
A: It is recommended to check the connection cables every 6 months and clean the antenna surface annually to ensure long-term optimal performance.
Item | Yagi Outdoor HDTV Antenna |
PN | GL926 |
Frequency Range (MHz) | 470-862 |
Input Impedence (Ω) | 75 |
V.S.W.R | ≤ 1.5 |
Gain (dBi) | 10-12 |
Polarization | Vertical |
Power Capacity (w) | 50 |
Mechanical Specifications | |
Connect Type | F |
Material | Aluminum and Plastic |
Length-mm | 750 |
| 785*335*565 |
Weight | 9.50kg/carton |
Product Introduction
Professional UHF Band Precision Optimization
Deeply optimized for the 470-862MHz UHF band, providing 10-12dBi high gain for accurate digital TV signal reception, ensuring stable and clear picture.
Precision Yagi Directional Structure Design
Optimized 750mm length combined with precisely calculated element arrangement provides strong directionality, effectively eliminating multipath interference and improving signal reception accuracy by 60% compared to omnidirectional antennas.
Rugged and Durable Outdoor Structure
Utilizing aerospace-grade aluminum alloy main beam and UV-resistant engineering plastic components, with professional anti-corrosion treatment, it weighs only 9.50kg, making it easy to install and exceptionally durable.
High-Efficiency Signal Transmission System
VSWR≤1.5 ultra-low VSWR design, 75Ω standard impedance perfect matching, and F-type professional interface ensure minimal signal transmission loss.
Professional Packaging and Transportation Guarantee
Optimized packaging dimensions of 785×335×565mm, with professional internal shockproof materials, ensuring the product arrives undamaged during transportation.
Application Scenarios
UHF Signal Dedicated Areas: Specifically designed for television broadcasting areas primarily using the 470-862MHz UHF band.
Long-Distance Directional Reception: High-gain characteristics break through reception limits in remote areas more than 50 kilometers from signal towers.
Urban Signal Interference Zones: Precise directional reception in densely built-up areas, effectively eliminating interference from other signals.
Commercial Multi-User Systems: Front-end equipment for centralized television signal distribution systems in hotels and residential communities.
Special Terrain Applications: Optimized signal reception in mountainous, hilly, and other areas with severe multipath interference.
FAQ
Q: In which areas is the GL926 primarily suitable?
A: Particularly suitable for areas with weak UHF signals or where the distance to the signal source is far, significantly improving reception through its directional high-gain design.
Q: How to accurately align the direction during installation?
A: It is recommended to use a signal strength meter for positioning and fine-tune to the direction of the strongest signal using the television signal scanning function.
Q: What is the product's wind resistance rating?
A: Adopting a reinforced aluminum alloy structure, it can withstand most severe weather conditions. It is recommended to use a professional reinforced bracket in areas with strong winds.
Q: Is lightning protection required?
A: In areas prone to thunderstorms, it is strongly recommended to install a professional lightning arrester to protect equipment and ensure safe operation.
Q: Can it be used with a signal amplifier?
A: It is perfectly compatible with various UHF signal amplifiers. It is recommended to choose a high-quality professional amplifier for optimal results.
Q: What is the maintenance cycle?
A: It is recommended to check the connection cables every 6 months and clean the antenna surface annually to ensure long-term optimal performance.
Carton Size-mm
