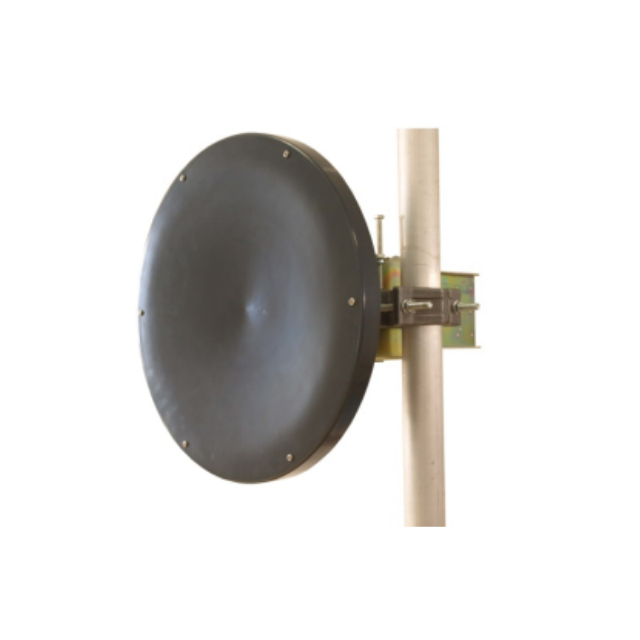

High gain 23dBi 5GHz Dual Polarized Parabolic Antenna

Product Introduction

1. High-Gain Performance
With 23dBi gain and narrow 9° beamwidth, this antenna delivers focused, long-distance signal transmission, ideal for point-to-point backhaul and stable connectivity over several kilometers.

2. Dual-Polarization Support
Supports both vertical and horizontal polarization simultaneously, improving signal isolation and enabling frequency reuse to double data throughput in dense network environments.

3. Robust Outdoor Durability
Built with an aluminum reflector and corrosion-resistant finish, it operates reliably in temperatures from -40°C to +65°C and withstands wind speeds up to 60 m/s, ensuring consistent performance in harsh weather.

4. High Isolation & Low VSWR
With ≥30dB port isolation and VSWR ≤2.0, the antenna minimizes interference between polarization channels, delivering cleaner signals and more reliable connections.

5. Flexible Mounting & Protection
Features adjustable mechanical tilt (-15° to +15°) for precise alignment, DC ground lightning protection, and a lightweight 3.3kg design, making installation quick and secure on poles from 25mm to 60mm.

Application scenarios

●Point-to-Point Wireless Backhaul
Ideal for connecting two remote network locations over long distances with stable, high-throughput links.

●5GHz Wi-Fi Bridge
Perfect for extending network coverage between buildings, campuses, or industrial facilities.

●Surveillance & Security Networks
Supports high-bandwidth video transmission for IP cameras in large-scale outdoor sites like airports, ports, and warehouses.

●Temporary Event Networks
Provides reliable high-speed connectivity for outdoor events, construction sites, or emergency response setups.

●Rural & Remote Connectivity
Delivers long-distance internet access in areas where fiber or cable infrastructure is unavailable.

FAQ

Q:What frequency bands does this antenna support?
A:It covers the full 5GHz range from 5150MHz to 5850MHz, compatible with most 5GHz Wi-Fi and wireless bridge equipment.

Q:What is the advantage of dual polarization?
A:Dual polarization allows two separate data streams on the same frequency, effectively doubling capacity and improving link reliability in noisy environments.

Q:Can this antenna be used with any 5GHz radio?
A:Yes, as long as the radio uses N-type female connectors and operates within the 5150-5850MHz frequency range, it can be directly connected.

Q: What mounting pole sizes are compatible?
A:The included mounting hardware fits poles with diameters from 25mm to 60mm, making it versatile for different installation scenarios.

Q: Is the antenna weatherproof?
A:Yes, it is designed for outdoor use with an operating temperature range of -40°C to +65°C and is rated for wind speeds up to 60 m/s.

Q: Does it include lightning protection?
A:Yes, the antenna features DC ground lightning protection to help safeguard connected equipment from static discharge and surges.
