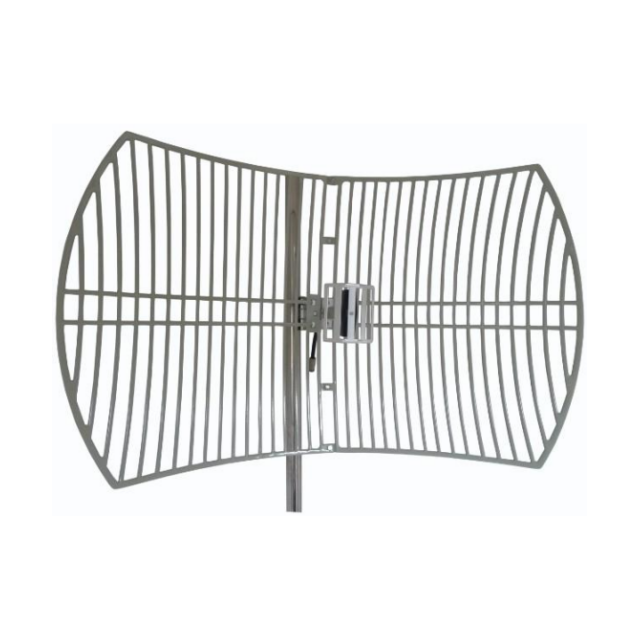

2.4GHz 24dBi Wireless Grid Parabolic Antenna with N Female

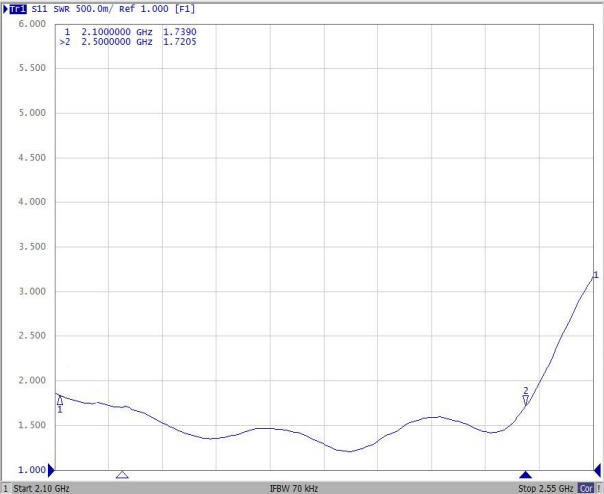

V.S.W.R

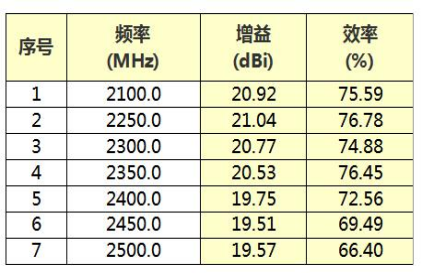

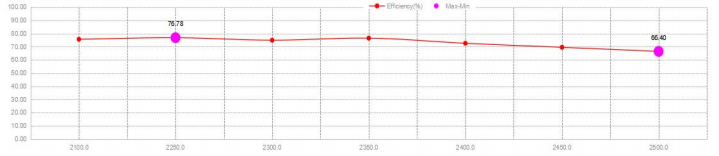

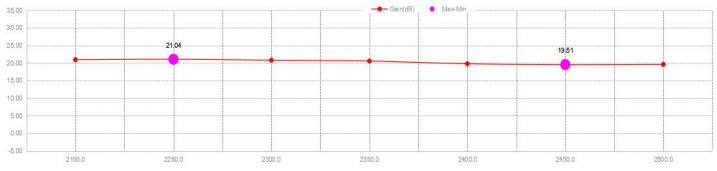

Radiation Pattern

Product Introduction

1.High Gain for Long-Distance Transmission

With 24dBi gain and a directional beamwidth of 10° (horizontal) × 14° (vertical), this antenna supports reliable wireless links up to 20km, ideal for point-to-point applications.

2.Durable All-Aluminum Construction

Built from corrosion-resistant aluminum with a powder-coated finish, the antenna withstands harsh outdoor conditions, including wind speeds up to 60m/s and temperatures from -40°C to +70°C.

3.Precision Engineering for Stable Performance

Features low VSWR (≤2.0), high front-to-back ratio (≥25dB), and DC grounding for lightning protection, ensuring consistent signal integrity and equipment safety.

4.Easy Assembly and Pole Mounting

The two-piece dish design allows for quick assembly. Includes all necessary hardware and supports pole mounting on Ø50–Ø70mm poles for flexible installation.

5.Wide Frequency Coverage

Operates across the 2100–2500MHz frequency range with 400MHz bandwidth, supporting 2.4GHz WiFi, spread spectrum systems, and other wireless applications.

Application Scenarios

Long-Range WiFi Bridging

Wireless ISP Backhaul

Surveillance System Connectivity

Industrial Wireless Networks

Temporary Event Networks

FAQ

Q: What frequency range does the GL-DY2225V24 antenna support?

A:It supports the 2100–2500MHz frequency range, covering 2.4GHz WiFi and spread spectrum systems.

Q:What is the gain of this antenna?

A:The antenna provides 24dBi gain, enabling long-distance directional communication.

Q:What type of connector does it use?

A:It features an N female connector with a 30cm LMR240 cable for easy integration with outdoor radios.

Q:Is this antenna suitable for outdoor use?

A:Yes, it is designed for outdoor deployment with an operating temperature range of -40°C to +70°C and wind resistance up to 60m/s.

Q:What is the maximum transmission distance?

A:Under optimal conditions, the antenna can support wireless links up to 5–20km, depending on equipment and line of sight.

Q:Does the antenna include lightning protection?

A:Yes, the antenna is DC grounded, providing built-in lightning protection for safer outdoor installations.
