| Quantity: | |
|---|---|
| PDF Export | |

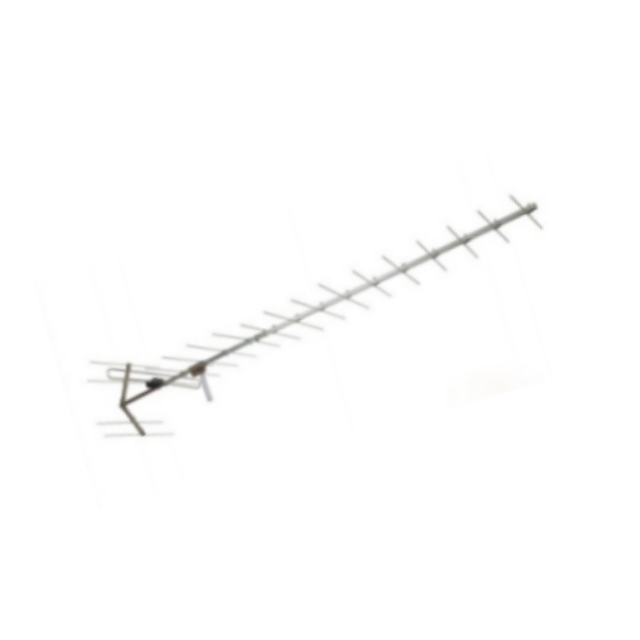

Item | Outdoor Yagi HDTV Antenna |
PN | GL929 |
Frequency Range (MHz) | 47-862 |
Input Impedence (Ω) | 75 |
V.S.W.R | ≤ 1.5 |
Gain (dBi) | 8-18 |
Polarization | Vertical |
Power Capacity (w) | 50 |
Mechanical Specifications | |
Connect Type | F |
Material | Aluminum and Plastic |
Length-mm | 800 |
| 785*335*565 |
Weight | 9.0kg/carton |
Product Introduction
Flagship-Level Full-Band Performance:Fully covers the 47-862MHz VHF/UHF bands, providing 8-18dBi intelligent gain. It maintains a stable 8dBi gain in the VHF band and reaches up to 18dBi in the UHF band, solving all channel reception needs with a single unit.
Professional-Grade Yagi Directional Design:An 800mm precision-optimized structure with a multi-element design provides strong directionality and effectively eliminates interference, resulting in superior performance in complex signal environments and a 50% improvement in reception accuracy.
Enhanced Outdoor Durable Structure: Aerospace-grade aluminum alloy main beam combined with UV-resistant engineering plastics, an 800mm length ensures optimal structural stability, and professional anti-corrosion treatment adapts to various harsh outdoor environments.
High-Efficiency Full-Band Signal Transmission:VSWR≤1.5 ultra-low VSWR, 75Ω standard impedance perfect matching, and a professional F-type interface ensure optimized signal transmission efficiency across the entire VHF to UHF band.
Optimized Weight and Packaging Design
Lightweight design at 9.0kg, professional packaging (785×335×565mm) ensures structural strength while facilitating transportation and installation, equipped with standard mounting holes.
Application Scenarios
●Full-band Signal Reception Area: Specifically designed for areas requiring simultaneous reception of all VHF and UHF channels.
●Extremely Weak Signal Environments: Remote areas more than 80km from signal towers, 18dBi high gain breaks through reception limits.
●Professional Communication Systems: Full-band signal receiving equipment for broadcasting, telecommunications, and emergency communication systems.
●Commercial Multi-user Systems: Professional-grade signal receiving front-end for hotel, resort, and community TV systems.
●Special Terrain Applications: Optimized directional signal reception in mountainous areas, coastal areas, and other areas with severe multipath interference.
FAQ
Q: What are the key upgrades of the GL929 compared to its predecessor?
A: Full-band coverage of 47-862MHz, gain increased to 8-18dBi, optimized 800mm length, and significant performance improvements in both VHF and UHF bands.
Q: How to balance reception on both VHF and UHF bands during installation?
A: It is recommended to scan VHF and UHF channels separately to find the optimal direction that covers all channels, or use a rotator with preset positions.
Q: How stable is it in windy areas?
A: Utilizing a thickened aluminum alloy main beam and optimized counterweight design, it offers excellent wind resistance. In typhoon-prone areas, it is recommended to use a professional windproof bracket.
Q: Is lightning protection required?
A: In areas prone to thunderstorms, a professional lightning arrester must be installed to protect the equipment and ensure safe operation.
Q: What is the optimal installation height range?
A: A height of 5-15 meters is recommended. In flat areas, a higher installation position is recommended for optimal reception.
Q: Can it be used with a signal amplifier?
A: It is perfectly compatible with full-band signal amplifiers. It is recommended to choose a high-quality professional amplifier for best results.
