GL-DY2327S6517
Asialeren
8517710000
50pc
accepted
10000pc/day
| Quantity: | |
|---|---|
| PDF Export | |
Electrical Specifications | |
Frequency Range -MHz | 2300-2700 |
Polarization | ±45° |
VSWR | ≤1.5 |
Gain-dBi | 17 |
Horizontal beam width | 65° |
Verticalbeam width | 7.5° |
Front-to-back ratio-dB | ≥25 |
Isolation between ports-dB | ≥28 |
Input Impedance-Ω | 50 |
Maximum input power-W | 100 |
Lightning protection | DC Ground |
Mechanical Specifications | |
Input connector type | 2xN-K |
Connector place | Bottom |
Dimensions -mm | 950×128×56 |
Packing size -mm | 1050×230×160 |
Antenna weight- kg | 3.2 |
Radome material | UPVC |
Radome color | Gray |
Mechanical tilt | 0～12° |
Operating temperature | -40°C to +65 °C |
Rated Wind Velocity- m/s | 60 |
Mounting hardware -mm | ￠35～￠75 |
Differentiation comparison
| Comparison Dimensions | GL-DY2327S6517 | GL-DY7027S6512 |
| Frequency Range | 2300 - 2700MHz | 698 - 960MHz, 1710 - 2700MHz |
| Gain | 17dbi | 10-12dbi |
| Dimensions (mm) | 950×128×56 | 700×325×145 |
| Antenna Weight (kg) | 3.2 | 7.5 |
Product Introduction
●Wide Frequency Range & High Gain: Operates at 2300-2700MHz with 17dBi gain, ideal for 4G/LTE systems and sector coverage.
●Robust Performance: Features low VSWR (≤1.5), high port isolation (28dB), and front-to-back ratio (25dB) for stable signal transmission.
●Durable Construction: UPVC radome, DC lightning protection, and a compact design (950x128x56mm) ensure reliability in harsh environments (-40°C to +65°C).
●Easy Installation: Bottom-mounted 2xN-K connectors, mechanical tilt adjustment (0–12°), and compatibility with c35–c75mm mounting hardware.
●High Power Handling: Supports up to 100W input power and withstands wind speeds of 60m/s for outdoor durability.
Application Scenarios

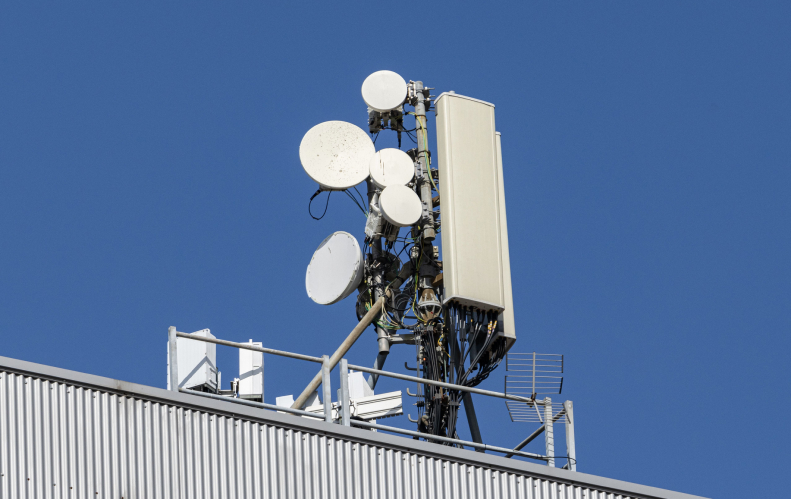

5G/NR Base Station Deployment: Compatible with the n41/n258 frequency bands, suitable for sector-specific coverage in densely populated urban areas.
FWA Fixed Wireless Access: Serves as a terminal receiving antenna, providing highly directional connectivity.
Industrial IoT Hub: Data backhaul for remote equipment in factories and mining areas.
Wind Power/Electric Power SCADA System: Low-temperature resistance and lightning protection design adapt to energy infrastructure.
FAQ
Q: Does it support 5G networks?
A: Compatible with the 2300-2700MHz frequency band (including 5G bands such as n41/n258) and requires use with 5G RRU equipment.
Q: Is grounding required?
A: Required! DC grounding and lightning protection design requires connection to an independent grounding system (ground resistance ≤ 5Ω).
Q: Input connector type?
A: Two N-K female connectors (bottom-out) are standard. Feeder cables with LMR-400 specifications or higher are required.
Q: Is an installation kit included?
A: Supports cylindrical poles Ø35-75mm (mounting bracket kit, model: MT-HK75, is required separately).
Q: What is the weight and dimensions of the antenna?
A: 950×128×56mm / 3.2kg, shipping package dimensions: 1050×230×160mm.
Q: What does a VSWR ≤ 1.5 mean?
A: A voltage standing wave ratio ≤ 1.5 indicates excellent impedance matching between the antenna and the feeder (50Ω), with energy return loss less than 4%.
