English
GL-DYP04
Asialeren
8517710000
100pc
Accepted
10000pc/day
| Quantity: | |
|---|---|
| PDF Export | |
Electrical Index | ||

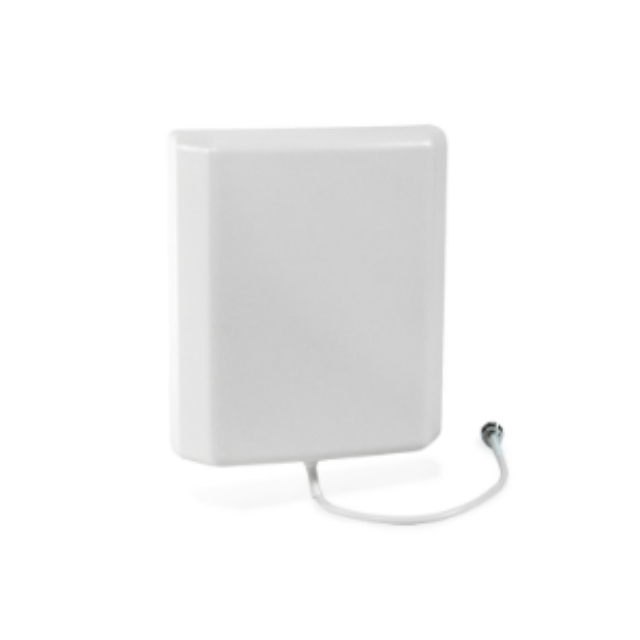

Product Name | Smaller panel antenna | |
Product Number | GL-DYP04 | |
Frequency Range-MHz | 806-960/1710-2690 | 806-960/1710-2690 |
Polarization | ±45° | ±45° |
V.S.W.R | ≤1.5 | ≤1.5 |
Gain-dBi | 4/7 | 4/7 |
Horizontal Beam width | 80° | 80° |
Vertical Beam width | 60° | 60° |
Isolation-dB | ≥23 | |
Intermodulation(2x33dBm)-dBc | ≤-140 | |
Input Impedance-Ω | 50 | |
Max Power-W | 100/50 | |
Lighting Protection | DC Ground | |
Mechanical Index | ||
Connector | 2*SMA | |
Antenna Dimension-mm | 220×190×21 | |
Antenna Weight-KG | 0.23 | |
Reflector Material | Aluminum | |
Radome Material | ABS | |
Radome Color | White | |
Product Introduction
Dual-Band MIMO Technology
Covers 806-960MHz + 1710-2690MHz, supporting 4G/LTE networks with dual SMA ports for MIMO (Multiple Input Multiple Output), enhancing data speed and reliability.
High Gain & Wide Coverage
7dBi peak gain with 80° horizontal and 60° vertical beamwidth, ideal for broad-area signal distribution in rural/urban settings.
Industrial-Grade Durability
Aluminum reflector + ABS radome (white) withstands extreme temps (-40°C to +85°C), IP65-rated against dust/moisture, and DC grounding for lightning protection.
Ultra-Low Interference
≤ -140dBc intermodulation (2x33dBm) and ≥23dB isolation ensure clean signal transmission in high-noise environments.
Compact & Lightweight Design
220x190x21mm (smaller than A4 paper) and 0.23kg weight, enabling flexible deployment on towers, rooftops, or vehicles.
Cellular Base Stations: Extend 4G coverage in remote areas.
Smart Transportation: Fleet tracking systems for buses/trucks.
Industrial IoT: Sensor networks in factories/warehouses.
Agricultural Monitoring: Soil/weather sensors in large farms.
Residential Signal Boosters: Enhance indoor mobile reception.
Q: What bands does GL-DYP04 support?
A: 806-960MHz (B5/B8) and 1710-2690MHz (B1/B3/B7), covering global 4G/LTE networks.
Q: Is it suitable for outdoor use?
A: Yes, IP65-rated housing and aluminum construction resist rain, UV, and corrosion.
Q: What’s the max power handling?
A: 100W for low band (806-960MHz) and 50W for high band (1710-2690MHz).
Q4: Why choose ±45° polarization?
A: Minimizes signal loss in multi-path environments.
Q: Does it include cables?
A: No, but dual SMA female ports support standard RG58/LMR-400 cables.
Q: Can it be wall-mounted?
A: Yes, 4x mounting holes (included) allow vertical/horizontal fixation.
Q: How does MIMO improve performance?
A: Dual ports enable simultaneous data streams, doubling throughput and reducing latency.
Q: Is lightning protection integrated?
A: Yes, DC grounding directs surges away from equipment.
