English
GLF86805
Asialeren
8517710000
50pc
Accepted
10000pc/day
| Quantity: | |
|---|---|
| PDF Export | |
Technical Index | |
Freq | 868±10MHz |
V.S.W.R | ≤1.5 |
Gain | 5dBi |
Horizontal Beamwidth | 360° |
Vertical Beamwidth | 15° |
Polarization | Vertical |
Input Impedance | 50Ω |
Max Power | 50W |
Lighting Protection | DC |
Mechanical Index | |
Cable-mm | 3D-FB 3000 |
Connector | SMA male |
Antenna Dimension | Ф20×250mm |
Antenna Weight | 0.5kg |
Antenna Material | Fiberglass |
Antenna Color | Gray |
Working Temperature | -40°c～60°c |
Wind Velocity | 60 m/s |
Pole Diameter | ￠35～￠50 |
Differences between similar antennas
P/N | GLF86805 | GL400DIV | GL822-868 |
Gain | 5 | 5.5 | 3 |
V.S.W.R. | 1.5 | 1.5 | 1.5 |

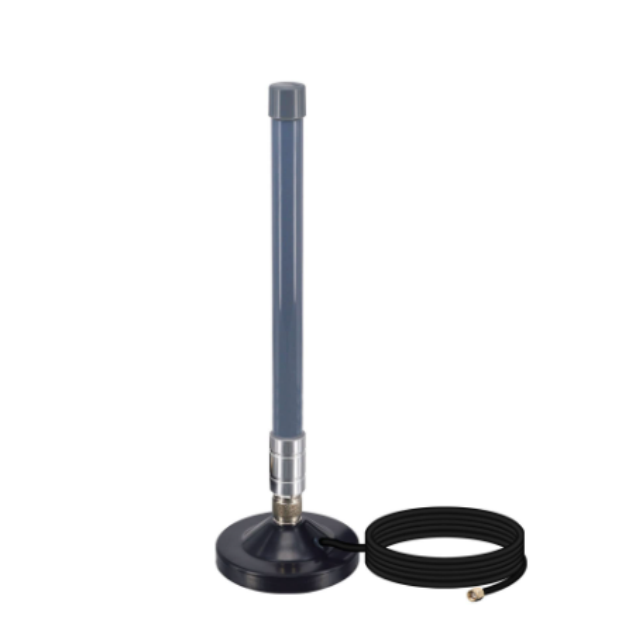

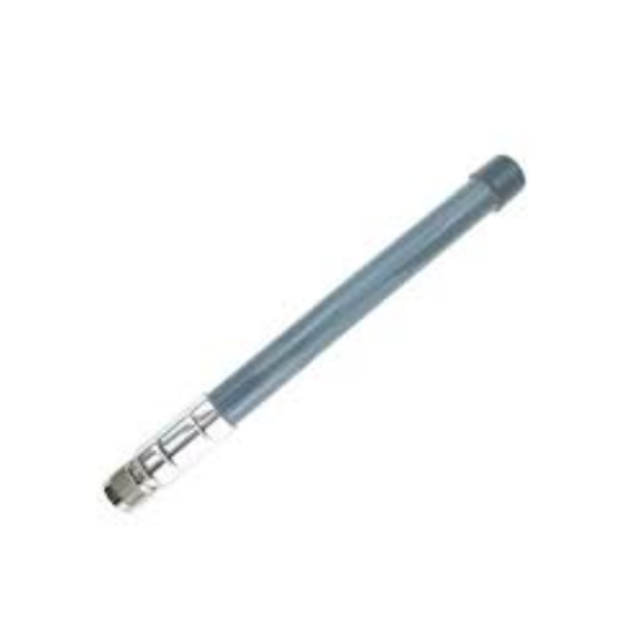

Product Introduction
●Enhanced Frequency Performance: Operates at a precise frequency of 868±10MHz, ensuring reliable communication for your needs.
●Superior Gain: Features a powerful 5dBi gain, delivering improved signal strength and extended range for optimal performance.
●Robust Cable and Antenna: Includes a 3D-FB cable paired with a 3m long LoRa antenna, perfect for outdoor applications and easy installation.
●Versatile SMA Male Connector: Equipped with an SMA male connector, compatible with a wide range of devices for seamless integration.
●Compact and Lightweight: Antenna dimensions of Ф20×250mm with a lightweight design of only 0.5kg make it easy to mount without hassle.
●Durable Fiberglass Construction: Built from high-quality fiberglass, this antenna is designed to withstand outdoor elements and maintain performance under various weather conditions.
●Customizable Solutions: Offering customizable options for 868MHz dielectric fiberglass antennas to cater to your specific communication requirements.
Application scenarios
Smart Metering: Reliable AMR/AMI data collection in underground utility vaults (-40°C)
Agriculture IoT: Withstands dust storms in crop monitoring systems
Industrial Automation: Signal stability in high-interference factory floors
Disaster Monitoring: Operates during typhoons in flood warning systems
FAQ
Q: Is this antenna intrinsically safe?
A: Fiberglass radome prevents sparking—suitable for Zone 2 hazardous areas .
Q: Can it transmit 869MHz in Europe?
A: Yes, 868±10MHz covers EU 868MHz (863-870MHz) and RU 868.7-869.2MHz bands.
Q: How to weatherproof the SMA connection?
A: Apply self-amalgamating tape between connector and radome base for IP67 seal.
Q: Maximum pole diameter?
A: Compatible with standard 1.5"-2" (Φ35-50mm) poles using included U-bolt clamp.
Q: Does vertical polarization matter?
A: Critical for LPWAN gateways—matches polarization of endpoint devices for +3dB signal gain.
Q: Replacement cable options?
A: Use LMR-400 or equivalent low-loss coax; avoid extending beyond 5m without amplification.
Q: Salt fog corrosion resistance?
A: Fiberglass and stainless steel hardware pass 96hr salt spray testing.
Q: Warranty for lightning damage?
A: Excluded—always use external surge suppressors with DC-grounded antennas.
