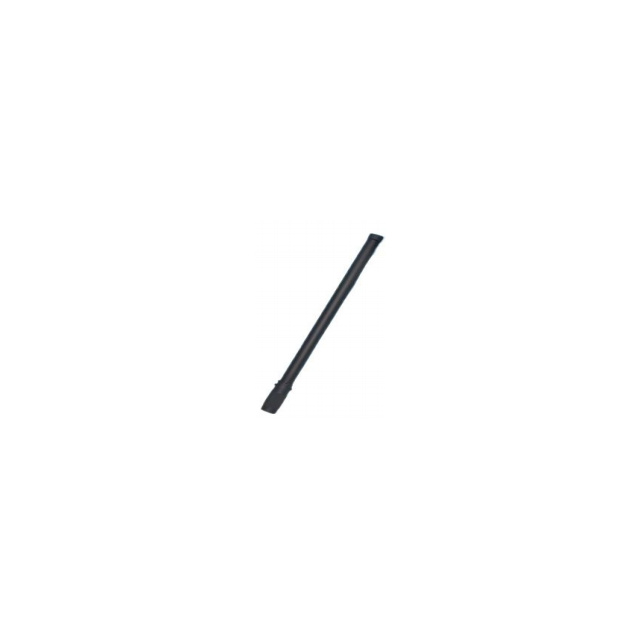

Fiberglass material 1.4G omni Anti-jamming Antenna

Fiberglass material 1.4G omni Anti-jamming Antenna.It has strong anti-interference capabilities and is suitable for performing tasks in complex electromagnetic environments.

Model:
GL1400M6
Brand:
GLOBAL
Code:
8517710000
MOQ:
10pc
OEM&ODM:
Accepted
Capacity:
1000PC/Day
Download:
GL1400M6.pdf

Quantity:
Availability:





Inquiry Add to Basket PDF Export

Product Introduction

Electrical Specifications
Frequency Range (MHz)	1430-1450
Horizontal beam width(°)	360
Vertical beam width (°)	23±5°
Gain (dBi)	6±1
VSWR	≤1.5
Maximum input power (W)	100
Impedance (Ω)	50
Mechanical Specifications
Dimensions (mm)		Ø25/32*600mm
Antenna weight (Kg)		0.2
Radome material		fiberglass
Radome color		black
Input connector type		N male
Environmental indicators
Usage scenarios			Outdoor
Operating temperature (℃)			-40 to +70
Humidity range (%)			5 to 95
Maximum wind speed (km/h)			200
