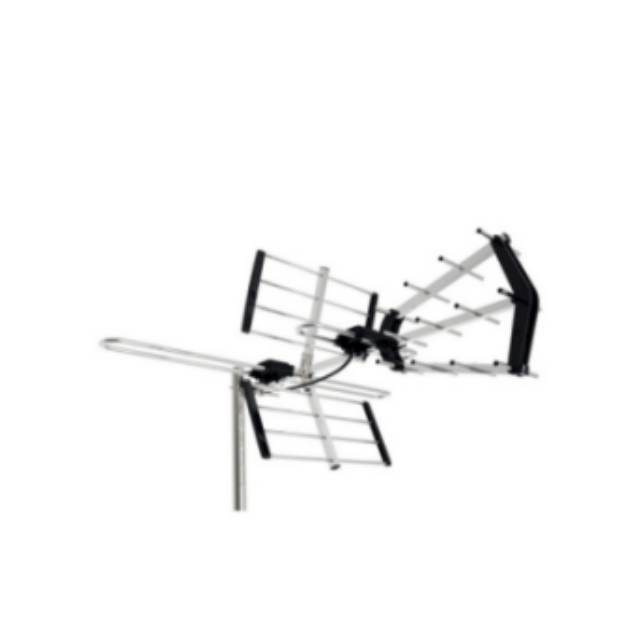

Item | Outdoor HDTV Antenna |
PN | GL935 |
Frequency Range (MHz) | 470-862 |
Input Impedence (Ω) | 75 |
V.S.W.R | ≤ 1.5 |
Gain (dBi) | 15-16 |
Polarization | Vertical |
Power Capacity (w) | 50 |
Mechanical Specifications | |
Connect Type | F |
Material | Aluminum and Plastic |
Length-mm | 850 |
| 765*345*530 |
Weight | 8.5kg/carton |
470-862MHz Full-Band Coverage, Compatible with Global Digital Signals: Designed specifically for the 470-862MHz UHF core frequency band, it fully covers mainstream digital terrestrial television bands. No additional debugging is required to connect to various high-definition TVs and set-top boxes. It is compatible with multiple regional signal standards, avoiding channel loss due to frequency band limitations, and meeting the core needs of home full HD viewing and live sports broadcasts.
15-16dBi Ultra-High Gain, "Signal Capture King" in Weak Signal Areas: With a gain of up to 15-16dBi, compared to ordinary antennas below 10dBi, the signal reception distance is increased by more than 150%. It can accurately capture weak TV signals in extremely remote mountainous areas, deep rural areas, suburbs, and other weak signal blind spots, completely solving the pain points of "no cable TV, network lag," ensuring high-definition pictures without snow, delay, or interruptions.
Low VSWR + Precise Impedance Matching, Signal Transmission Efficiency Exceeds 95%: VSWR (Voltage Standing Wave Ratio) ≤1.5, far exceeding the industry standard of ≤2.0, significantly reducing signal reflection loss; 75Ω standard impedance perfectly matches HDTVs and set-top boxes, avoiding energy waste during signal transmission and ensuring that even weak signals are efficiently converted into clear picture quality.
Aluminum-Plastic Composite Structure + 850mm Optimized Design, Maximizing Outdoor Durability: Utilizing a high-conductivity aluminum vibrator and an anti-aging plastic shell, the aluminum material improves signal transmission efficiency, while the plastic shell is resistant to UV rays, weather corrosion, and extreme temperatures, able to withstand harsh outdoor environments such as high temperatures, heavy rain, and blizzards; the optimized 850mm length balances signal reception quality with installation flexibility, is not prone to deformation or aging over long-term use, and has a lifespan more than 3 times longer than antennas made of ordinary materials.
F-type connector + universal adapter, easy and barrier-free installation: Equipped with an industry-standard F-type connector, no additional adapters are needed; plug and play, even beginners can quickly complete outdoor installations such as rooftops and yard poles; 75Ω impedance adapts to mainstream global TV signal transmission standards, seamlessly connecting to existing equipment for both standalone home installations and mass deployments in villas, guesthouses, and small commercial spaces, with unlimited compatibility.
Application Scenarios
Remote Mountain Homes:Installed on rooftops or high-altitude slopes, 15-16dBi ultra-high gain accurately captures weak signals from a distance.
Rural/Suburban Residences:Fixed to yard walls or terrace brackets; weather-resistant aluminum-plastic material suitable for long-term outdoor use.
Large outdoor venues: Suitable for campsites, RV parks, outdoor sports venues, etc.
Large suburban villas/estates: Covers a wide area surrounding the villa; directional high gain avoids signal interference.
FAQ
Q: What frequency range does GL935 support?
A: It covers the 470-862MHz UHF band, compatible with global mainstream digital HDTV terrestrial signals.
Q: What is the gain range of GL935?
A: Its gain is 15-16dBi, ideal for receiving weak signals in ultra-remote or rural areas.
Q: What connector type does GL935 use?
A: It adopts an F-type connector, widely compatible with HDTVs and digital set-top boxes.
Q: What is the input impedance of GL935?
A: Its input impedance is 75Ω, matching standard HDTV signal transmission requirements.
Q: What materials is GL935 made of?
A: It consists of aluminum (radiation element) and plastic (housing), weatherproof for outdoor use. use.
