English
GL136U14
Asialeren
8517710000
100pc
Accepted
10000pc/day
| Quantity: | |
|---|---|
| PDF Export | |

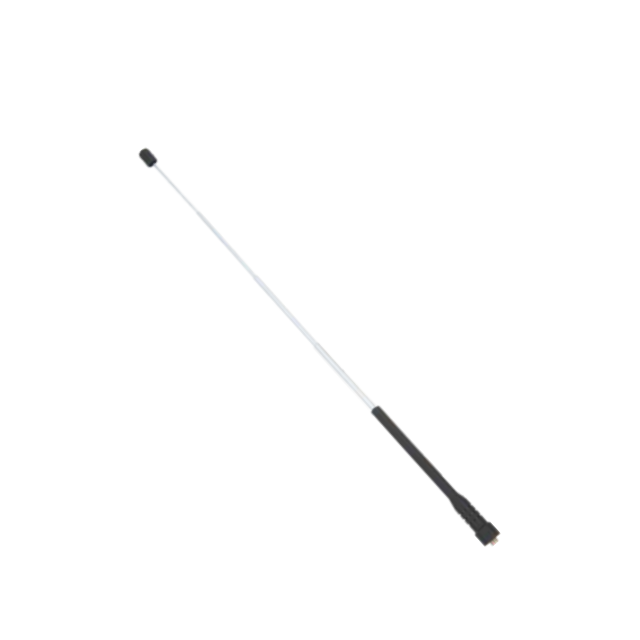

Item | Hand Held Antenna |
PN | GL136U14 |
Frequency Range (MHz) | 136-174/400-450 |
Impedance (Ω) | 50 |
V.S.W.R | <1.5 |
Gain (dBi) | 2.5 |
Connector | SMA-K |
Length-mm | 140 |
Weight | 18g |
Product Introduction
Precise Dual-Band Coverage (136-174/400-450MHz)
Precisely tuned for both VHF (136-174MHz) and UHF (400-450MHz) bands, ensuring optimal signal transmission performance in both bands to meet the precise needs of professional communications and amateur radio enthusiasts.
Optimized Gain Design (2.5dBi)
A carefully designed 2.5dBi gain achieves a perfect balance between signal enhancement and power consumption control, improving communication range while maintaining battery life, making it suitable for extended outdoor use.
Lightweight and Portable Design (140mm/18g)
Weighing only 18 grams and with a reasonable 140mm length, this design greatly enhances carrying comfort while maintaining performance. Special materials and processes ensure the antenna's durability and fatigue resistance.
High-efficiency signal transmission (VSWR < 1.5)
Utilizing advanced impedance matching technology, the voltage standing wave ratio is strictly controlled within 1.5, effectively reducing signal reflection loss and ensuring clear call quality even in weak signal environments.
Universal SMA-K interface design
The standard SMA-K (male) interface design is compatible with the vast majority of handheld wireless devices on the market. Installation is simple and quick, and the connection is stable and reliable, making it an ideal choice for equipment upgrades.
Application Scenarios
●Amateur Radio Communication: Provides precise frequency band coverage for amateur radio enthusiasts, particularly suitable for local and medium-range communication in the VHF/UHF bands.
●Outdoor Adventure and Hiking: Lightweight design suitable for long-distance hiking and mountaineering activities, minimizing weight while ensuring communication quality.
●Commercial and Industrial Applications: Provides reliable daily communication for workers in construction sites, property management, shopping mall security, and other scenarios.
●Emergency Rescue Preparedness: As part of emergency communication equipment, ensures contact with rescue teams during disasters.
●Fleet Management and Dispatch: Provides stable vehicle-to-ground communication support for logistics fleets, taxi fleets, and other mobile work groups.
FAQ
Q: What frequency ranges does the GL136U14 antenna support?
A: It supports dual bands: 136-174MHz (VHF) and 400-450MHz (UHF).
Q: What is the gain of this antenna?
A: It provides 2.5 dBi gain, offering optimized performance for both frequency bands.
Q: How long is the antenna and what does it do? weigh?
A: It measures 140mm in length and weighs only 18 grams.
Q: What type of connector does it use?
A: It features an SMA-K (male) connector.
Q: Is this antenna compatible with my Kenwood or Baofeng radio?
A: Yes, if your radio has a female SMA connector, the GL136UV14 is fully compatible.
Q: What is the V.S.W.R specification?
A: The V.S.W.R is less than 1.5 across both operating bands.
