GL-BLS4001
GLOBAL
8517710000
10pc
Accepted
1000PC/Day
| Quantity: | |
|---|---|
| PDF Export | |
Frequency Range (MHz) |
B1I, B2b, B3I, L, S
|
Maximum Gain | B1I≥1dBi B2b≥1dBi B3I≥1dBi L≥-1dBi S≥-1dBi
|
Polarization | B1I, B2b, B3I, S(RHCP) L(LHCP)
|
Impedance | 50Ω
|
In-band Flatness |
±1dB
|
Axial Ratio | ≤3dB
|
Storage temperature | -45℃ to +85℃
|
Operating temperature | -40℃ to +80℃
|
Horizontal Coverage Angle | 360°
|
VSWR | ≤2.0
|
Phase Center
| ±5mm
|
Humidity | 95% Non-condensing
|

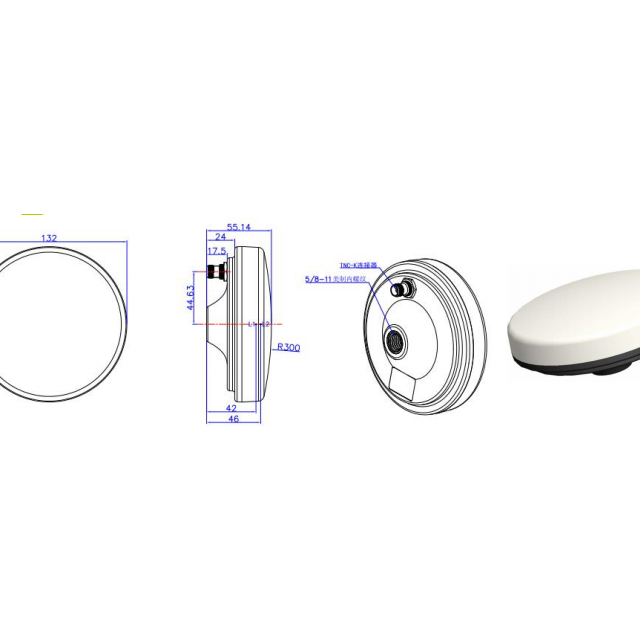

Dimensions | ɸ55X132
|
Connector | TNC |
Weight | ≤350g |
