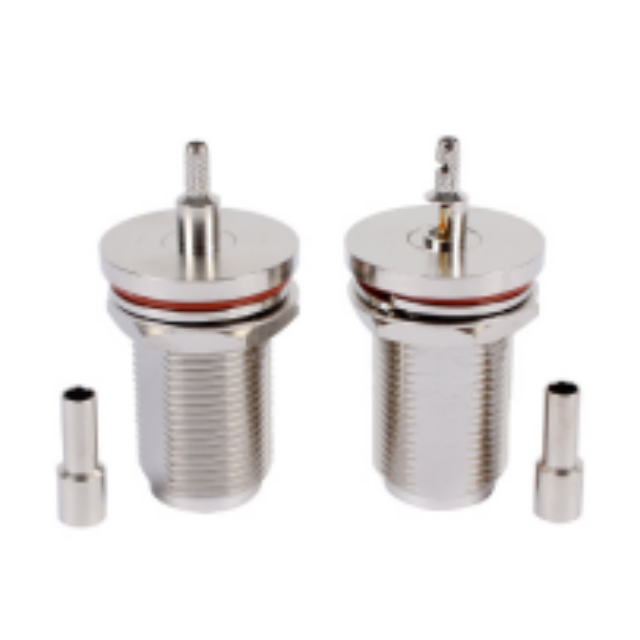

GL-NCKY1.5
Asialeren
8517710000
100pc
Accepted
10000pc/day
| Quantity: | |
|---|---|
| PDF Export | |
Frequency Range(GHz) | 9 |
Impedance(ohm) | 50 |
VSWR | 1.10 |
Test voltage(max) | 2500 V |
PIM(3rd order) | ≤-160 dBc @ 2 x 20 W |
Mating Cycles | ≥ 500 |
Coupling Torque | Max 1.7 Nm |
Recommended Coupling Torque | 0.7-1.1 Nm |
Temperature Range | -55℃-+155℃ |
Outer Contact | Brass CuSnZn Plating |
Center Contact | Brass Ag Plating |
Cable Group | N/A |
Plating | CuSnZn |
Length(mm) | Ф21.8*38.2*4.8 |
Product Introduction
1. Operates at 9GHz frequency with 50Ω standard impedance, enabling compatible and high-quality high-frequency signal transmission.
2. Boasts ultra-low VSWR (1.10) and 3rd-order PIM ≤-160dBc @ 2x20W, minimizing signal reflection and interference effectively.
3. Durable construction: Outer contact with Brass CuSnZn plating and center contact with Brass Ag plating for excellent conductivity and corrosion resistance.
4. Supports ≥500 mating cycles, with recommended coupling torque of 0.7-1.1Nm (max 1.7Nm) for reliable repeated connection and disconnection.
5. Withstands extreme temperatures (-55℃ to +155℃) and 2500V max test voltage, adapting to harsh industrial, outdoor and aerospace scenarios.
Application Scenarios
1. 4G/5G telecom base stations for stable high-frequency signal transmission between equipment.
2. Satellite communication and microwave systems requiring low interference and reliable connectivity.
3. Industrial test instruments (signal analyzers, network analyzers) for precise 9GHz band measurements.
4. Aerospace and military electronics operating in extreme temperature and high-voltage conditions.
5. Outdoor wireless communication devices (IoT gateways, Wi-Fi base stations) needing durable signal connections.
