GL2100V8
Asialeren
8517710000
100pc
Accepted
10000pc/day
| Quantity: | |
|---|---|
| PDF Export | |

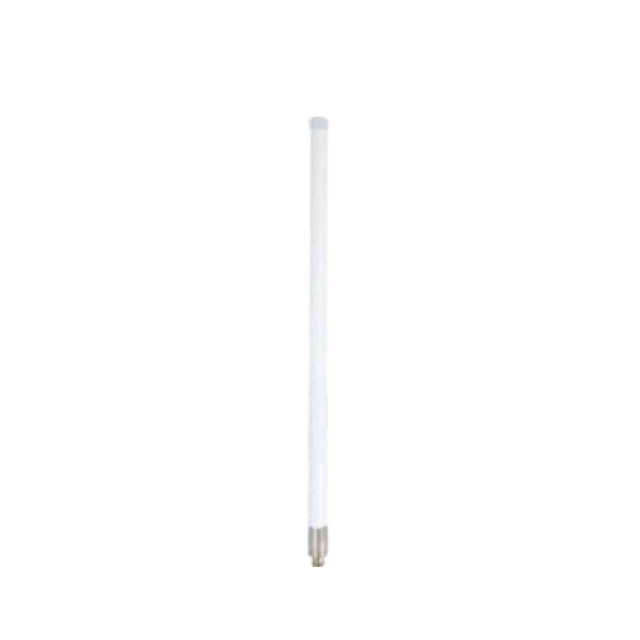

Item | Mobile whip antenna |
PN | GL2100V8 |
Frequency Range (MHz) | 2100-2170 |
Impedance (Ω) | 50 |
Max power input（W） | 50 |
V.S.W.R | <1.5 |
Gain (dBi) | 8 |
connector | N-K |
length | 600mm |
Mast diameter | 25mm |
Weight | 130g |
Product Introduction
Precise Frequency Band Optimization, Professional Communication Guarantee
Precisely tuned for the 2100-2170MHz frequency band, perfectly matching the uplink frequency bands of 3G UMTS and some 4G LTE networks. Within this core frequency band, it provides excellent Voltage Standing Wave Ratio (VSWR) <1.5, ensuring maximum signal transmission efficiency.
Superior High Gain Performance, Extended Coverage
Up to 8dBi gain significantly improves signal reception sensitivity and transmission efficiency, effectively expanding the communication coverage radius and providing reliable link budget margins for mobile relay, long-distance communication, and other scenarios.
Professional-Grade Connection Interface, Guaranteed Signal Integrity
Utilizing N-K type connectors, it possesses excellent shielding performance and connection stability, effectively reducing high-frequency signal transmission loss and ensuring stable operation and signal purity at 50W high power.
Lightweight and Robust Design, Balancing Performance and Durability
Weighing only 130g, with a 600mm length and 25mm rod diameter, it achieves optimal radiation efficiency within a compact size; its robust structure can withstand the vibrations and wind resistance challenges of vehicle operation.
High-power design to meet stringent requirements
Supports a maximum input power of 50W, far exceeding the requirements of ordinary commercial equipment, providing ample power assurance for demanding scenarios such as professional communication systems, mobile base stations, and emergency communications.
Application Scenarios
Mobile Communication Vehicles: Emergency communication vehicles, mobile network coverage vehicles for operators
Temporary Base Station Deployment: Antenna solutions for temporary base stations at major events and disaster sites
Remote Data Acquisition: Vehicle-mounted mobile antenna for data backhaul systems in remote areas
Professional Video Transmission: Uplink antenna for broadcast-grade mobile video live streaming vehicles
Emergency Command Systems: Communication link between on-site emergency command centers and rear bases
FAQ
Q: Does this antenna support 4G LTE networks?
A: It mainly covers the 2100-2170MHz frequency band, which is the core frequency band of 3G UMTS and the uplink frequency band of some 4G LTE networks. Please confirm that your device's operating frequency band matches this.
Q: What are the advantages of 8dBi high gain in mobile environments?
A: High gain significantly improves signal strength, better maintains link stability during movement, and extends the effective communication range, making it particularly suitable for ensuring communication in edge signal areas.
Q: How do I connect the N-K interface to my device?
A: If your device has other interface types (such as SL-16 or SMA), you will need to use an N-K to corresponding interface adapter for adaptation.
Q: What precautions should be taken when installing the antenna?
A: It is recommended to install it in the center of an open metal surface, such as a vehicle roof, to achieve the best grounding effect. Ensure all connections are secure and waterproof.
Q: Can this antenna be used for fixed stations?
A: Yes. As long as the frequency band is matched, it can also be used as a high-performance short antenna for fixed stations, and installation is convenient.
Q: Does the 600mm length affect vehicle passability?
A: 600mm is a medium length and can pass through most underground parking garages. However, caution is still needed in extremely low-profile environments; its tough material design can withstand minor scratches.
