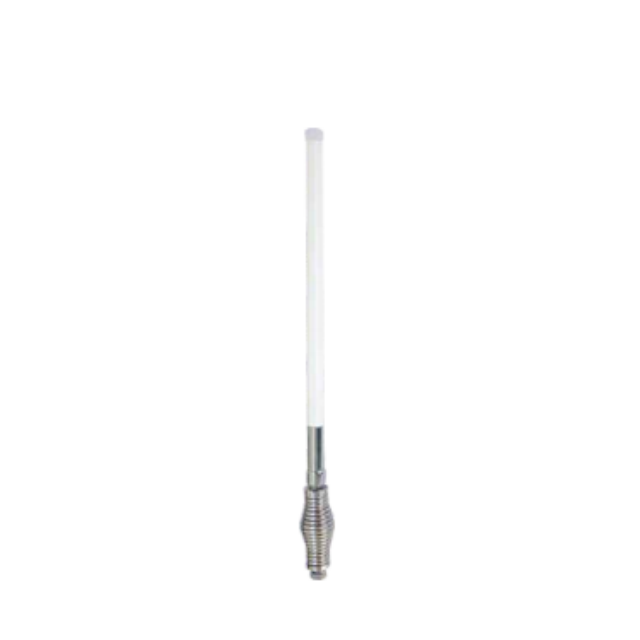

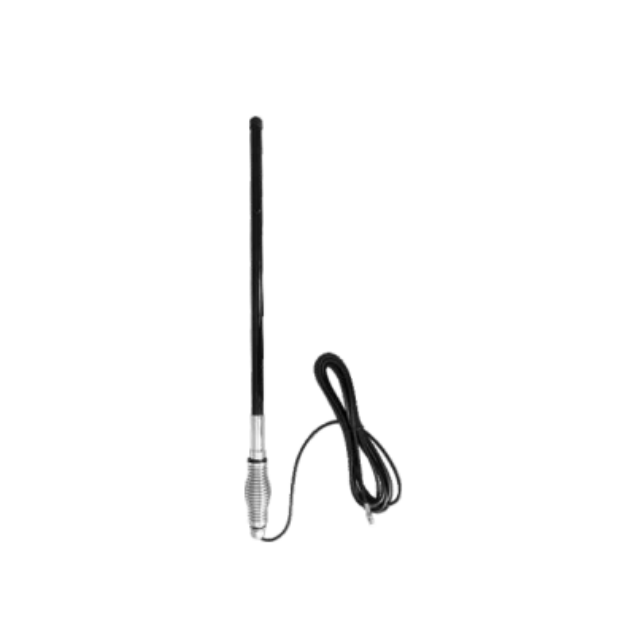

Item | Mobile whip antenna |
PN | GL80627 |
Frequency Range (MHz) | 806-960/1710-2700 |
Impedance (Ω) | 50 |
Max power input（W） | 50 |
V.S.W.R | <1.5 |
Gain (dBi) | 4/6.5 |
connector | SL-16/FME |
length | 600mm |
Mast diameter | 426mm |
Weight | 250g |
Product Introduction
Professional Dual-Band Coverage, Compatible with Critical Communication Systems
Precisely covers two core frequency bands: 806-960MHz and 1710-2700MHz, perfectly compatible with 800MHz public safety trunking, 900MHz commercial walkie-talkies, and 1800MHz/2100MHz/2600MHz 4G LTE public network communication—one chip, multiple functions.
Intelligent Gain Configuration, High and Low Bands Each Showcase Their Strengths
Optimized performance for different frequency bands: The 806-960MHz band provides a stable 4dBi gain, ensuring critical voice communication; the 1710-2700MHz high-frequency band achieves a high 6.5dBi gain, significantly improving data transmission rate and stability.
Compact Low-Profile Design, Balancing Performance and Passability
A total length of 600mm and a weight of only 250g achieves low wind resistance and high concealment; avoiding scratches in garages and forest roads, especially suitable for police cars, official vehicles, and other professional vehicles that need to frequently enter and exit various locations.
Dual Interface Options for Flexible and Convenient Installation
Offering two mainstream interface options, SL-16 and FME, it flexibly adapts to the interface standards of different brands of vehicle radios and CPE equipment, greatly simplifying the installation process and improving equipment compatibility.
Rugged Construction and Precision Tuning for Professional-Grade Reliability
Even with its compact size, it is precisely designed to ensure a VSWR (Standing Wave Ratio) of less than 1.5 across two wide frequency bands, guaranteeing effective power radiation and system safety, meeting the stringent reliability requirements of professional fields.
Application Scenarios
●Public Safety Vehicles: 800MHz digital trunking voice system and LTE data terminal for police cars, fire trucks, and ambulances.
●Critical Infrastructure Inspection: Inspection vehicles of power grids, water utilities, and gas companies, equipped with dedicated network intercom and video transmission equipment.
●Logistics and Transportation Fleets: Dispatch using a 900MHz intercom system, while utilizing LTE networks for positioning and management.
●Emergency Communication Vehicles/Command Vehicles: Serving as the communication hub antenna for on-site mobile command centers, ensuring uninterrupted voice and data transmission.
●High-end Commercial Vehicles: Providing integrated communication solutions for company vehicles requiring silent connectivity.
FAQ
Q: Can this antenna operate on two frequency bands simultaneously?
A: Yes. The GL80627 is a true dual-band antenna, capable of simultaneously transmitting and receiving signals on two frequency bands (806-960MHz and 1710-2700MHz) without switching.
Q: Can it be used to enhance the cell phone signal in my car?
A: Yes. Its 1710-2700MHz band fully covers mainstream 4G LTE Bands 1, 2, 3, 4, and 7. When connected to a vehicle signal amplifier (repeater), it effectively enhances cell phone and data card signals within the vehicle.
Q: Which should I choose between the SL-16 and FME interfaces?
A: The SL-16 interface is more robust and commonly used in high-power car radios; the FME interface is smaller and commonly found in data devices such as LTE routers. Please choose according to the interface type of your device.
Q: How is the antenna gain distributed across different frequency bands?
A: In the 806-960MHz band, the gain is approximately 4dBi; in the 1710-2700MHz band, the gain increases to approximately 6.5dBi. This is an optimized design for different wavelengths and communication requirements.
Q: Will the 600mm length affect performance in the low-frequency band?
A: No. The antenna employs a special loading technique internally, achieving good electrical performance in the 806MHz low-frequency band while maintaining a compact physical size, ensuring high efficiency across the entire frequency band.
