English
GLC8FG3B
Asialeren
8517710000
50pc
Accepted
10000pc/day
| Quantity: | |
|---|---|
| PDF Export | |
| |||
Frequency Range (MHz) | 830-890 | ||
Horizontal beam width(°) | 360 | ||
Vertical beam width (°) | 60 | ||
Gain (dBi) | 3 | ||
Polarization | vertical | ||
VSWR | ≤2.0 | ||
Maximum input power (W) | 150 | ||
Impedance (Ω) | 50 | ||
Mechanical Specifications | |||
Dimensions (mm) | Φ20×300 | ||
Antenna weight (Kg) | 0.2 | ||
Radome material | fiberglass | ||
Radome color | Grey | ||
Input connector type | N-K | ||
Environmental indicators | |||
Usage scenarios | Outdoor | ||
Operating temperature (℃) | -40 to +70 | ||
Humidity range (%) | 5 to 95 | ||
Maximum wind speed (km/h) | 200 | ||
Installing the Hardware | |||
Installation | Connector fixing | ||
Wide Frequency Coverage: Optimized for 830–890MHz bands, ideal for cellular and professional communication systems.
Omnidirectional Signal Coverage: 360° horizontal beam width ensures stable signal reception in all directions.

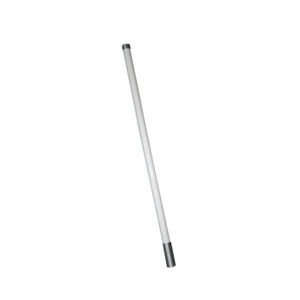

Durable Fiberglass Construction: Weather-resistant radome suited for harsh outdoor environments (-40°C to +70°C).
High Power Handling: Supports up to 150W input power, suitable for high-power transmission applications.
Easy Installation: Comes with N-K connector for simple and secure mounting.
Cellular base stations
GSM900 communication systems
Public safety and trunking radio systems
Rural and remote area signal enhancement
Indoor and outdoor distributed antenna systems (DAS)
Q:What is the frequency range of this antenna?
A:It operates from 830MHz to 890MHz.
Q:Can this antenna be used indoors?
A:Yes, but it is designed for outdoor use with strong environmental resistance.
Q:What type of connector does it use?
A:It uses an N-K type female connector.
Q:Is the antenna waterproof?
A:The fiberglass radome offers good weather resistance, but the connector should be properly sealed for full waterproofing.
Q:What is the maximum wind speed it can withstand?
A:It can withstand winds up to 200 km/h.
Q:What is the typical gain of this antenna?
A:The gain is 3 dBi.
Q:Can it be used for FM or WiFi signals?
A:No, it is specifically tuned for 830–890MHz bands and not suitable for WiFi or FM frequencies.
| |||
