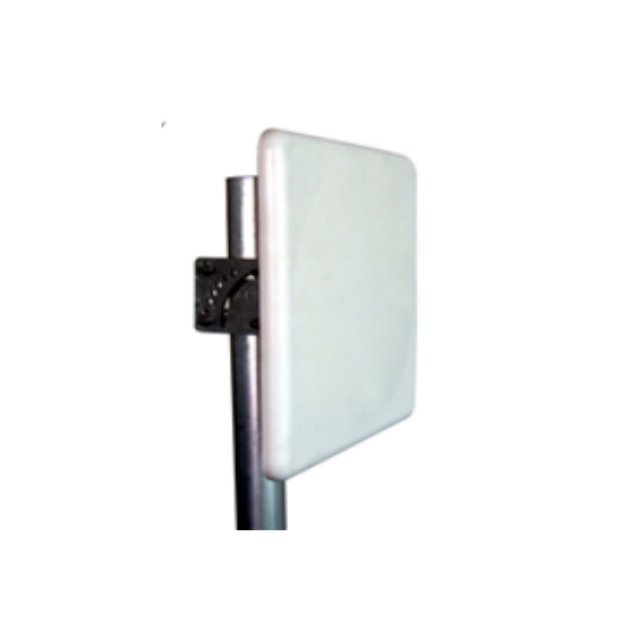

GL2473VH60-8
Asialeren
8517710000
| Quantity: | |
|---|---|
| PDF Export | |
Electrical Specifications | ||
Frequency Range-MHz | 2400-2500/5150-5850MHz | 5150-7350MHz |
Polarization | 2×V+2×H | 2×V+2×H |
VSWR | ≤2.0 | |
Gain-dBi | 8dBi | |
Horizontal beam width | 65° | 60° |
Verticalbeam width | 60° | 55° |
Front-to-back ratio-dB | ≥20dB | |
Isolation | ≥20dB | |
Input Impedance-Ω | 50Ω | |
Maximum input power-W | 50W | |
Mechanical Specifications | ||
Input connector type | 8*NF | |
Connector location | back | |
Installation | Pole-holding | |
Dimensions-mm | 306×306×25mm | |
Antenna weight-KGS | 2.0kg | |
Radome material | ABS | |
Radome color | white | |
Operating temperature | -40°C to +65 °C | |
Extreme wind speed | 60 m/s | |
Pole diameter | ￠35～￠50mm | |
Product Introduction
Dual-Band Coverage (2400-2500MHz & 5150-5850MHz): Supports both 2.4GHz and 5GHz frequencies, ensuring compatibility with modern WiFi routers and IoT devices.
High Gain & Wide Beamwidth (8dBi, 65° Horizontal/60° Vertical): Delivers extended signal reach and stable coverage for large areas like stadiums or conference halls.
Durable ABS Radome & Extreme Weather Resistance: Built with robust ABS material and operates in temperatures from -40°C to +65°C, ideal for harsh outdoor environments.
8-Port Design with 50Ω Impedance: Enables seamless integration into multi-device setups, reducing signal loss and optimizing network performance.
Pole-Mounted Installation & Windproof Design: Supports pole diameters of 35-50mm and withstands extreme wind speeds up to 60 m/s for reliable outdoor deployment.
Application scenarios
Outdoor WiFi Expansion: Deploy in parks, campuses, or rural areas for extended wireless coverage.
Enterprise Networks: Enhance connectivity in offices, warehouses, or industrial complexes.
High-Density Venues: Optimize signal distribution in stadiums, conference centers, or shopping malls.
IoT & Smart City Projects: Support large-scale wireless sensor networks or surveillance systems.
FAQ
Q:What is the frequency range of the GL2473VH60 - 8 WIFI small panel antenna?
A:The frequency range is 2400 - 2500/5150 - 5850MHz and 5150 - 7350MHz.
Q:What is the gain of the GL2473VH60 - 8 antenna?
A:The gain of the GL2473VH60 - 8 antenna is 8dBi.
Q:How many ports does the GL2473VH60 - 8 antenna have?
A:The GL2473VH60 - 8 antenna has 8 ports.
Q:What is the input impedance of the GL2473VH60 - 8 antenna?
A:The input impedance of the GL2473VH60 - 8 antenna is 50Ω.
Q:What type of radome does the GL2473VH60 - 8 antenna have?
A:The GL2473VH60 - 8 antenna has an ABS radome.
Q:What is the installation method of the GL2473VH60 - 8 antenna?
A:The GL2473VH60 - 8 antenna is installed using the pole - holding method.
Q:What is the maximum wind speed the GL2473VH60 - 8 antenna can withstand?
A:The GL2473VH60 - 8 antenna can withstand an extreme wind speed of 60 m/s.
Q:What is the front - to - back ratio of the GL2473VH60 - 8 antenna?
A:The front - to - back ratio of the GL2473VH60 - 8 antenna is ≥20dB.
