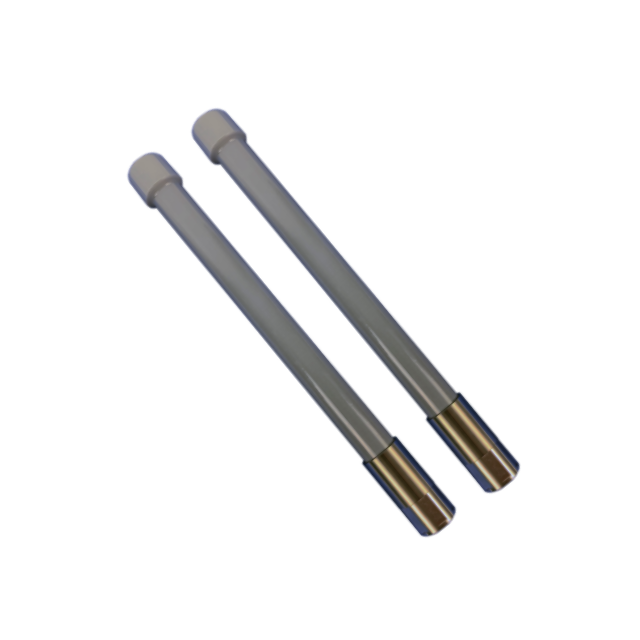

700-770MHz 3dBi Omnidirectional Fiberglass Outdoor Antenna GLL7FG3B

700-770MHz 3dBi Omnidirectional Fiberglass Outdoor Antenna GLL7FG3B

Precise low-band coverage, suitable for 4G/5G core scenarios.
3dBi high gain and omnidirectional coverage provide strong signal strength with no blind spots.
150W high power handling, suitable for industrial-grade, high-load equipment.
Ultra-lightweight and compact size, plus easy installation, ensure efficient deployment.

Model:
GLL7FG3B
Brand:
Asialeren
Code:
8517710000
MOQ:
50pc
OEM&ODM:
Accepted
Capacity:
10000pc/day
Download:
GLL7FG3B.pdf

Quantity:
Availability:





Inquiry Add to Basket PDF Export

Product Description

Electrical Specifications
Frequency Range (MHz)	700-770
Horizontal beam width(°)	360
Vertical beam width (°)	60
Gain (dBi)	3
Polarization	Vertical
VSWR	≤2.0
Maximum input power (W)	150
Impedance (Ω)	50
Mechanical Specifications
Dimensions (mm)		Φ20×300
Antenna weight (Kg)		0.2
Radome material		fiberglass
Radome color		grey
Input connector type		N-K
Environmental indicators
Usage scenarios			Outdoor
Operating temperature (℃)			-40 to +70
Humidity range (%)			5 to 95
Maximum wind speed (km/h)			200
Installing the Hardware
Installation			Connector fixing

Product Introduction

Precise Frequency Coverage: Optimized for 700-770MHz bands, ideal for LTE and professional communication systems.
Omnidirectional Signal Coverage: 360° horizontal beam width ensures stable all-direction signal reception.
Durable Fiberglass Radome: Weather-resistant design suitable for harsh outdoor environments (-40°C to +70°C).
High Power Handling Capacity: Supports up to 150W input power, perfect for base station and repeater applications.
Standard N-K Connector: Provides reliable connection compatibility with various communication devices.

Application scenarios

LTE 700MHz band base stations
Public safety and emergency communication systems
Rural area signal enhancement projects
Industrial wireless communication networks
Fixed wireless access (FWA) systems

Application of anti-drone antenna

FAQ

Q: What frequency range does GLL7FG3B cover?
A: It is designed for the 700-770MHz frequency range, ideal for 4G/5G outdoor communication.

Q: What is the gain of GLL7FG3B?
A: It has a high gain of 3dBi, which enhances signal strength and extends coverage distance.

Q: Is GLL7FG3B an omnidirectional antenna?
A: Yes, it features a 360° horizontal beam width, enabling omnidirectional signal coverage without blind spots.

Q: What connector type does GLL7FG3B use?
A: It uses an N-K type input connector for easy and stable installation.

Q: What is the maximum input power GLL7FG3B can handle?
A: It can withstand a maximum input power of 150W, compatible with industrial high-load devices.

Q: Can GLL7FG3B resist strong winds?
A: Yes, it can withstand a maximum wind speed of 200km/h, making it highly wind-resistant for outdoor use.
