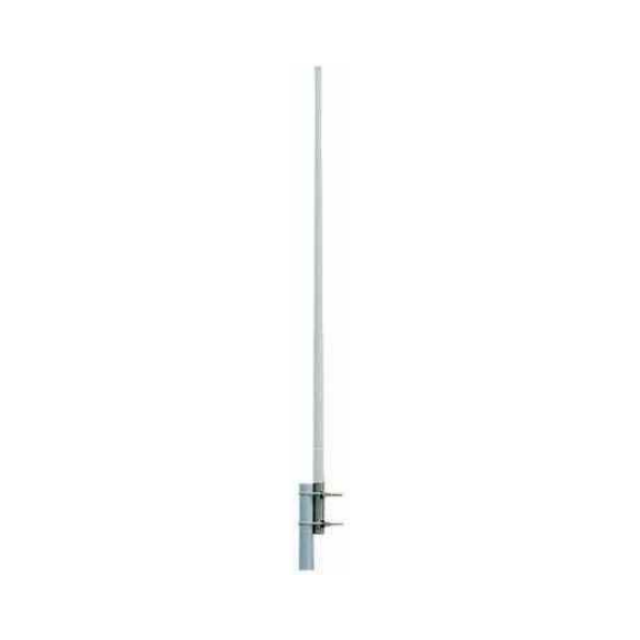

Item | Fiberglass Antenna |
PN | GL500C |
Frequency(Mhz) | 500-600 |
Bandwidth(MHz) | 16 |
Gain(dBi) | 7.2 |
Vertical Beamwidth(°) | 20 |
Horizontal Beamwidth(°) | 360 |
VSWR | ≤1.5 |
Nominal Impedance(Ω) | 50 |
Polarization | Vertical |
Maximum Power(W) | 100 |
Dimensions(mm) | 18000 |
Weight(kg) | 1.5 |
Connector | N female or Customization |
Product Introduction
Wide Targeted Coverage: Operates stably within 500-600 MHz with 16 MHz bandwidth for specialized outdoor communication.
High Gain & Omnidirectional Performance: Delivers 7.2 dBi gain, paired with 360° horizontal beamwidth and 20° vertical beamwidth for long-range full-range coverage.
Superior Signal Quality: Boasts ≤1.5 VSWR and 50Ω nominal impedance to minimize signal loss and ensure stable transmission.
Reliable Power Handling: Supports maximum input power of 100W, meeting high-demand outdoor operation requirements.
Durable & Flexible Design: Features fiberglass construction (1.5kg weight) with N Female connector or customization option for diverse integration needs.
Outdoor Regional Communication Networks: Ideal for utility, transportation, and rural area wireless trunking systems.
Industrial Outdoor Monitoring: Suitable for mining, oil fields, and industrial park IoT sensor connectivity.
Public Safety Field Operations: Applied in emergency response, search and rescue, and field public safety communication.
Long-Range Outdoor IoT Infrastructure: Supports remote device connectivity for environmental monitoring or agricultural sensors.
Customized Outdoor Wireless Setups: Compatible with specialized outdoor communication systems requiring tailored connectors.
FAQ
Q: What frequency range and bandwidth does this fiberglass antenna cover?A: It covers 500-600 MHz with a 16 MHz bandwidth for specialized outdoor communication needs.
A: It provides 7.2 dBi high gain, 360° horizontal omnidirectional coverage, and 20° vertical beamwidth.
A: It has a maximum power handling capacity of 100W for reliable outdoor operation.
A: It adopts vertical polarization, comes with an N Female connector as standard, and supports customization.
A: The VSWR is ≤1.5, ensuring efficient power transfer and low signal reflection.
A: It has a length of 18000 mm and weighs 1.5kg, featuring durable fiberglass construction for outdoor rugged use.
