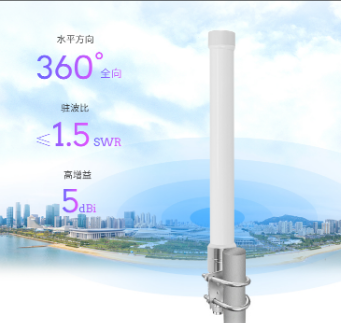

GL-DY1922V8
Asialeren
8517710000
50pc
Accepted
10000pc/day
| Quantity: | |
|---|---|
| PDF Export | |
Electrical Specifications | |
Frequency Range- MHz | 1920-2170 |
VSWR | ≤2.0 |
Gain- dBi | 8 |
Horizontal beam width | 360° |
Vertical beam width | 15° |
Polarization | Vertical |
Input Impedance-Ω | 50 |
Maximum input power- W | 100 |
Lightning protection | DC Ground |
Mechanical Specifications | |
Input connector type | N-K |
Connector place | Bottom |
Dimensions- mm | Ф20×600 |
Antenna weight- kg | 0.56 |
Radome material | Fiberglass |
Radome color | gray |
Operating temperature | -40°c～60°c |
Rated Wind Velocity- m/s | 60 |
Mounting hardware- mm | ￠35～￠60 |
Differences between similar products
P/N | GL-DY1922V8 | GL-DY2600V11 | GL - DY3500V11 |
Frequency-Mhz | 1920-2170 | 2500-2700MHz | 3400-3600 |
Gain-dBi | 8 | 11 | 11 |
Antenna Dimension-mm | Ф20×600 | Ф20×915 | Ф20×790 |
Product Introduction
●Versatile 3G Coverage: Designed to support 3G systems, this antenna ensures robust connectivity in point-to-multipoint applications, making it ideal for both commercial and industrial use.
●Superior Durability: Crafted with high-quality fiberglass radome, our antenna is built to withstand harsh environmental conditions, ensuring reliable performance regardless of the weather.
●Easy Installation: Equipped with a standard N-K connector, this antenna offers straightforward integration with a variety of devices, simplifying your setup process.
●Optimal Size and Weight: Measuring Ф20 × 600mm and weighing only 0.56kg, this lightweight and compact antenna can be easily mounted in various locations, providing flexibility and convenience in installation.
●Sleek Design: Featuring a discreet gray color, our radome blends in with most environments, making it an aesthetically pleasing choice for both indoor and outdoor applications.
●All-Weather Operation: This omni antenna is engineered for seamless operation in all conditions—rain, snow, or shine—providing year-round connectivity without interruptions.
FAQ
Q:Can I get one sample?
A:Yes, sample is available.
Q:What's the delivery time?
A:3-5 working days for the sample, 10-15 working days for quantity below 5K.
Q: What is the frequency range of the 3G Fiberglass Omni Antenna?
A:The 3G Fiberglass Omni Antenna operates within the frequency range of 1920-2170MHz. This makes it ideal for diverse 3G applications, ensuring reliable connectivity and performance.
Q: Is this antenna suitable for outdoor use?
A:Absolutely! Our 3G Fiberglass Omni Antenna is designed for all-weather operation, showcasing strong environmental adaptability. Its high-quality fiberglass radome protects it against various outdoor conditions, ensuring durability and consistent performance.
Q: What type of connector does the antenna use?
A: This antenna features an N-K connector, which provides a secure and reliable connection, making it easy to integrate into your existing network hardware.
Q: Can this antenna be used for point-to-multipoint applications?
A: Yes, the 3G Fiberglass Omni Antenna is specifically designed for point-to-multipoint applications. It effectively supports multiple connections, making it an excellent choice for expansive network setups.
Q: What are the dimensions and weight of the antenna?
A: The antenna measures Ф20×600mm and weighs 0.56kg, making it compact yet powerful. Its size allows for easy installation while maintaining robust performance across your communication needs.
Q: What color is the antenna?
A: The antenna comes in a sleek gray color, allowing it to blend seamlessly into various environments without compromising on style or functionality.
Electrical Specifications | |
Frequency Range- MHz | 1920-2170 |
VSWR | ≤2.0 |
Gain- dBi | 8 |
Horizontal beam width | 360° |
Vertical beam width | 15° |
Polarization | Vertical |
Input Impedance-Ω | 50 |
Maximum input power- W | 100 |
Lightning protection | DC Ground |
Mechanical Specifications | |
Input connector type | N-K |
Connector place | Bottom |
Dimensions- mm | Ф20×600 |
Antenna weight- kg | 0.56 |
Radome material | Fiberglass |
Radome color | gray |
Operating temperature | -40°c～60°c |
Rated Wind Velocity- m/s | 60 |
Mounting hardware- mm | ￠35～￠60 |
Differences between similar products
P/N | GL-DY1922V8 | GL-DY2600V11 | GL - DY3500V11 |
Frequency-Mhz | 1920-2170 | 2500-2700MHz | 3400-3600 |
Gain-dBi | 8 | 11 | 11 |
Antenna Dimension-mm | Ф20×600 | Ф20×915 | Ф20×790 |
Product Introduction
●Versatile 3G Coverage: Designed to support 3G systems, this antenna ensures robust connectivity in point-to-multipoint applications, making it ideal for both commercial and industrial use.
●Superior Durability: Crafted with high-quality fiberglass radome, our antenna is built to withstand harsh environmental conditions, ensuring reliable performance regardless of the weather.
●Easy Installation: Equipped with a standard N-K connector, this antenna offers straightforward integration with a variety of devices, simplifying your setup process.
●Optimal Size and Weight: Measuring Ф20 × 600mm and weighing only 0.56kg, this lightweight and compact antenna can be easily mounted in various locations, providing flexibility and convenience in installation.
●Sleek Design: Featuring a discreet gray color, our radome blends in with most environments, making it an aesthetically pleasing choice for both indoor and outdoor applications.
●All-Weather Operation: This omni antenna is engineered for seamless operation in all conditions—rain, snow, or shine—providing year-round connectivity without interruptions.
FAQ
Q:Can I get one sample?
A:Yes, sample is available.
Q:What's the delivery time?
A:3-5 working days for the sample, 10-15 working days for quantity below 5K.
Q: What is the frequency range of the 3G Fiberglass Omni Antenna?
A:The 3G Fiberglass Omni Antenna operates within the frequency range of 1920-2170MHz. This makes it ideal for diverse 3G applications, ensuring reliable connectivity and performance.
Q: Is this antenna suitable for outdoor use?
A:Absolutely! Our 3G Fiberglass Omni Antenna is designed for all-weather operation, showcasing strong environmental adaptability. Its high-quality fiberglass radome protects it against various outdoor conditions, ensuring durability and consistent performance.
Q: What type of connector does the antenna use?
A: This antenna features an N-K connector, which provides a secure and reliable connection, making it easy to integrate into your existing network hardware.
Q: Can this antenna be used for point-to-multipoint applications?
A: Yes, the 3G Fiberglass Omni Antenna is specifically designed for point-to-multipoint applications. It effectively supports multiple connections, making it an excellent choice for expansive network setups.
Q: What are the dimensions and weight of the antenna?
A: The antenna measures Ф20×600mm and weighs 0.56kg, making it compact yet powerful. Its size allows for easy installation while maintaining robust performance across your communication needs.
Q: What color is the antenna?
A: The antenna comes in a sleek gray color, allowing it to blend seamlessly into various environments without compromising on style or functionality.
