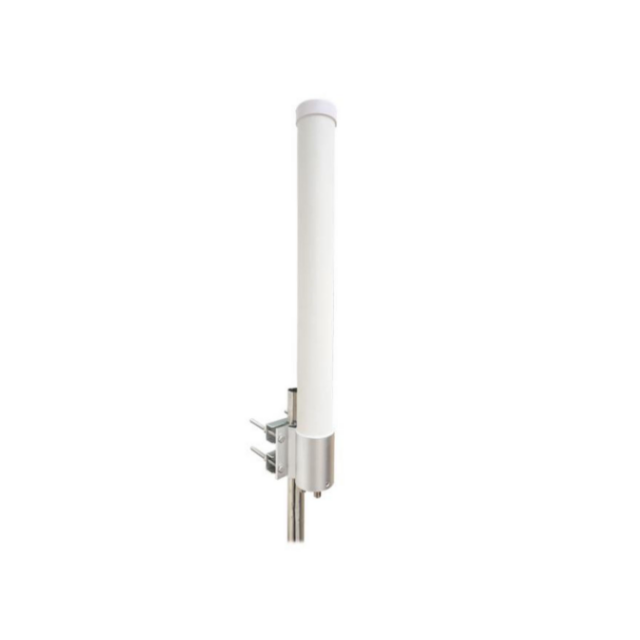

GL-Q6060F05X4DP
Asialeren
8517710000
5pc
Accepted
10000pc/day
| Quantity: | |
|---|---|
| PDF Export | |
Frequency Range | 600-960/1710-6000MHzX4 |
Gain | 5dBiX4 |
Horizontal Beam width | 360° |
Vertical Beam width | 21° |
V.S.W.R | 600-960MHz≤4.5;1710-6000MHz≤1.8 |
Radiation | Omni-Direction |
Polarization | Vertical & Horizontal |
Lightning Protection | DC Grounded |
Maximum Input Power | 100W |
Impedance | 50Ώ |
Connector | 4xN Female |
Antenna Radome Material | PVC |
Mounting way | Pole |
Diameter of Installation Pole | Ø30~Ø50mm |
Mechanical | |
Dimensions | Φ75x850mm |
Weight | 2.5KG |
Operating Temperature | -40℃ to+80℃ |
Rated wind velocity(m/s) | 60m/s |
RoHS Compliant | YES |
Product introduction
1. Ultra-Wide Frequency Coverage
Supports 600-960MHz and 1710-6000MHz frequency bands, compatible with LTE, 5G NR, CBRS, and WiFi systems, reducing the need for multiple antennas.
2. Advanced 4x4 MIMO Technology
Built with four independent radiation elements to improve data throughput, signal stability, and network efficiency for modern wireless communication systems.
3. 360° Omni-Directional Coverage
Provides full horizontal signal coverage with 360° beamwidth, ideal for outdoor deployments requiring broad and stable wireless connectivity.
4. Rugged Outdoor Design
Constructed with durable PVC radome material, DC grounded lightning protection, and resistance to harsh weather conditions with operating temperatures from -40℃ to +80℃.

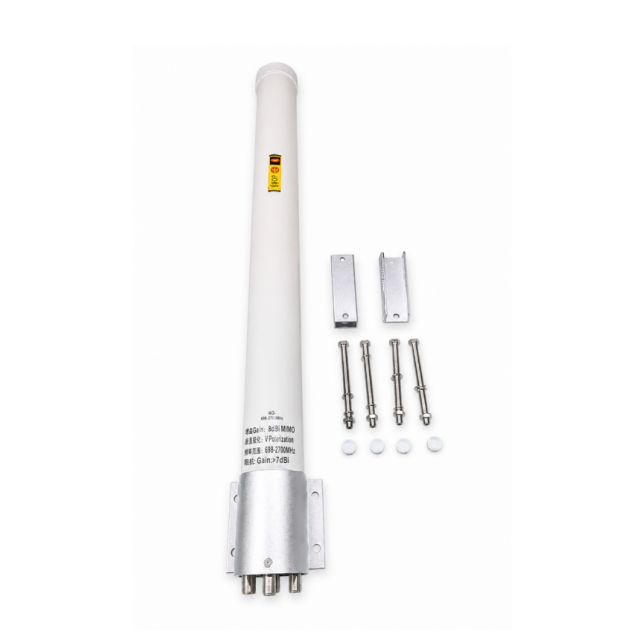

5. Easy Pole Mount Installation
Designed for convenient outdoor installation on poles with diameters from Ø30-Ø50mm, suitable for telecom sites, industrial facilities, and commercial buildings.
Application Scenarios

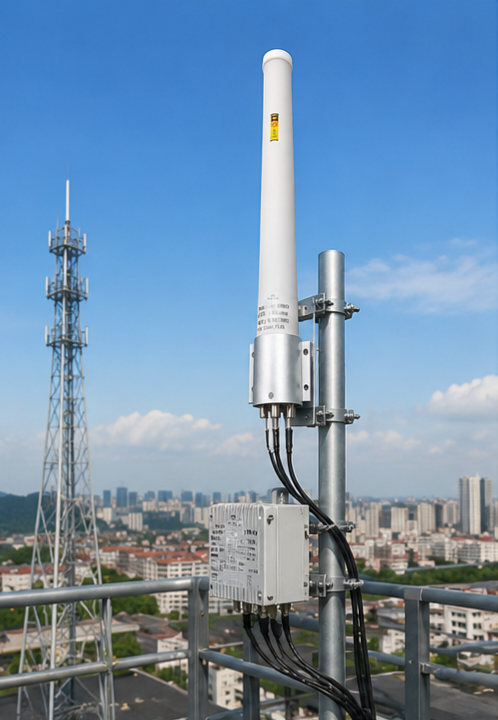

5G & LTE Base Station Signal Coverage
CBRS Private Network Deployment
Industrial Wireless Communication Systems
Smart City & IoT Network Infrastructure
Outdoor WiFi & Campus Network Coverage
FAQ
Q:What frequency bands does this antenna support?
A:This antenna supports ultra-wideband frequencies from 600MHz to 6000MHz, including LTE, 5G NR, CBRS, and WiFi bands.
Q: Is this antenna suitable for 5G applications?
A:Yes, it is specifically designed for 5G and LTE communication systems with 4x4 MIMO capability.
Q: What is the antenna gain?
A:The antenna provides 5dBi gain for each port.
Q:Does the antenna support outdoor installation?
A:Yes, it features a weather-resistant PVC radome and operates in temperatures from -40℃ to +80℃.
Q: What connector type does the antenna use?
A:It comes with 4×N Female connectors.
Q: Can this antenna be used for CBRS networks?
A:Yes, it supports CBRS frequency bands from 3400-3800MHz.
Q: What mounting method is supported?
A:The antenna supports pole mounting for poles with diameters between Ø30mm and Ø50mm.
Q: Is lightning protection included?
A:Yes, the antenna is DC grounded for lightning protection and improved operational safety.
