GL65DP15-042JS
Asialeren
8517710000
10pc
accepted
10000pc/day
| Quantity: | |
|---|---|
| PDF Export | |

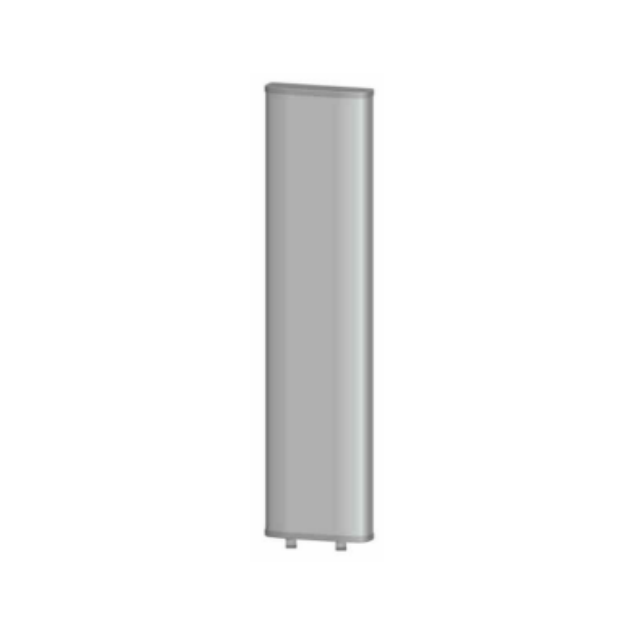

Item | Panel Antenna |
PN | GL65DP15-042JS |
Frequency(Mhz) | 380-450/450-500 |
Bandwidth(MHz) | 70/50 |
Gain(dBi) | 14/14.5 |
Electrical Downtil(°) | 0 |
Isolation(dB) | ≥25 |
Vertical Beamwidth(°) | 20±2 / 18±2 |
Horizontal Beamwidth(°) | 68±5 / 65±5 |
F/B Ratio(dB) | ≥25 |
VSWR | ≤1.5 |
Nominal Impedance(Ω) | 50 |
Polarization | ±45° |
Maximum Power(W) | 500 |
Dimensions(mm) | 1980*500*128 |
Weight(kg) | 24.3 |
Connector | 2*7/16DIN Female |
Product Introduction
Dual-Band UHF/L-Band Coverage: Operates efficiently across two distinct frequency ranges: 380-450 MHz and 450-500 MHz.
High Performance Gain: Provides excellent signal amplification with a high gain of 14 dBi or 14.5 dBi.
Robust Power Handling: Capable of handling a maximum input power of up to 500 W.
Low VSWR and High Isolation: Ensures efficient power transfer with a VSWR of <=1.5 and strong signal separation with isolation >=25 dB.
Standardized Connectivity: Features two 7/16 DIN Female connectors for reliable system integration.
Application scenarios
Public Safety and Emergency Services: Ideal for high-reliability communication in 380 MHz TETRA and other Public Safety Mobile Radio (PMR) networks.
Utility and Transportation: Used in specialized trunking communication systems for utility companies, railways, and other industrial applications in the 380-500 MHz range.
Base Station Infrastructure: Deployed as the primary antenna for cellular or specialized regional wireless base stations requiring high gain and +/-45 degree polarization.
Fixed Wireless Access (FWA): Suitable for providing stable broadband connectivity in rural areas using low-band frequencies.
Regional Communication Networks: Can be integrated into tailored communication solutions where wide horizontal beamwidth (~68 degrees / 65 degrees) is required.
FAQ
Q:What is the specific model number of this Panel Antenna?
A: The product model number is GL65DP15-042JS.
Q:What type of polarization does the antenna support?
A: The antenna supports +/-45° polarization.
Q:What is the horizontal beamwidth for the lower frequency band (380-450 MHz)?
A: The horizontal beamwidth for the 380-450 MHz band is 68+/-5°.
Q:What are the physical dimensions and weight of the antenna?
A: The dimensions are 1980*500*128 mm, and the weight is 24.3 kg.
Q:Does this antenna offer electrical downtilt?
A: No, the antenna has a fixed electrical downtilt of 0 degrees.
Q:What is the nominal impedance of the antenna system?
A: The nominal impedance is 50 Ohm.
